Data Capture
96

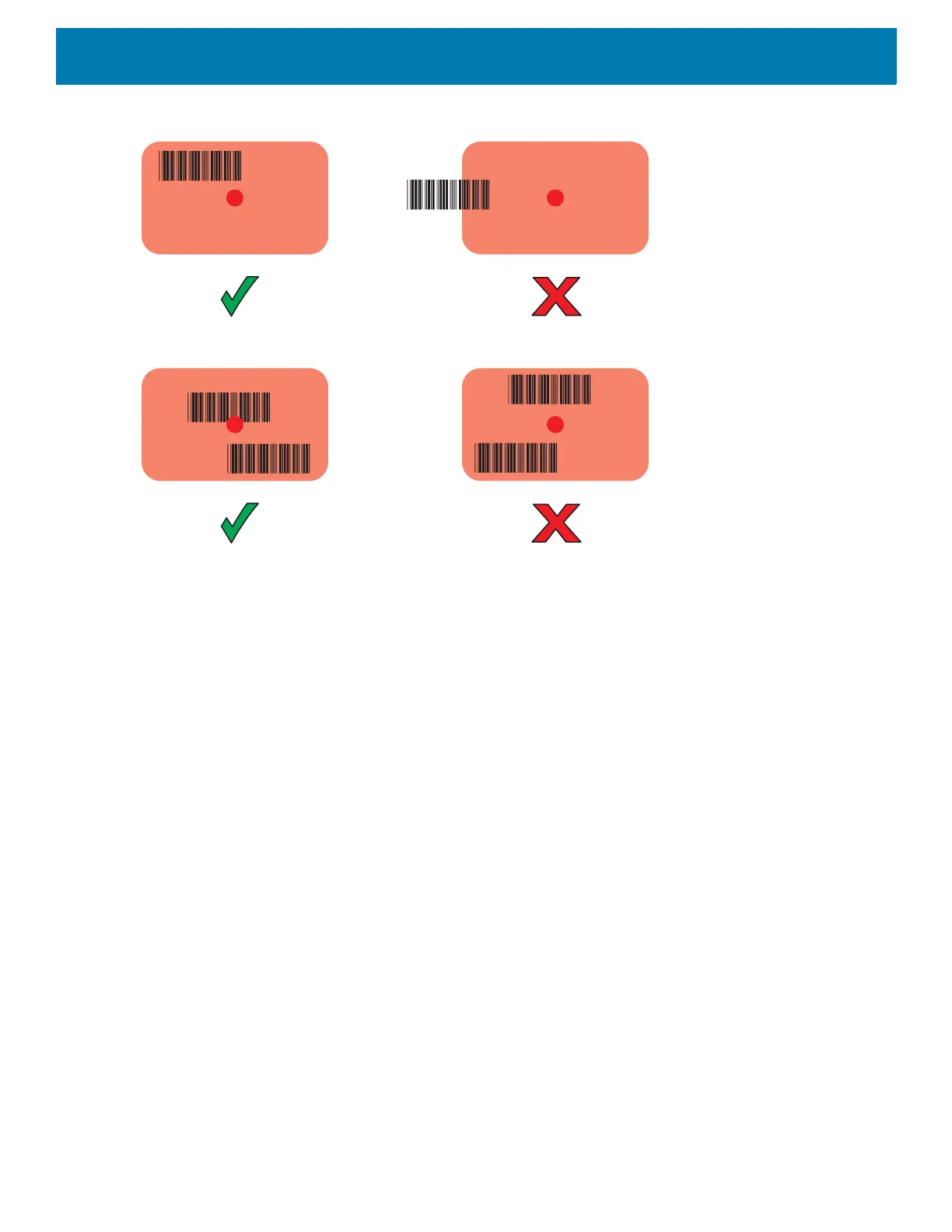

Figure 69 DS3678-SR Aiming Pattern
Figure 70 DS3678-SR Pick List Mode with Multiple Bar Codes in Aiming Pattern
4. The captured data appears in the text field.
Connecting an RS-232 Scanner
To connect an RS-232 scanner:
1. On the bottom of the VC8300, remove the connector cover from either the COM1 or COM2 port.
2. Connect the scanner cable RS-232 connector to either the COM1 or COM2 port and to the scanner.
