MT4200 Quick Release Mount
The MT4200 Quick Release Mount allows for removal without the need for tools.
Assembling MT4200
To assemble the MT4200 Quick Release Mount:
1. Place the back mounting plate hooks into the base plate slots.
2. Snap spring clips into place.

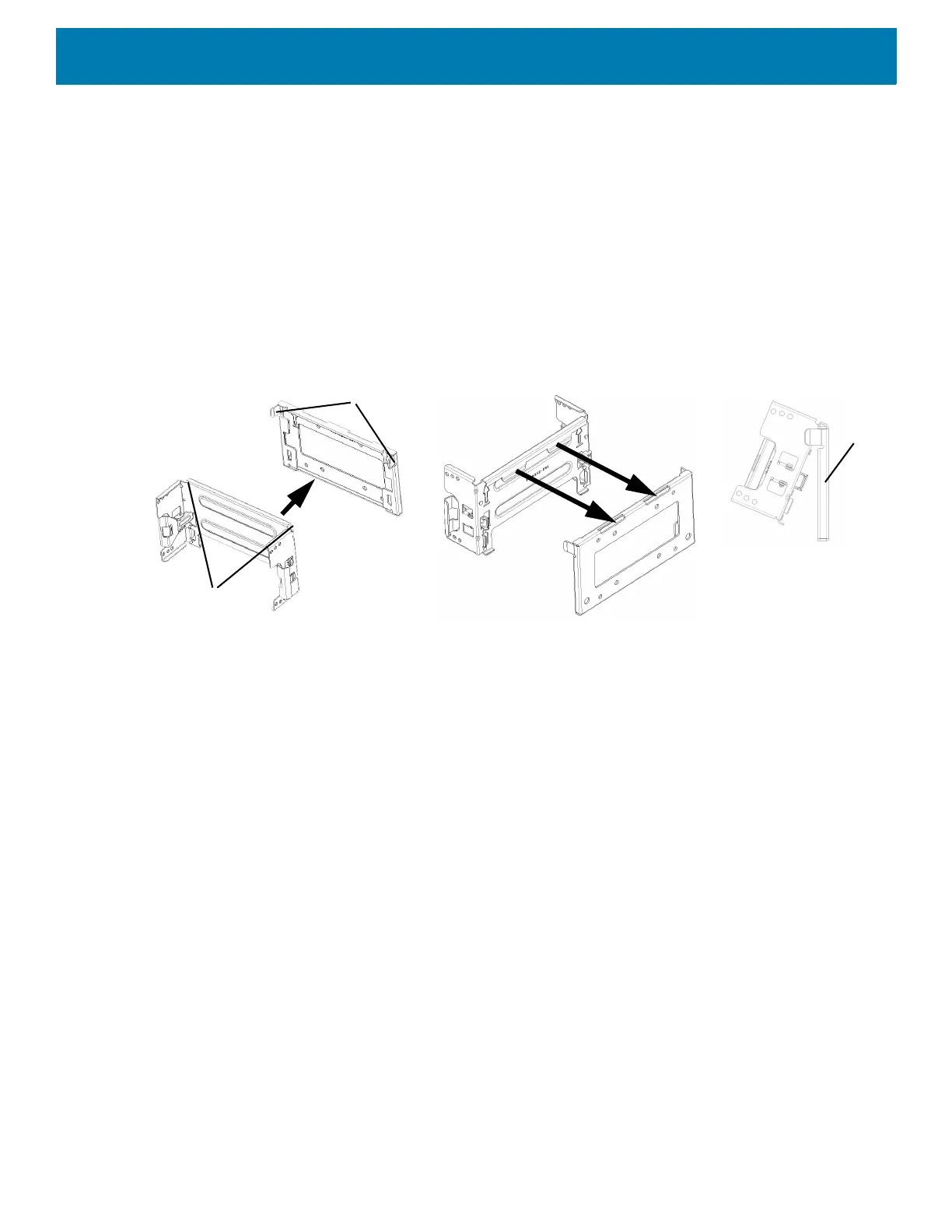

Figure 92 MT4200 Quick Release Mount Assembly
Spring
Clip
MT4200
Back Mounting
Plate Hooks
MT4205 Base
Plate Slots
