Zebra VC8300 User Manual

Apps
85

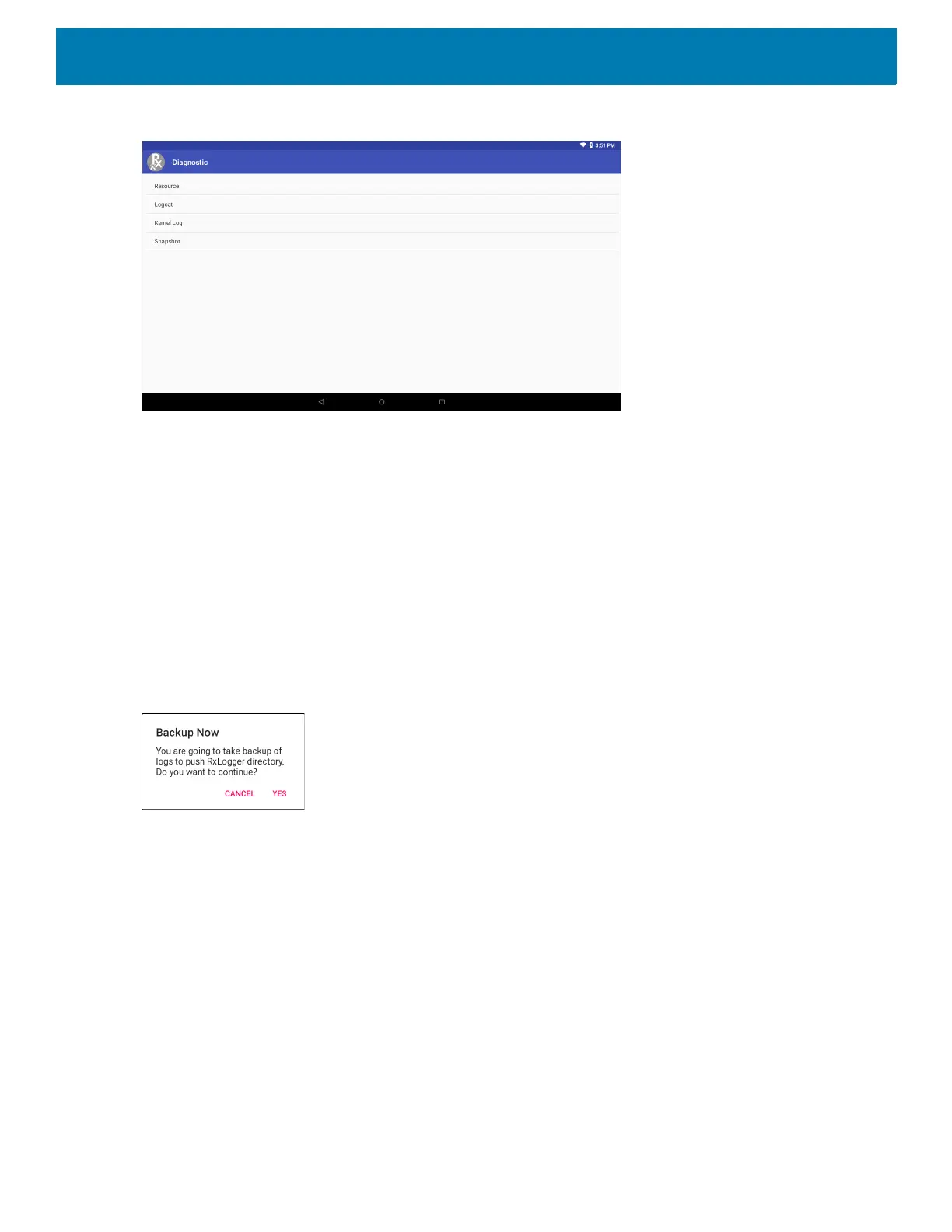

Figure 54 Diagnostic Window
• Resource - View all resources.
• Logcat - View all the Logcat files. Messages are colored according to flags. Verbose messages is orange
text, Assert messages are in brown text, Fail messages are in purple text, Warning messages are in yellow
text, information messages are in blue text, debug messages are in green text, and error messages are in
red.
• Kernel Log - View all the Kernel Logs.
• Snapshot - View all the Snapshot.
Backup
RxLogger Utility allows the user to make a zip file of the RxLogger folder in the device, which by default
contains all the RxLogger logs stored in the device.
Figure 55 Backup Message
Touch Yes to save the backup data.
Archiving
The user can view all the RxLogger logs stored in the RxLogger directory by default. These is not for
live-viewing logs.

Zebra VC8300 Specifications

General

Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Operating system version	8.1
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Speakers	Mono
RS-232 input ports	2
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Operating temperature (T-T)	-30 - 50 °C
Battery capacity	- mAh
Product color	Black
Keyboard layout	QWERTY
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	90 mm
Width	276 mm
Height	238 mm
Weight	3700 g
