Zebra VC8300 User Manual

Installation
33
When the vehicle is not in motion, the switch opens the circuit, preventing data packets from being sent or
received. The computer detects that the circuit is open and turns on the screen.

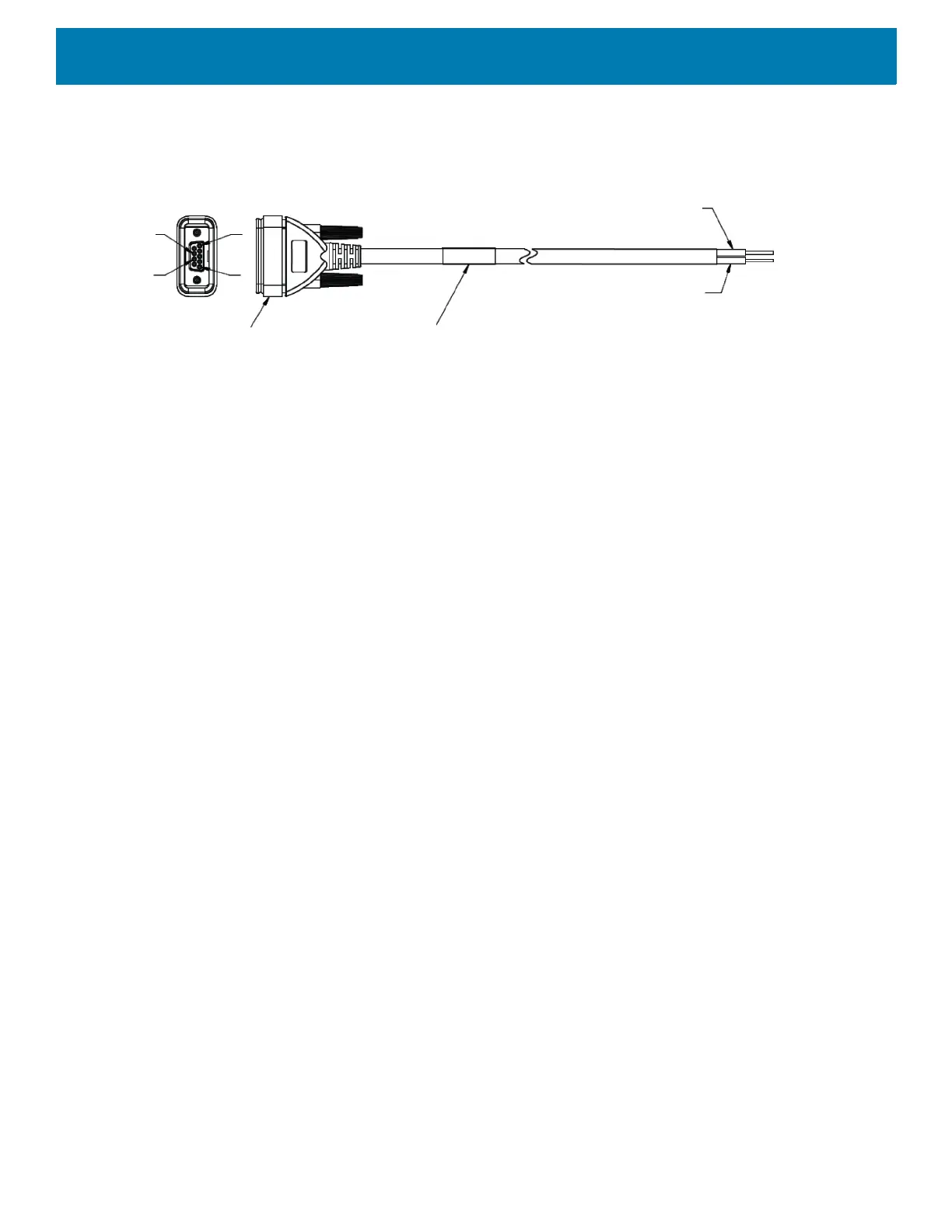

Figure 13 Screen Blanking DB9 Pin Configuration
Part Number Label
DB9 (female) Connector
Pin 8
Pin 7
8
7
5
1
Unterminated End

Zebra VC8300 Specifications

General

Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Number of cores	8
Processor model	660
Processor family	Snapdragon
Processor frequency	2.2 GHz
Operating system version	8.1
Operating system installed	Android
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Speakers	Mono
RS-232 input ports	2
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	1
Operating temperature (T-T)	-30 - 50 °C
Battery capacity	- mAh
Product color	Black
Keyboard layout	QWERTY
International Protection (IP) code	IP66
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	90 mm
Width	276 mm
Height	238 mm
Weight	3700 g
