2N TELEKOMUNIKACE a.s., www.2n.cz 50/198

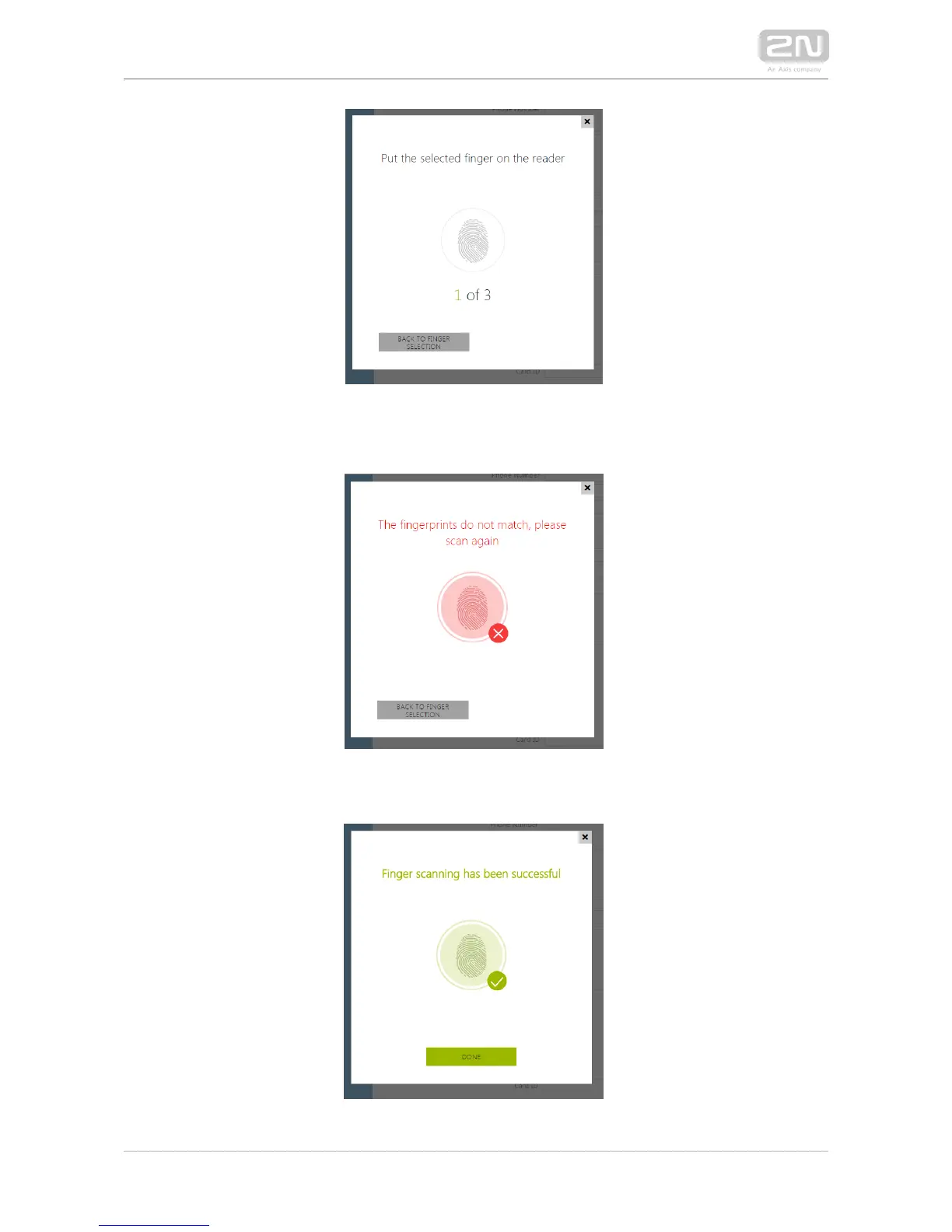

) Repeat the process if any inconsistency occurs during fingerprint reading.6

7) If fingerprint scanning is successful, click DONE to confirm the settings.
