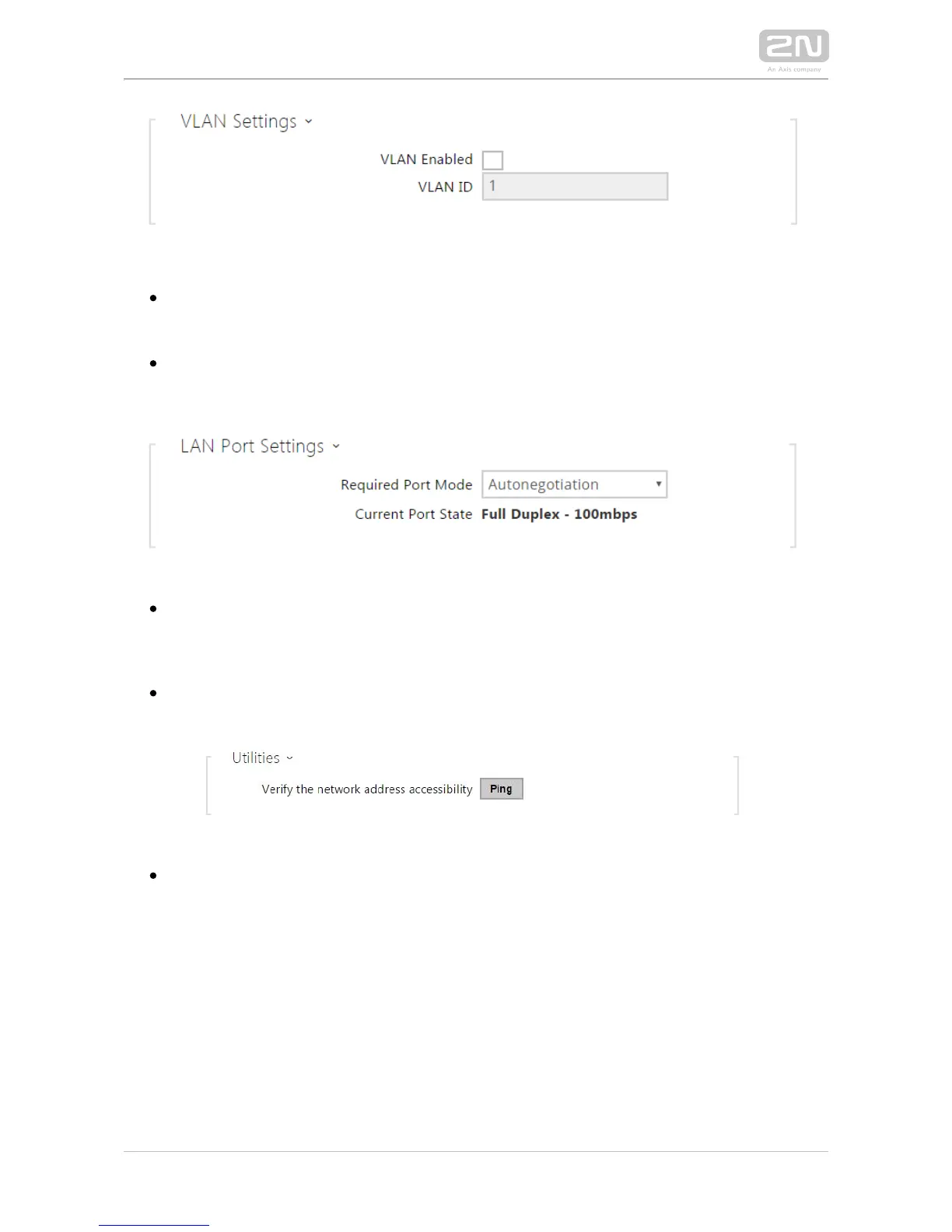

VLAN enabled – enable the virtual network (VLAN) support (according to
recommendation 802.1q). Set the virtual network ID too to make the function
work properly.
– select a virtual network ID in the range of 1-4094. The device shall VLAN ID
receive only the packets tagged with this ID. A wrong setting may result in a
connection loss and need to reset the device to factory values.
Required port mode – set the preferred network interface port mode:
Autonegotiation or Half Duplex – 10 mbps. The lower bit rate of 10 mbps may be
necessary if the used network infrastructure (cabling) is not reliable for the
100mbps traffic.
– current network interface port state (Half or Full Duplex – 10 Current port state
mbps or 100 mbps).
– verify the network address Verify the network address accessibility
accessibility via the Ping command in standard operating systems. Press Ping to
display a dialogue, enter the IP address/domain name and click Ping to send test
data to this address. If the selected IP address/domain name is invalid, a warning
is displayed and Ping remains inactive until the given IP address becomes valid.
The function progress and result are also displayed in the dialogue. Failed means
either inaccessibility of the given IP address within 10 seconds or inability to
translate the domain name into an address. If a valid response is received, the IP
address from which the response came and the response waiting time in
m i l l i s e c o n d s a r e d i s p l a y e d .
Repress Ping to send another query to the same address.
