Chapter 7 167
Setting Up the Display of Measurement Results
Manual Scale Setting (for measurements other than COMPLEX Z-Y)
7. Setting Up the Display of
Measurement Results

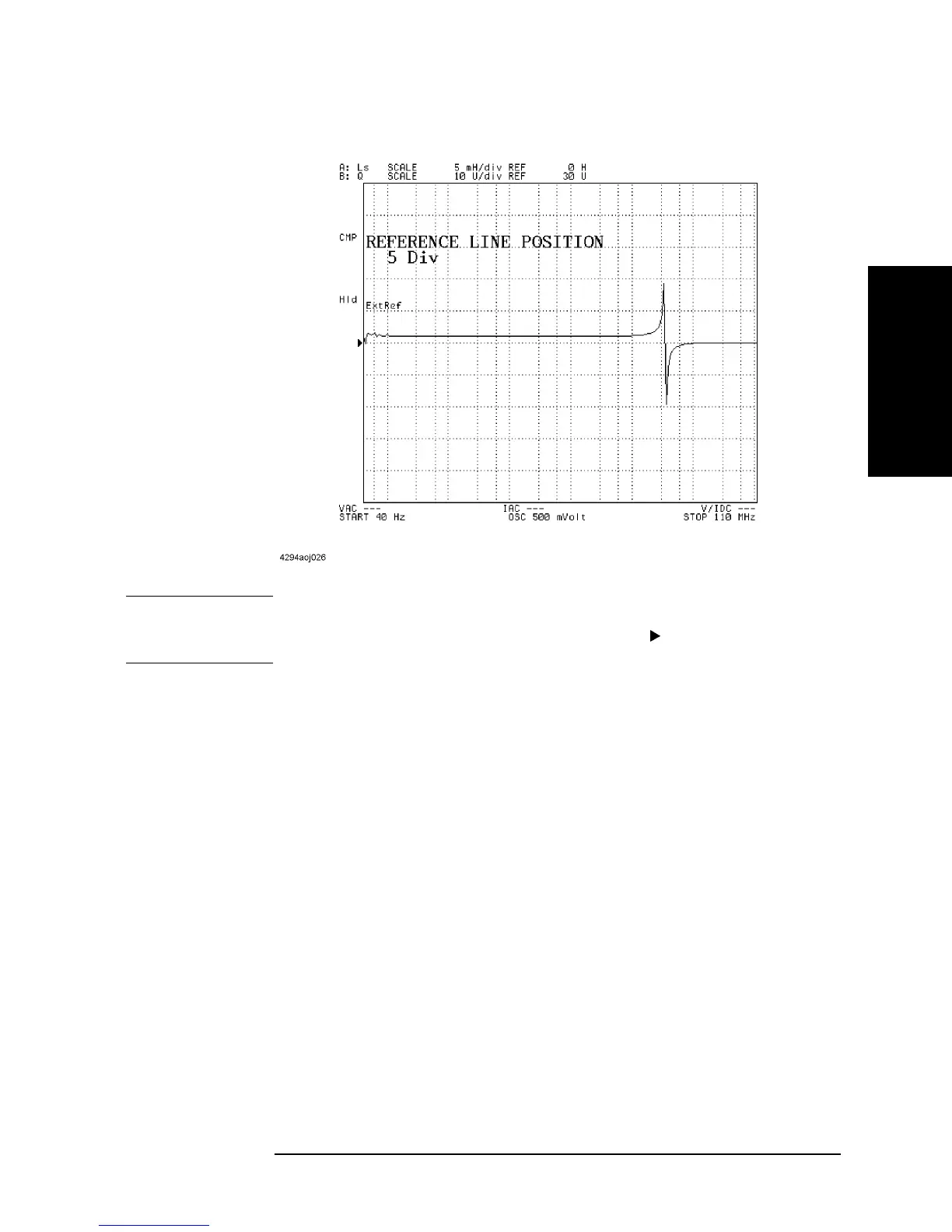

Figure 7-7 Positioning the reference line
NOTE The reference line is a horizontal dotted line displayed in the same color as the
corresponding trace. At the left end of the reference line, a “ ”symbol is displayed in the
same color.
Step 5. Press the
REFERENCE VALUE key. The Parameter Setting field in the upper left area of
the screen indicates the reference value currently in effect, that is, the value of the
measurement parameter that corresponds to the current reference line position.
Step 6. Use the keys or rotary knob of the ENTRY block in one of the following ways to specify
the reference value.
• Enter the desired value with the numeric keys (
[0] to [9] and [.]) and then press one of
the unit keys (
[G/n], [M/m], [k/m], or [´1]).
• Turn the rotary knob (
m
mm
m) until the desired value is set.
• Press the step keys ([][¯]) to set the desired value.
To Next Page
