168 Chapter 7
Setting Up the Display of Measurement Results
Manual Scale Setting (for measurements other than COMPLEX Z-Y)

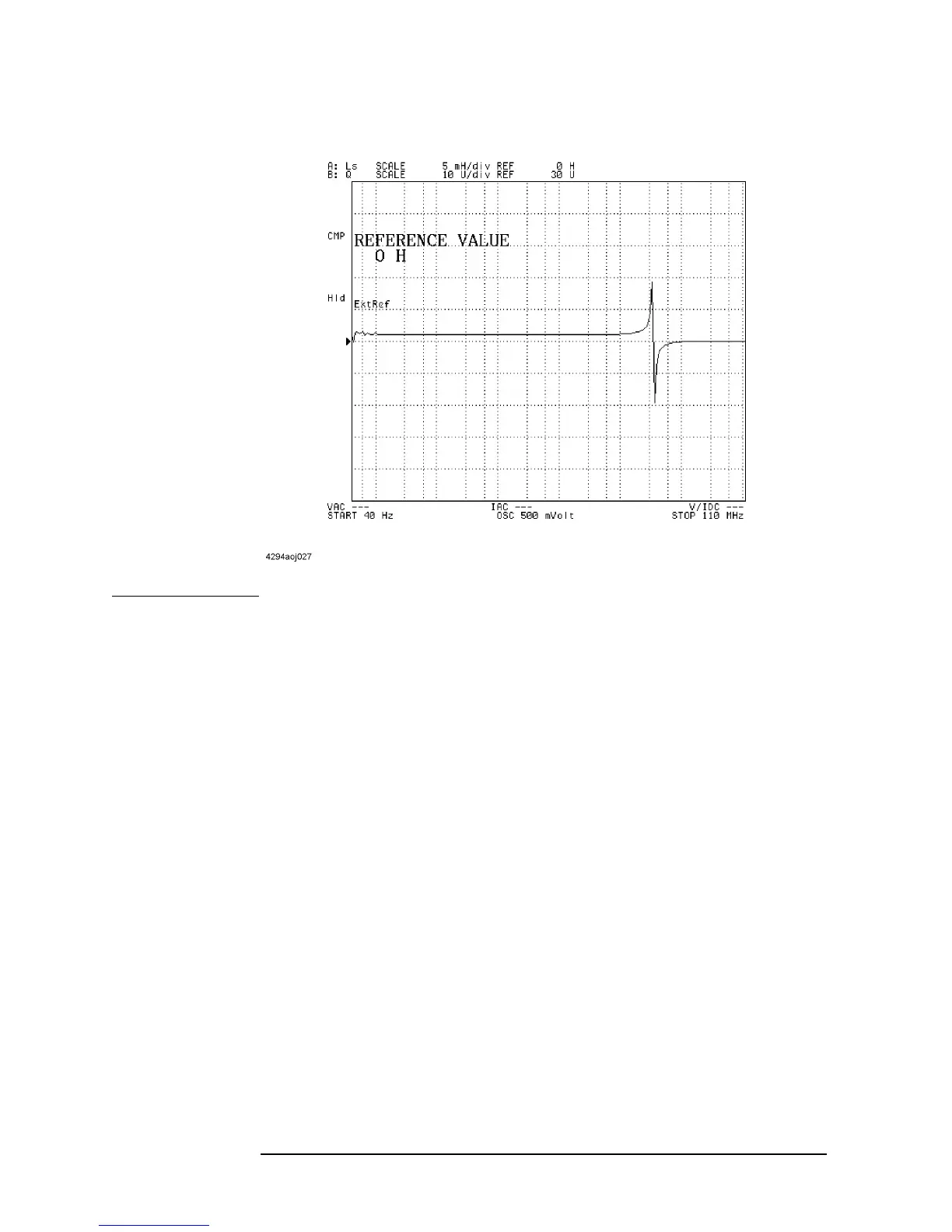

Figure 7-8 Setting the reference value
NOTE Alternatively, when you have the main marker displayed on the trace, you can press the
MKR ® REFERENCE key to use the value at the marker position as the reference value.
Thus, you can change the trace scale by placing the reference line at the position indicated
by the main marker. The
MKR® REFERENCE key is also accessible from the Marker ®
menu, which is displayed when you press the
[Marker ®] key.
Step 7. Press the SCALE/DIV key. The Parameter Setting field in the upper left area of the screen
indicates the scale per deviation currently in effect.
Step 8. Use the keys or rotary knob of the ENTRY block in one of the following ways to specify
the scale per division.
• Enter the desired value with the numeric keys (
[0] to [9] and [.]) and then press one of
the unit keys (
[G/n], [M/m], [k/m], or [´1]).
• Turn the rotary knob (m
mm
m) until the desired value is set.
• Press the step keys ([][¯]) to set the desired value.
