6.2 Explanation of Windows
6-35
6
How to Operate Sampling Scope
Clicking NRZ at Measure Setup displays the Setup (NRZ
Amplitude/Time) dialog box.

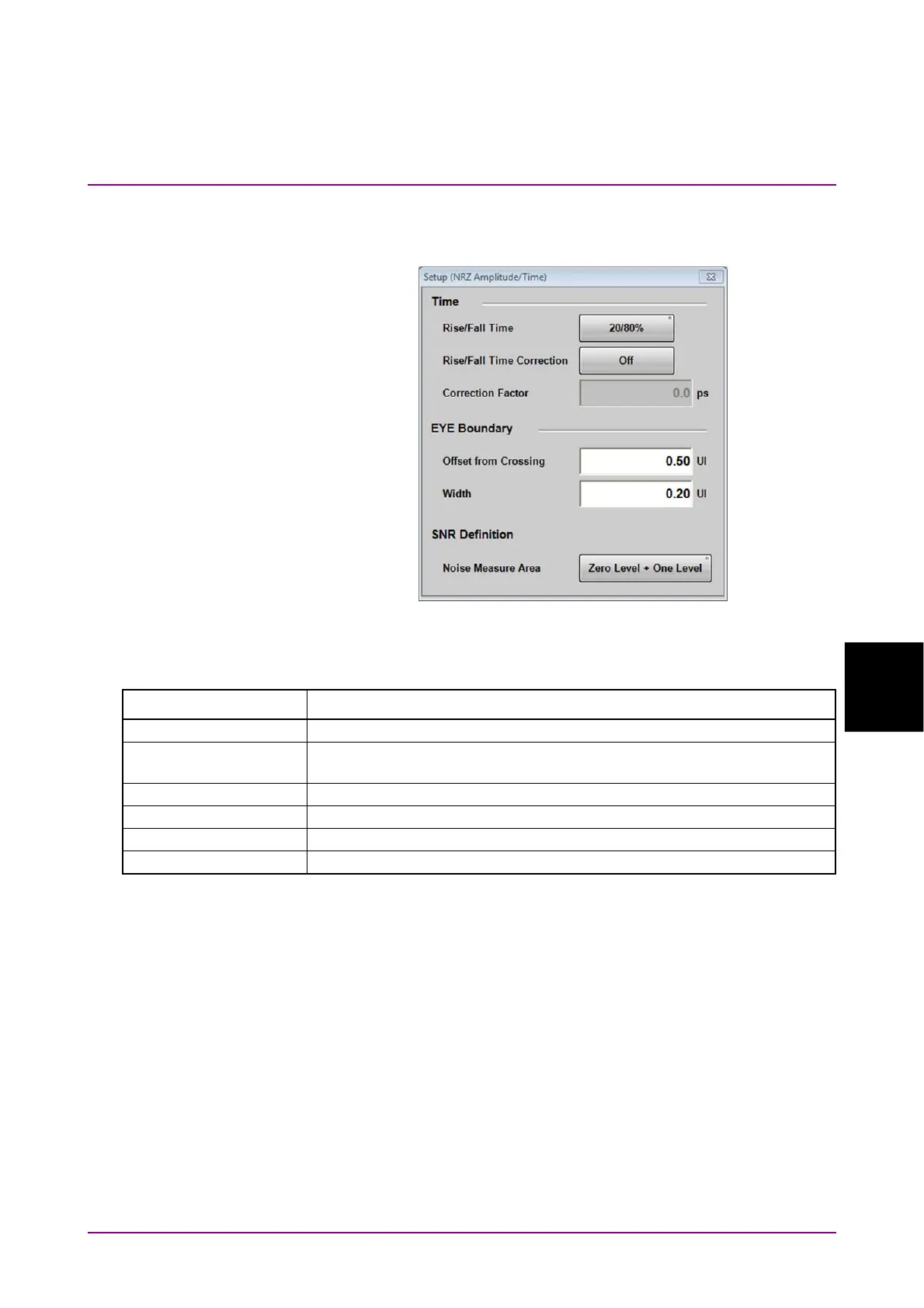

Figure 6.2.4-3 Setup (NRZ Amplitude/Time) Dialog Box
Table 6.2.4-2 Items of Setup (NRZ Amplitude/Time) Dialog Box
Item Description
Rise/Fall Time Sets the position to measure Rise Time and Fall Time.
Rise/Fall Time
Correction
When setting to On, the Rise Time and Fall Time are corrected. *1 is
displayed in the measured values of Rise Time and Fall Time.
Correction Factor Sets the correction factor for Rise Time and Fall Time.
Offset from Crossing* Sets the center position to measure One Level and Zero Level.
Width* Sets the width for measuring One Level and Zero Level.
Noise Measure Area Sets the position to measure noises of SNR.
*: Refer to “Figure 6.9.1.1-2 Setting Item of EYE Boundary”.
