Chapter 6 How to Operate Sampling Scope
6-38
*1: This is displayed when the installed scope is other than
MP2110A-021.
*2: The settings are valid when all of the following conditions are met:
Item Selection is Item Type: PAM4.
Sampling Mode is Coherent Eye
Test Patterns other than Variable
The following figure shows the positions of Pmax and Pmin when Peak
Power Hit Ratio is set to 1%.

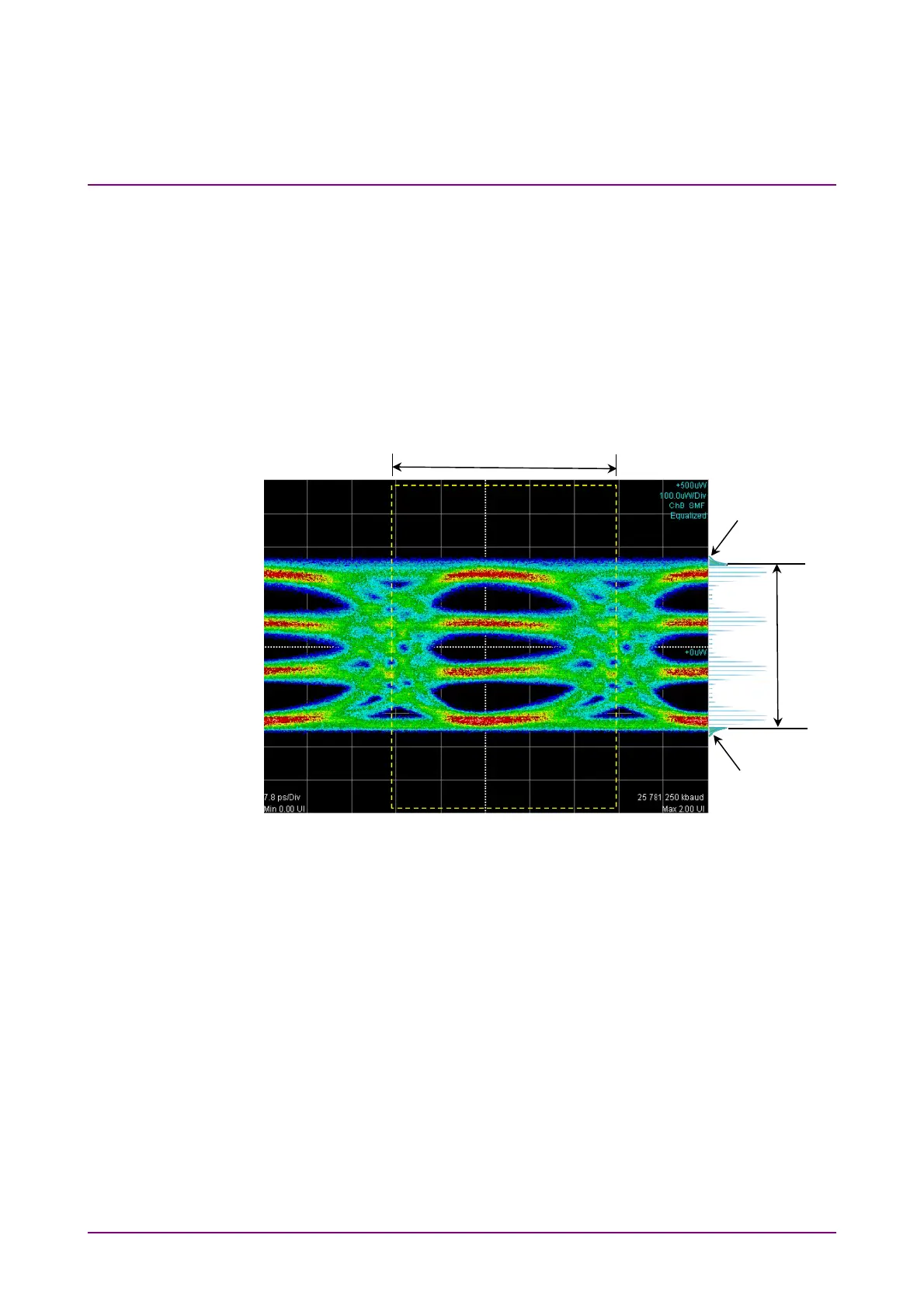

Figure 6.2.4-6 How to Determine Peak Power
Peak
Power
Pmin
Pmax
1% of the
number of
samples
1% of the
number of
sam
les
1 UI
