Chapter 1 Before Use
HA-8190V 1-18

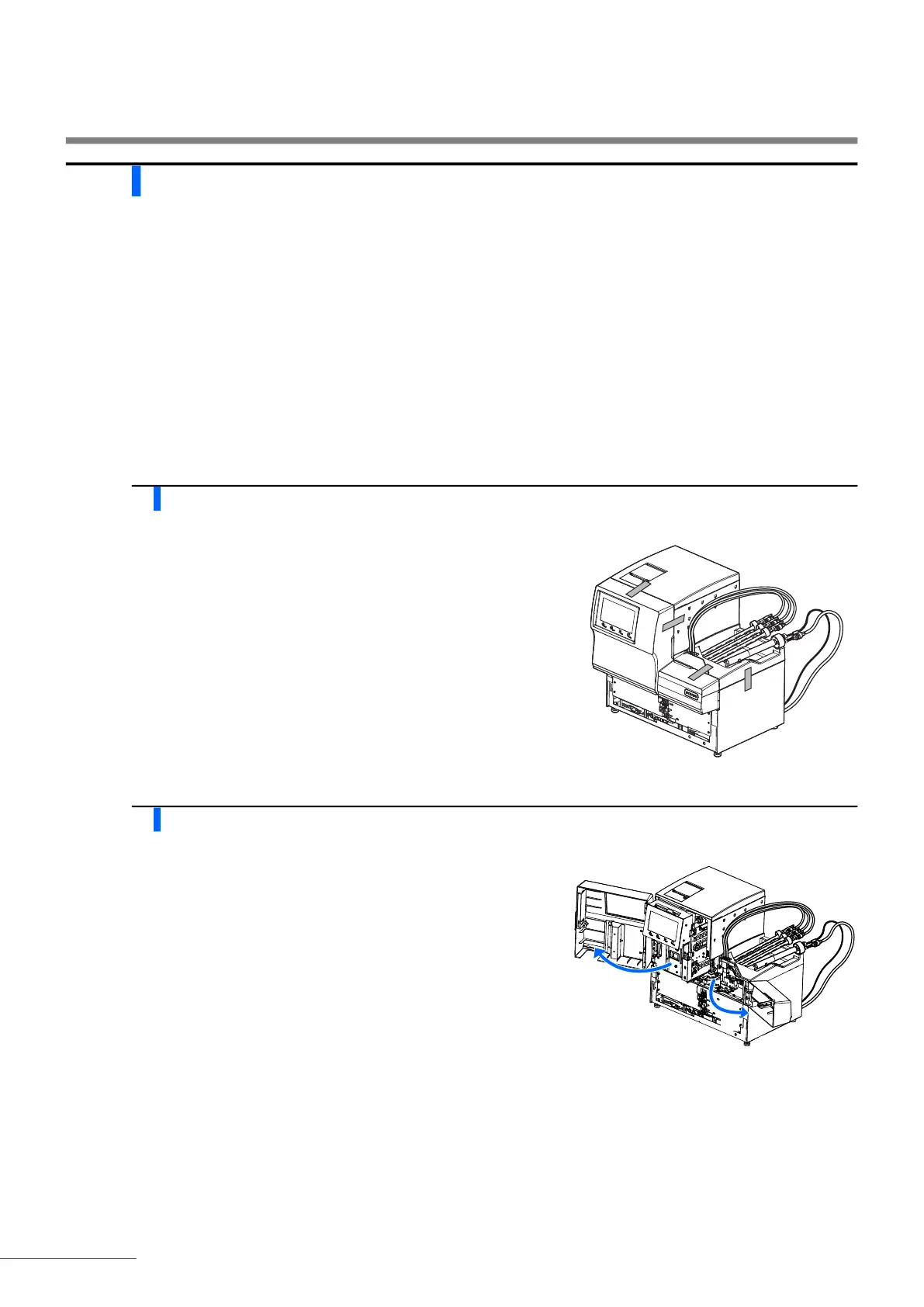

1.4.2 Unlocking the Instrument
To prevent the instrument from being damaged during transport, various parts are fixed in place before shipping from
the factory. Remove the fixing tape and brackets before installing the instrument. Read “1.4.1. Precautions in
Instrument Installation” on page 1-16 before installing the instrument.
Prepare: Phillips screwdriver
1 Remove the fixing tape.
a Remove the fixing tape from the printer cover, front cover,
maintenance cover and side cover.
2 Unlock the nozzle drive unit.
a Open the front cover.
b Open the maintenance cover.
REFERENCE:
Keep the removed fixing brackets and screws in the accessory case. These parts should be reused when
transporting the instrument.
To Next Page
