HA-8190V 1-23

1.4 Installation

1.4.4 Checking the Tubes of the Drain Pinch Valves

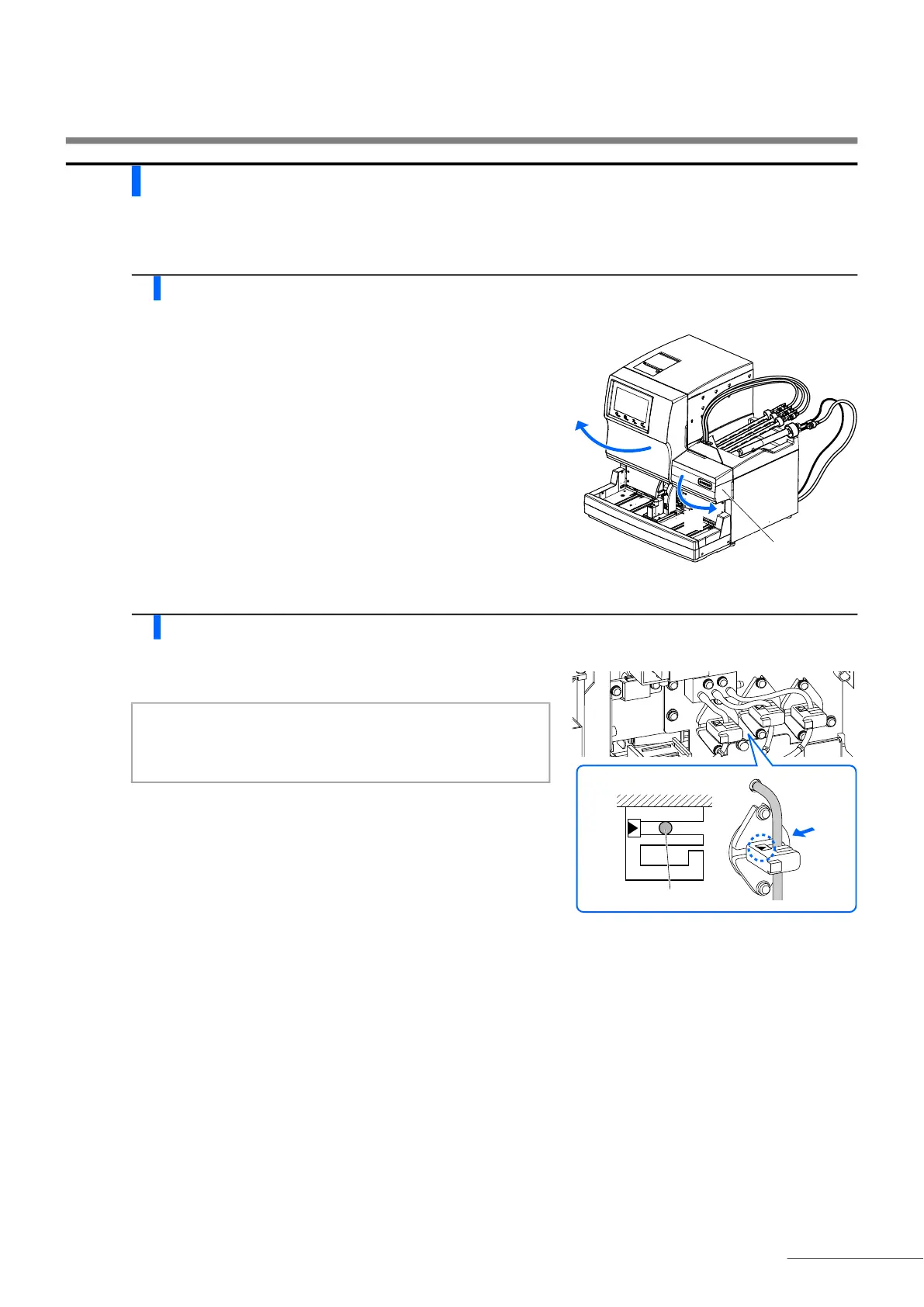

1 Open the maintenance cover.

a Open the front cover.

b Open the maintenance cover.

2 Check the tubes.

a Check that the three tubes are pinched in the rear hooks.

b Close the maintenance cover.

Maintenance

cover

Tube

Seen from above

NOTE:

There are two hooks on each valve. Always check that the

tube is pinched in the REAR hook with an arrow mark.
