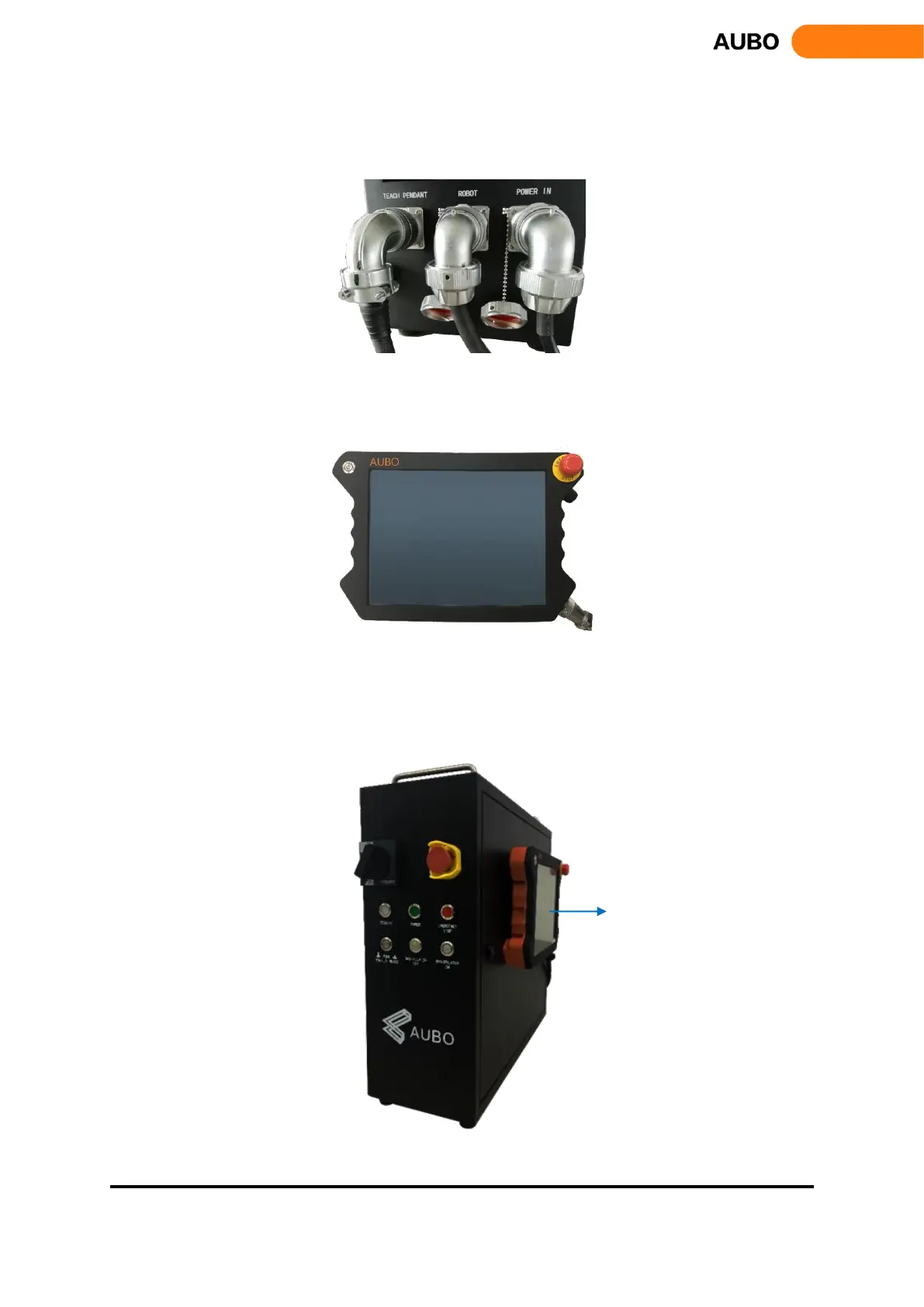

Connect the elbow plug to the control box, as shown in figure 7.6. Elbow plug has positioning groove,
please pay attention to the direction.
Figure 7.6 Connect aviation elbow plug cable to control box
Connect the straight plug to the teach pendant, as shown in figure 7.7.
Figure 7.7 Connect straight aviation plug to teach pendant
Fixed the teach pendant on the side of the control box when you are not using it to avoid drop damage, as
shown in figure 7.8.
Figure 7.8 Suspension of teach pendant
