11.2 TR-104
The device supports TR-104 for configuration. This support is for the SIP (VoIP) application
layer and applies to FXS interfaces (lines) only. TR-104 defines a "data model" template for
TR-069 enabled devices. The "data model" that is applicable to the AudioCodes device is
defined in the DSL Forum TR-104 – "DSLHome™ Provisioning Parameters for VoIP CPE"
at http://www.broadband-forum.org/technical/download/TR-104.pdf.
The hierarchical tree structure of the supported TR-104 objects is shown below:

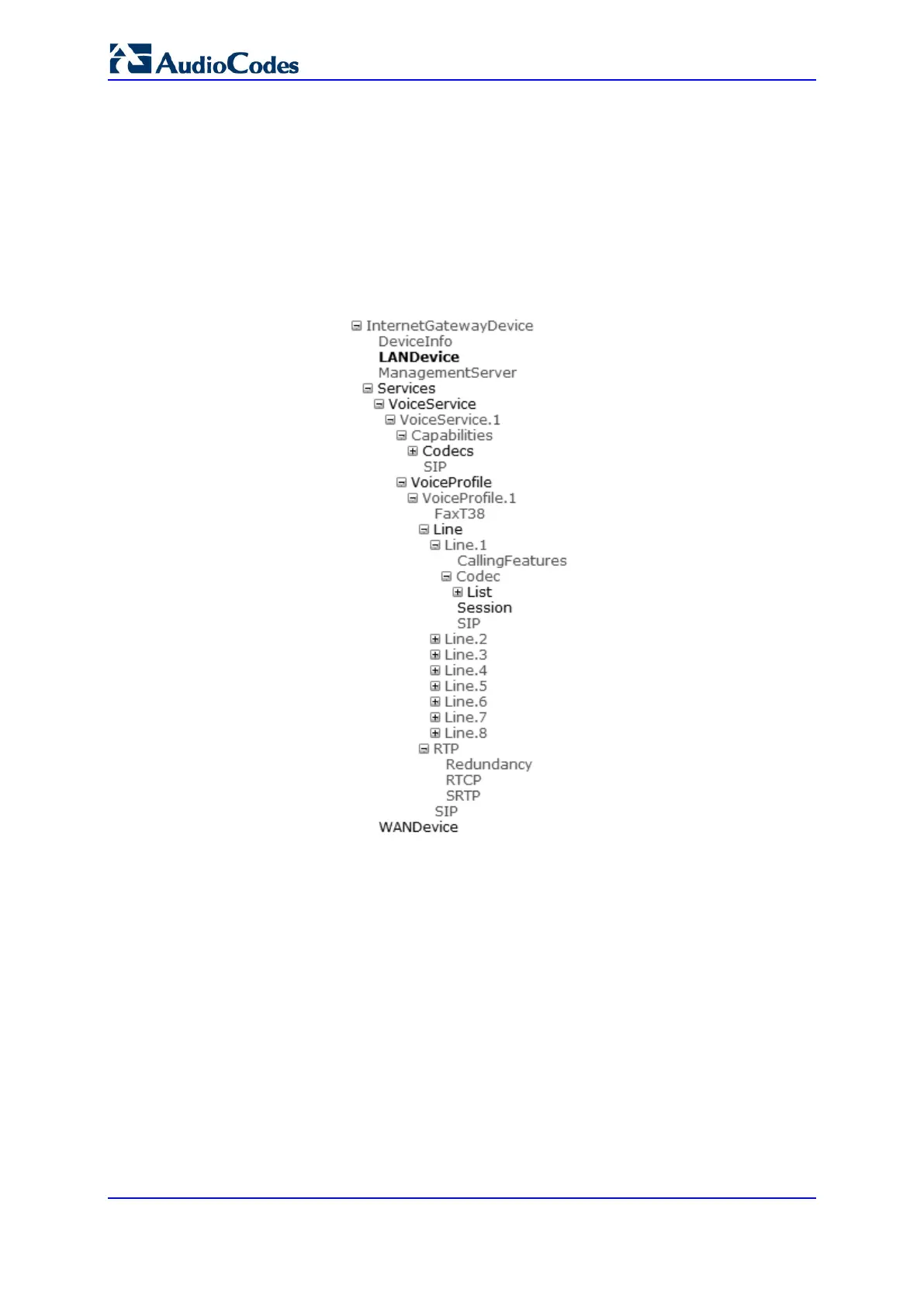

Figure 11-4: Hierarchical Tree Structure of TR-104 Objects

InternetGatewayDevice.Services.VoiceService: Top-level object.

InternetGatewayDevice.Services.VoiceService.1.Capabilities: (Read-Only) Displays
the overall capabilities of the device.
• InternetGatewayDevice.Services.VoiceService.1.Capabilities.Codecs: (Read-
Only) Lists supported codecs (according to devices installed Software Feature
Key).
• InternetGatewayDevice.Services.VoiceService.1.Capabilities.SIP: (Read-Only)
Displays various SIP settings such as SIP transport type.

InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1: Corresponds to one
or more FXS lines that share the same basic configuration:
• InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.FaxT38:
Configures fax T.38 relay.
• InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.Line:
Corresponds to an FXS line (as configured in the Trunk Group table). It enables
and configures each FXS line (number).
