8.2 Viewing the Home Page
The Home page is displayed when you access the device's Web interface. The Home page
provides you with a graphical display of the device's front panel, showing color-coded
status icons for various operations device.
 To access the Home page:

On the toolbar, click the Home icon.

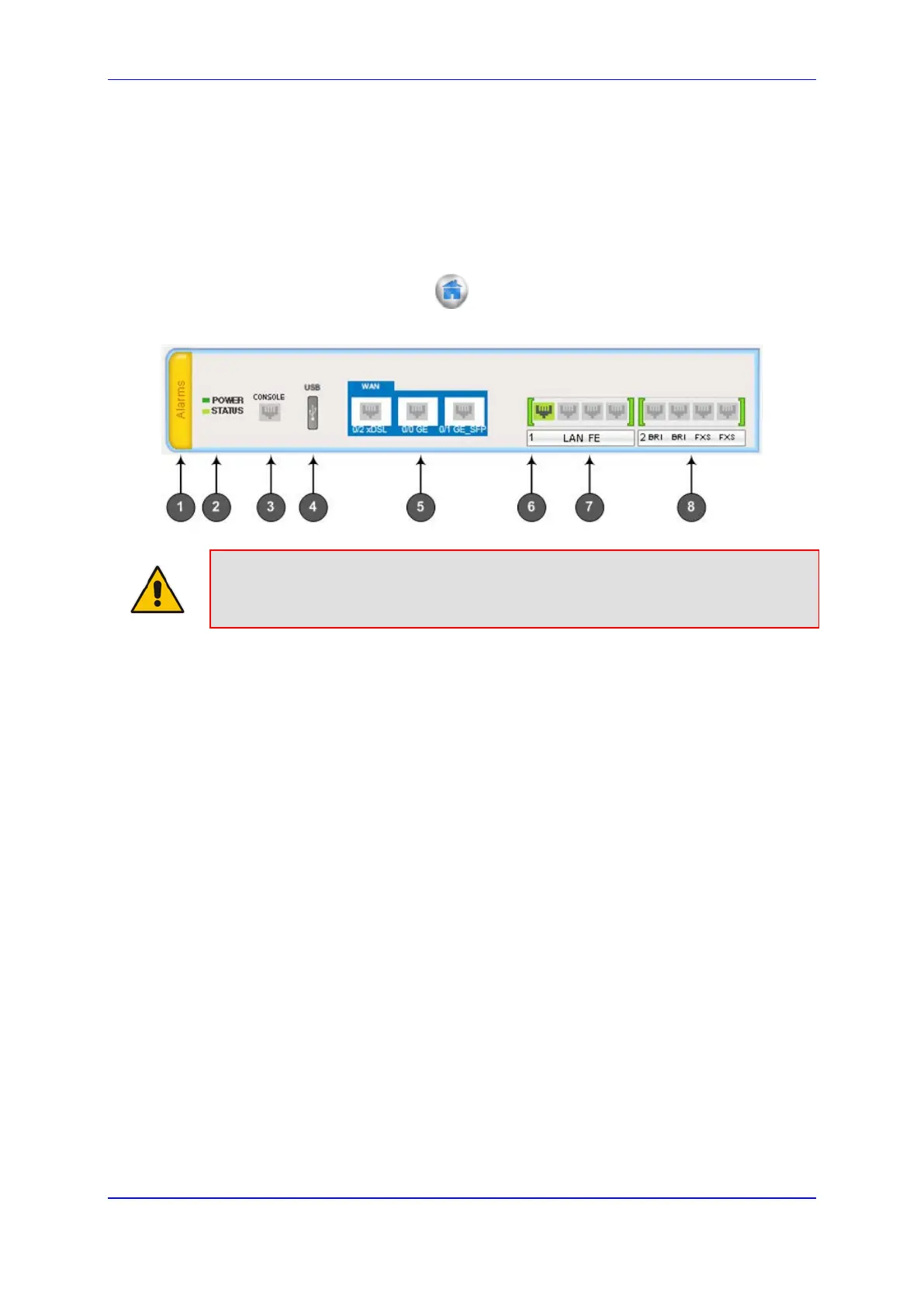

Figure 8-16: Graphical Display of Device in Home Page
Note: The displayed number and type of telephony interfaces, LAN interfaces and
WAN interfaces depends on the ordered hardware configuration.
In addition to the color-coded status information depicted on the graphical display of the
device, the Home page displays various read-only information in the General Information
pane:

IP Address: IP address of the device

Subnet Mask: Subnet mask address of the device

Default Gateway Address: Default gateway used by the device

Digital Port Number: Number of digital PRI ports (depending on ordered hardware
configuration)

BRI Port Number: Number of BRI ports (depending on ordered hardware
configuration))

Analog Port Number: Number of analog (FXS and FXO) ports (depending on ordered
hardware configuration)

Firmware Version: Software version running on the device

Protocol Type: Signaling protocol currently used by the device (i.e. SIP)

Gateway Operational State:
• "LOCKED": device is locked (i.e. no new calls are accepted)
• "UNLOCKED": device is not locked
• "SHUTTING DOWN": device is currently shutting down
To perform these operations, see ''Basic Maintenance'' on page 603.
The table below describes the areas of the Home page.
