AudioCodes Mediant 500L MSBR

User's Manual 62 Document #: LTRT-10466
Mediant 500L MSBR

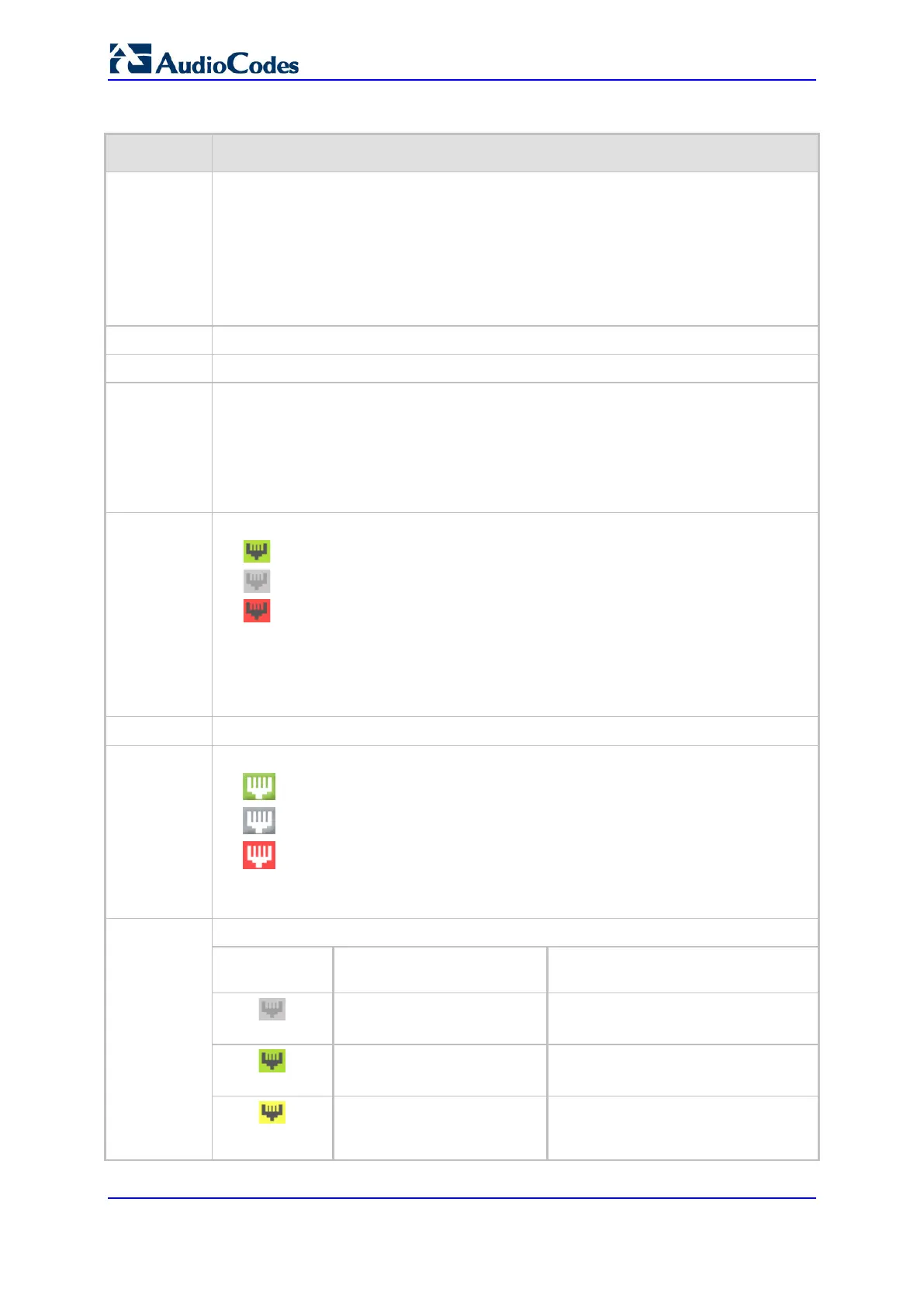

Table 8-7: Home Page Description
Item # Description
1 Displays the highest severity of an active alarm raised (if any) by the device:
 Green = No alarms
 Red = Critical alarm
 Orange = Major alarm
 Yellow = Minor alarm
To view active alarms, click the Alarms area to open the Active Alarms page (see
Viewing Active Alarms on page 681).
2 STATUS LED displaying the operating status.
3 RS-232 interface port (RJ-45).
4 USB port for 3G cellular WAN modem (primary or backup WAN) or USB storage
services.
 Gray - USB 3G cellular modem is not configured.
 Blue - USB 3G cellular modem is in standby mode (backup mode).
 Green - USB 3G cellular modem is active.
 Red - USB 3G cellular modem is not active.
5 WAN status ports:
 (green): Link is working
 (gray): Link is not configured
 (red): Link error
Depending on ordered hardware configuration, the WAN ports can be:
 WAN GE: Gigabit Ethernet copper
 xDSL: ADSL2+ / VDSL2
 SFP: optical fiber
6 Module number of LAN or telephony interfaces
7 Ethernet LAN module with port status icons:
 (green): Link is working
 (gray): Link is not configured
 (red): Link error
To view detailed port information, click the port icon (see Viewing Ethernet Port
Information on page 680).
8 Port (trunk or channel) status icon.
Icon Trunk Description
(Digital Module)
Channel Description
(Analog Modules)
(gray)
Disable: Trunk not
configured (not in use)
Idle: Channel is currently on-hook
(green)
Active - OK: Trunk
synchronized
Call Connected: Active RTP stream
(yellow)
RAI Alarm: Remote Alarm
Indication (RAI), also known
as the Yellow Alarm
-
