24.2 TDM and Timing
This section describes the configuration of the TDM and clock timing parameters.
24.2.1 Configuring TDM Bus Settings
The TDM page allows you to configure the device's Time-Division Multiplexing (TDM) bus
settings. For a description of these parameters, see ''PSTN Parameters'' on page 934.
 To configure the TDM Bus settings:
1. Open the TDM page (Configuration tab > VoIP menu > TDM > TDM Bus Settings).

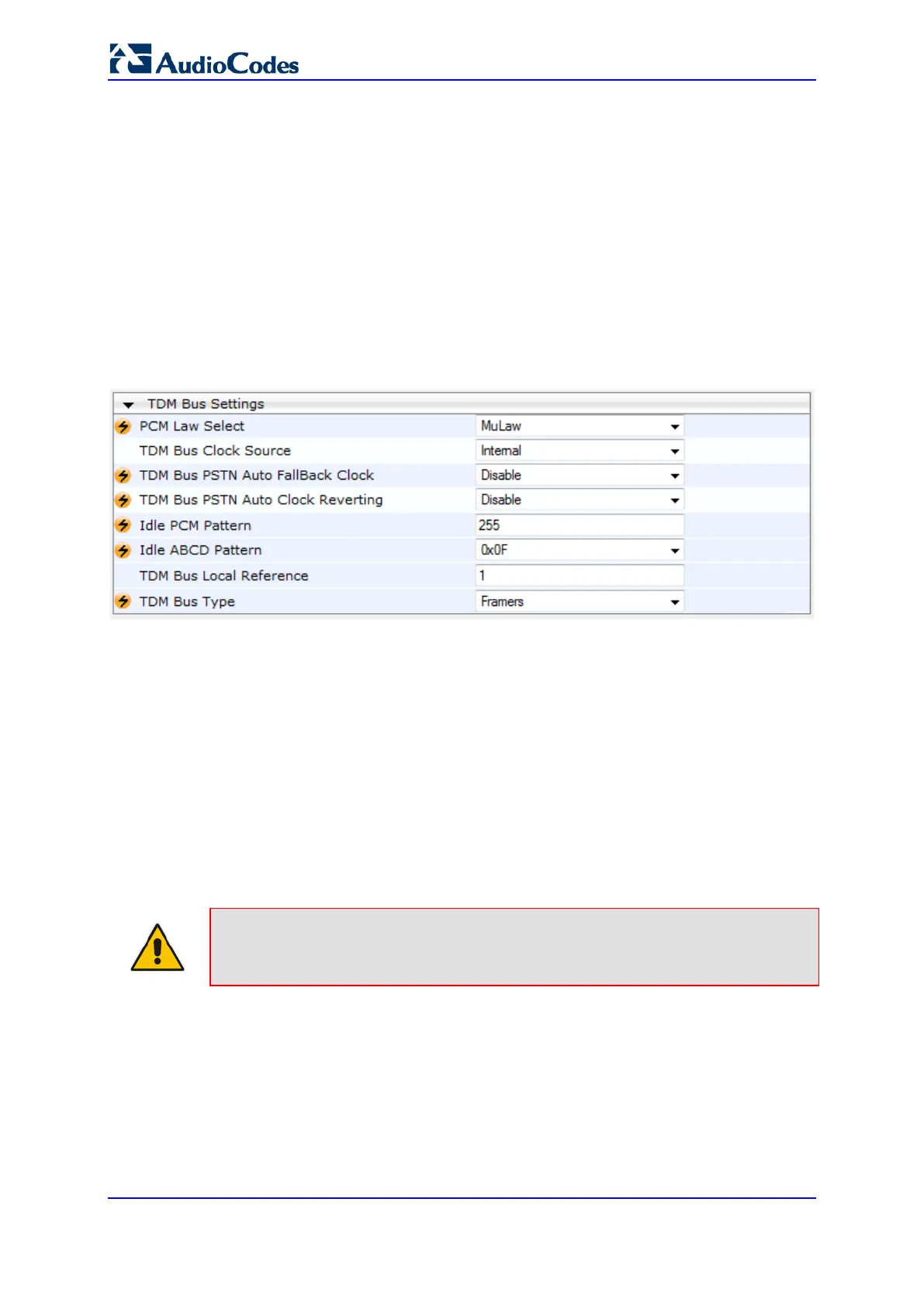

Figure 24-2: TDM Bus Settings Page
2. Configure the parameters as required.
3. Click Submit.
4. Save the changes to flash memory, see ''Saving Configuration'' on page 606.
24.2.2 Clock Settings
In a traditional TDM service network such as PSTN, both ends of the TDM connection must
be synchronized. If synchronization is not achieved, voice frames are either dropped (to
prevent a buffer overflow condition) or inserted (to prevent an underflow condition). In both
cases, connection quality and reliability is affected.

PSTN line clock (see ''Recovering Clock from PSTN Line'' on page 363)

Internal clock (see ''Configuring Internal Clock as Clock Source'' on page 363)
Note: When the device is used in a ‘non-span’ configuration, the internal device clock
must be used (as explained above).
