User's Manual 53. Performance Monitoring
Version 6.8 683 Mediant 500L MSBR
53 Performance Monitoring
This section describes how to view performance monitoring.
53.1 Viewing MOS per Media Realm
The MOS Per Media Realm page displays statistics on Media Realms (configured in
''Configuring Media Realms'' on page 275). This page provides two graphs:
Upper graph: displays the Mean Opinion Score (MOS) quality in RTCP data per
selected Media Realm.
Lower graph: displays the bandwidth of transmitted media (in Kbps) in RTCP data per
Media Realm.
To view the MOS per Media Realm graph:
1. Open the MOS Per Media Realm page (Status & Diagnostics tab > Performance
Monitoring menu > MOS Per Media Realm).

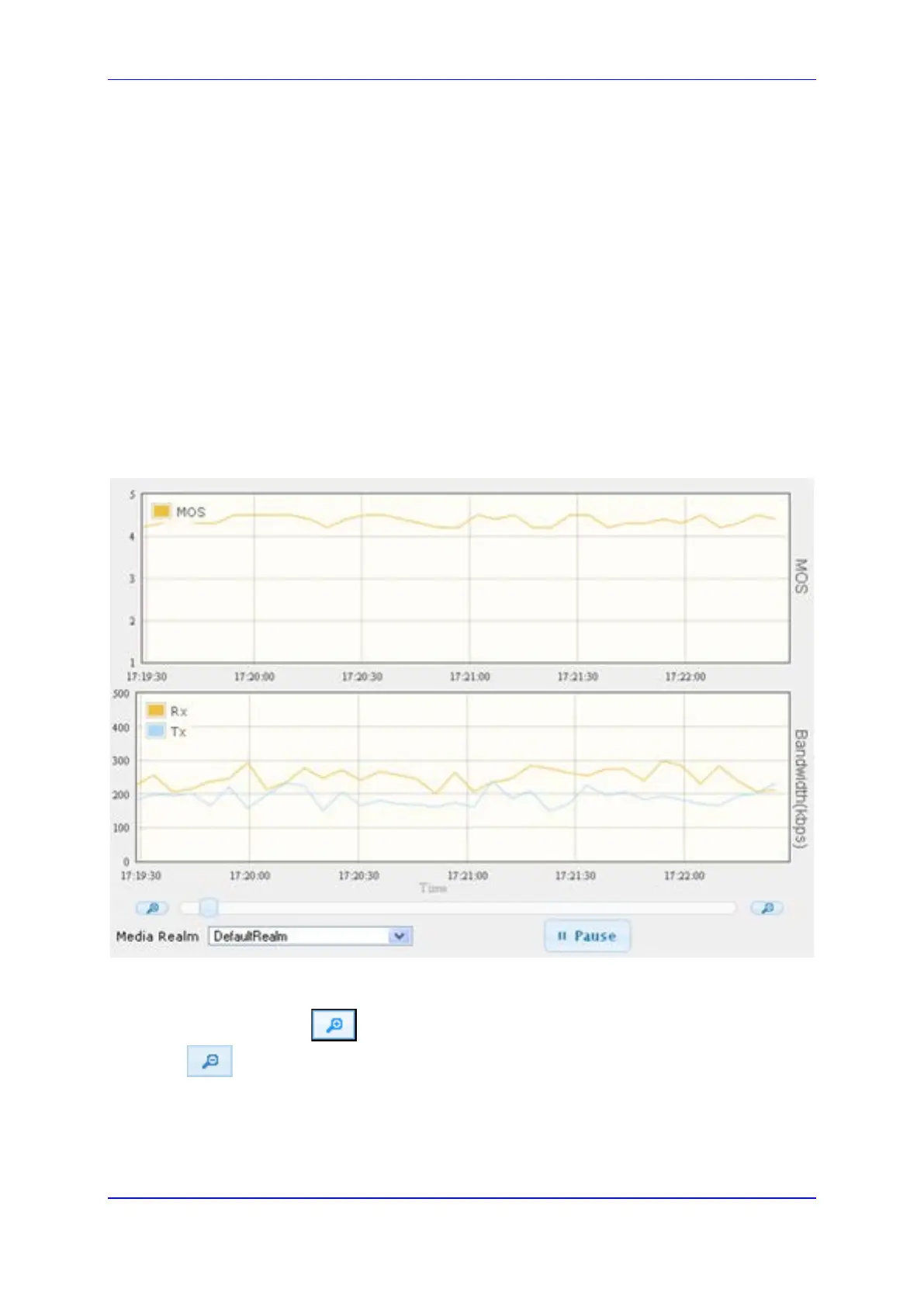

Figure 53-1: MOS Per Media Realm Graph
2. From the 'Media Realm' drop-down list, select the Media Realm for which you want to
view.
Use the Zoom In button to increase the displayed time resolution or the Zoom Out
button to decrease it. Instead of using these zoom buttons, you can use the slide
ruler. As you increase the resolution, more data is displayed on the graph. The minimum
resolution is about 30 seconds; the maximum resolution is about an hour.
To pause the graph, click the Pause button; click Play to resume.
