a. Open the Test Call Settings page (Configuration tab > System menu > Test
Call > Test Call Settings).

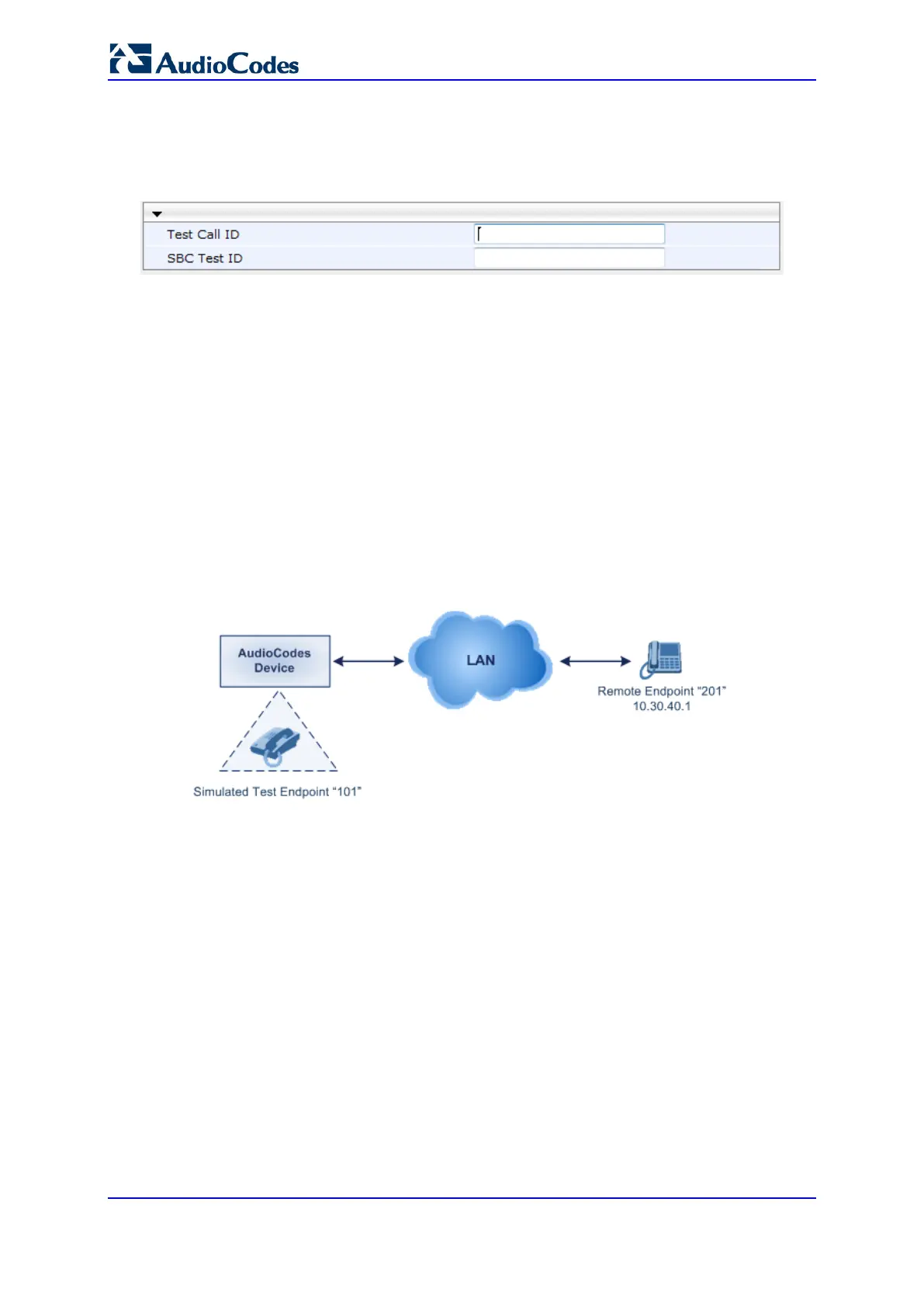

Figure 62-7: Test Call Settings Page
b. In the 'Test Call ID' field, enter a prefix number for the simulated test endpoint on
the device.
c. In the 'SBC Test ID' field, enter a called prefix number for identifying the call as
an SBC test call.
d. Click Submit.
2. Configure regular SBC call processing rules for called number prefix "101", such as
classification and IP-to-IP routing through a proxy server.
62.7 Test Call Configuration Examples
Below are a few examples of test call configurations.
Single Test Call Scenario: This example describes the configuration of a simple test
call scenario that includes a single test call between a simulated test endpoint on the
device and a remote endpoint.
Figure 62-8: Single Test Call Example
• Test Call table configuration:
♦ Endpoint URI: "101"
♦ Called URI: "201"
♦ Route By: Dest Address
♦ Destination Address: "10.30.40.01"
♦ Call Party: Caller
♦ Test Mode: Once
Alternatively, if you want to route the test call using the Outbound IP Routing table for
the Gateway / IP-to-IP application, configure the following:
• Test Call table configuration:
♦ Endpoint URI: 101@10.0.0.1
♦ Route By: GW Tel2IP
♦ Called URI: 201@10.30.40.1
♦ Call Party: Caller
• Outbound IP Routing table configuration:
♦ Dest. Phone Prefix: 201 (i.e., the Called URI user-part)
