15.3.1 Configuration Example of Static IP Routes
An example of the use for static routes is shown in the figure below. In the example
scenario, the device needs to communicate with a softswitch at IP address 10.1.1.10.
However, the IP network interface from which packets destined for 10.1.1.10 is sent, is
configured to send the packets to a Default Gateway at 10.15.0.1. Therefore, the packets
do not reach the softswitch. To resolve this problem, a static route is configured to specify
the correct gateway (10.15.7.22) in order to reach the softswitch.
Note the following configuration:
The static route is configured with a subnet mask of 24 (255.255.255.0), enabling the
device to use the static route to send all packets destined for 10.1.1.x to this gateway
and therefore, to the network in which the softswitch resides.
The static route in the Static Route table is associated with the IP network interface in
the Interface table, using the 'Device Name' and 'Underlying Device' fields,
respectively.
The static route's Gateway address in the Static Route table is in the same subnet as
the IP address of the IP network interface in the Interface table.

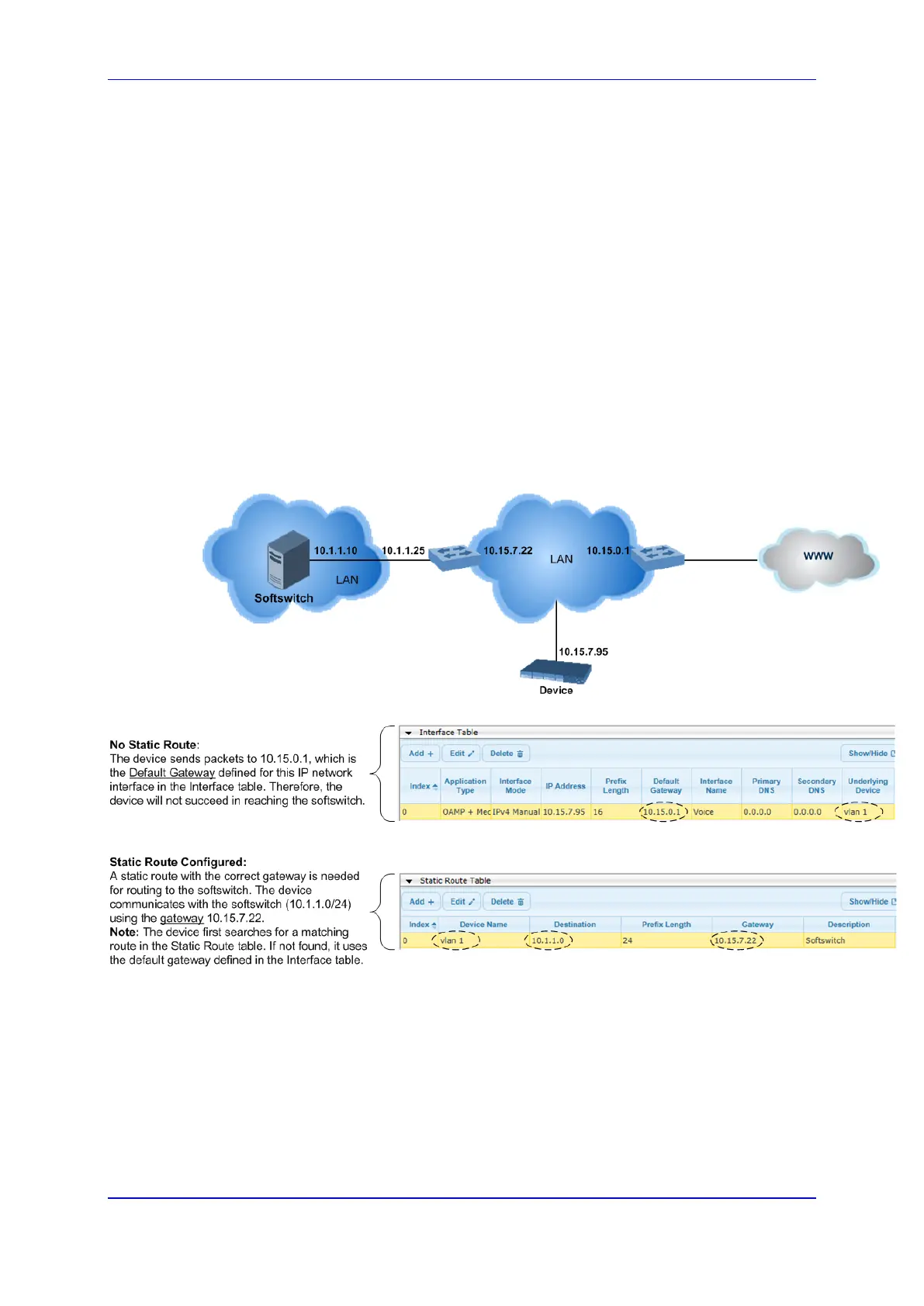

Figure 15-4: Example of using a Static Route
