User's Manual 694 Document #: LTRT-10466
Mediant 500L MSBR
54.4 Viewing Ethernet Device Status
The Ethernet Device Status page displays the configured Ethernet Devices that have been
successfully applied to the device. For configuring Ethernet Devices, see ''Configuring
Underlying Ethernet Devices'' on page 137.
To view the configured and applied Ethernet Devices:
Open the Ethernet Device Status page (Status & Diagnostics tab > VoIP Status
menu >Ethernet Device Status Table).

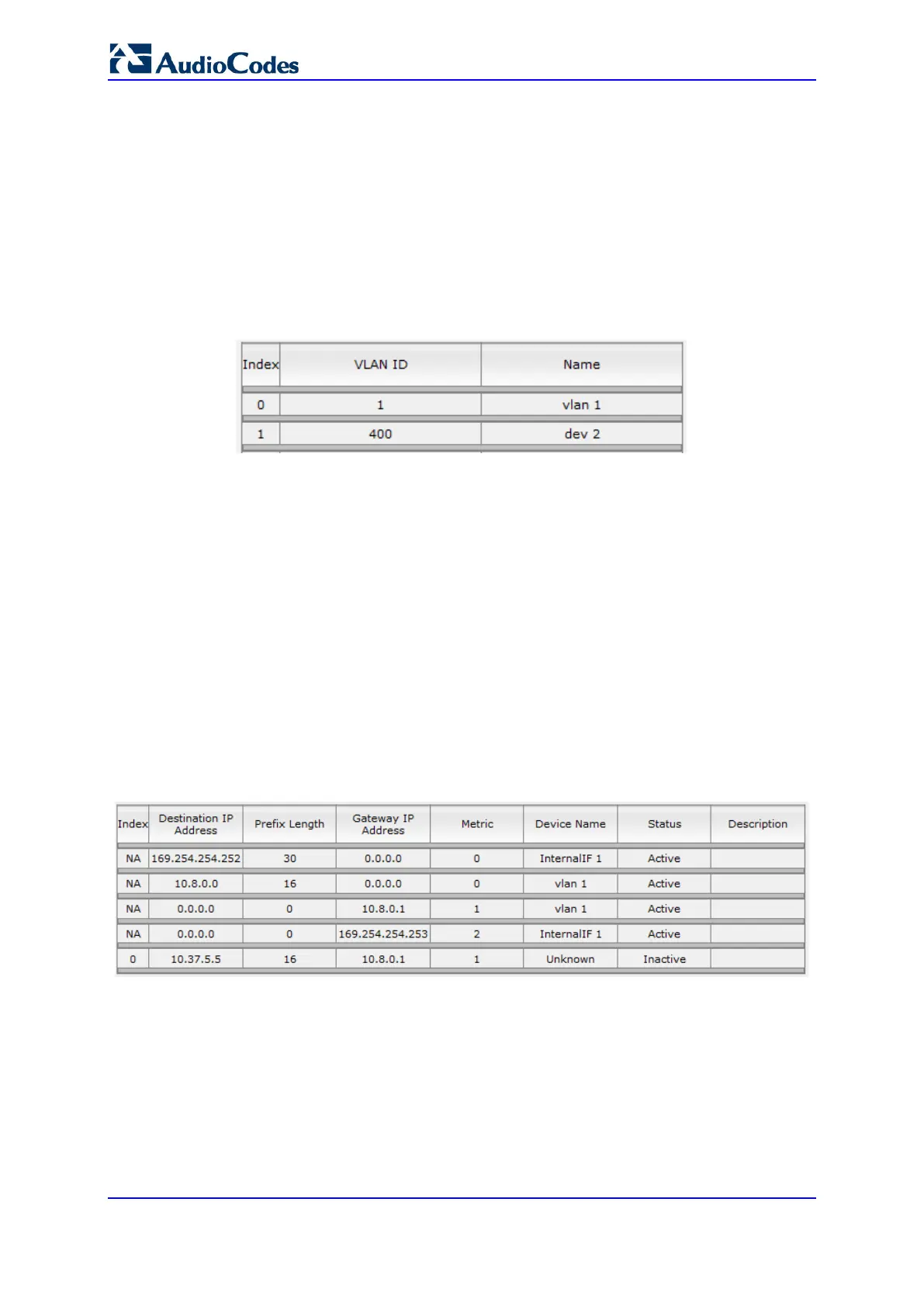

Figure 54-4: Ethernet Device Status Page
54.5 Viewing Static Routes Status
The IP Routing Status Table page displays the status of the static routes. These are routes
configured in the Static Route table (see ''Configuring Static IP Routing'' on page 147) and
routes through the Default Gateway.
The status of the static routes can be one of the following:
"Active": Static route is used by the device.
"Inactive": Static route is not used. When the destination IP address is not on the
same segment with the next hop, or the interface does not exist, the route state
changes to "Inactive".
To view the status of static IP routing:
Open the IP Routing Status Table page (Status & Diagnostics tab > VoIP Status
menu >Static Route Status).
Figure 54-5: IP Routing Status Table Page
