54 VoIP Status
This section describes how to view VoIP status and statistics.
54.1 Viewing Trunks & Channels Status
The Trunks & Channels Status page displays the status of the device's trunks and
corresponding channels. It also enables you to view trunk configuration and channel
information.
 To view the status of the device's trunks and channels:
1. Open the Home page.
2. On the graphical display of the device, click the required trunk, and then from the
shortcut menu, choose Port Settings; the Trunks & Channels Status page appears.

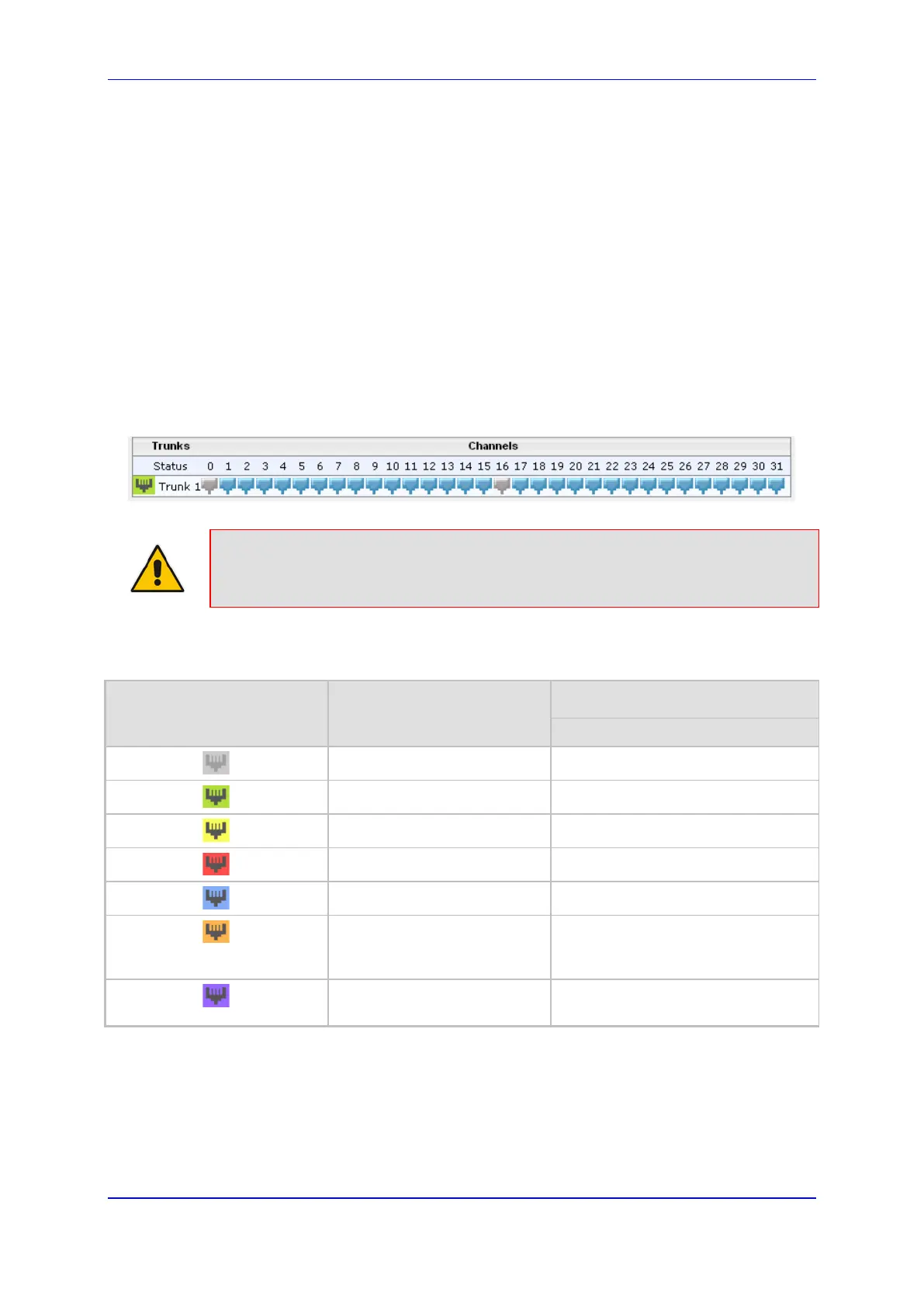

Figure 54-1: Trunks and Channels Status Screen
Note: The number of displayed trunks and channels depends on configuration.
The status of the trunks is depicted by color-coded icons, as described in the table below:
Table 54-1: Description of Color-Coded Icons for Trunk Status
Icon Color
Trunk
Label
Gray
Disabled
Green
Active - OK
Yellow
RAI Alarm
Red
LOS / LOF Alarm
Blue
AIS Alarm
Light Orange
D-Channel Alarm
Purple
Lower Layer Down (DS3 physical
layer is disabled)
