30.2 Configuring Metering Tones
The FXS interfaces can generate 12/16 KHz metering pulses toward the Tel side (e.g., for
connection to a pay phone or private meter). Tariff pulse rate is determined according to
the device's Charge Codes table. This capability enables users to define different tariffs
according to the source/destination numbers and the time-of-day. The tariff rate includes
the time interval between the generated pulses and the number of pulses generated on
answer.
Notes:
• The Metering Tones page is available only for FXS interfaces.
• Charge Code rules can be assigned to routing rules in the Outbound IP Routing
table (see ''Configuring Outbound IP Routing'' on page 405). When a new call is
established, the Outbound IP Routing table is searched for the destination IP
address. Once a route is located, the Charge Code (configured for that route) is
used to associate the route with an entry in the Charge Codes table.
 To configure Metering tones:
1. Open the Metering Tones page (Configuration tab > VoIP menu > GW and IP to IP >
Analog Gateway > Metering Tones).

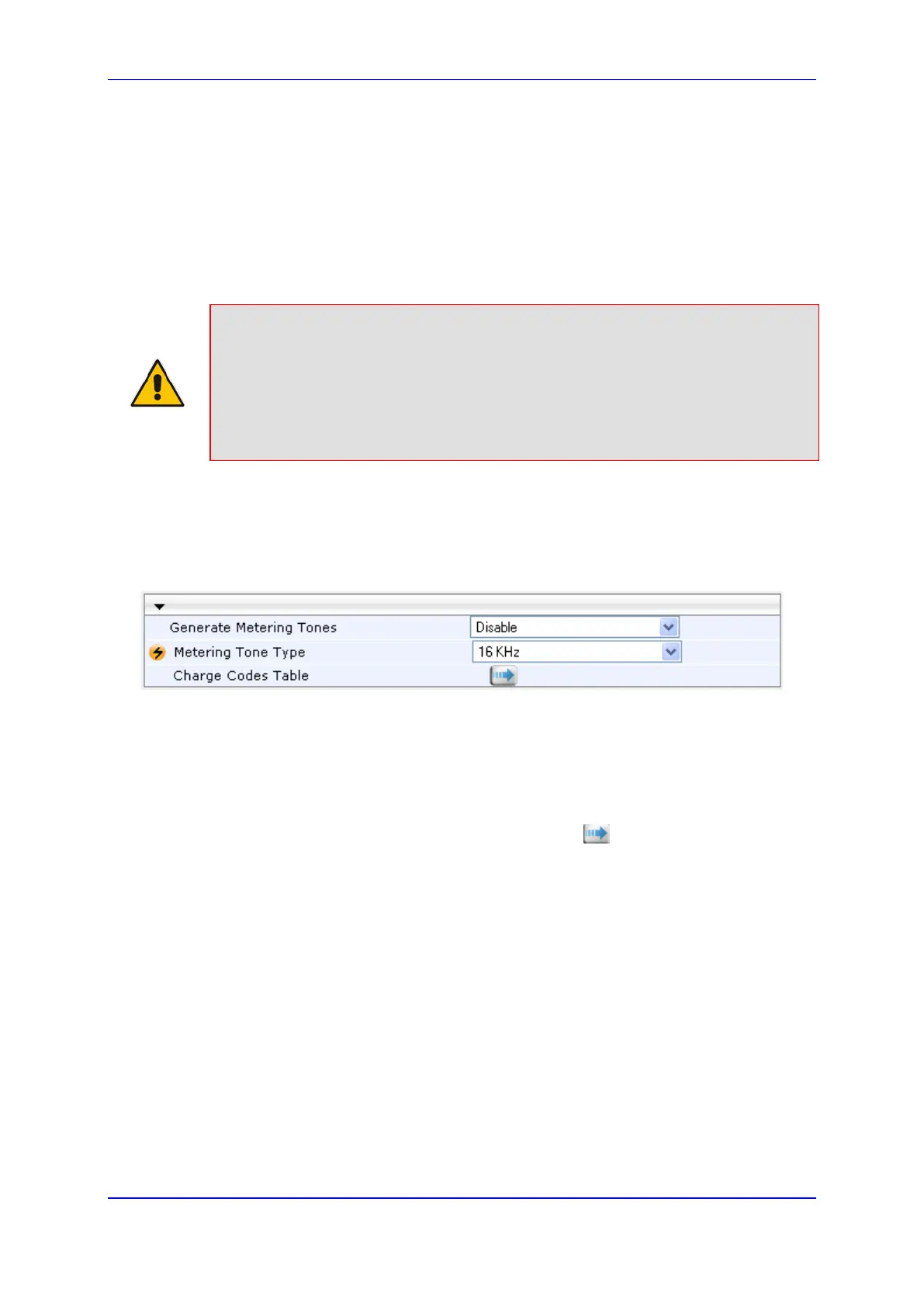

Figure 30-2: Metering Tones Page
2. Configure the Metering tones parameters as required. For a description of the
parameters appearing on this page, see ''Configuration Parameters Reference'' on
page 779.
3. Click Submit.
4. To save the changes to the flash memory, see ''Saving Configuration'' on page 606.
If you set the 'Generate Metering Tones' parameter to Internal Table, access the Charge
Codes Table page by clicking the Charge Codes Table button. For more information
on configuring the Charge Codes table, see ''Configuring Charge Codes'' on page 481.
