♦ For Media Service class, the default DiffServ value is set to 46
♦ For Control Service class, the default DiffServ value is set to 40
♦ For Gold Service class, the default DiffServ value is set to 26
♦ For Bronze Service class, the default DiffServ value is set to 10

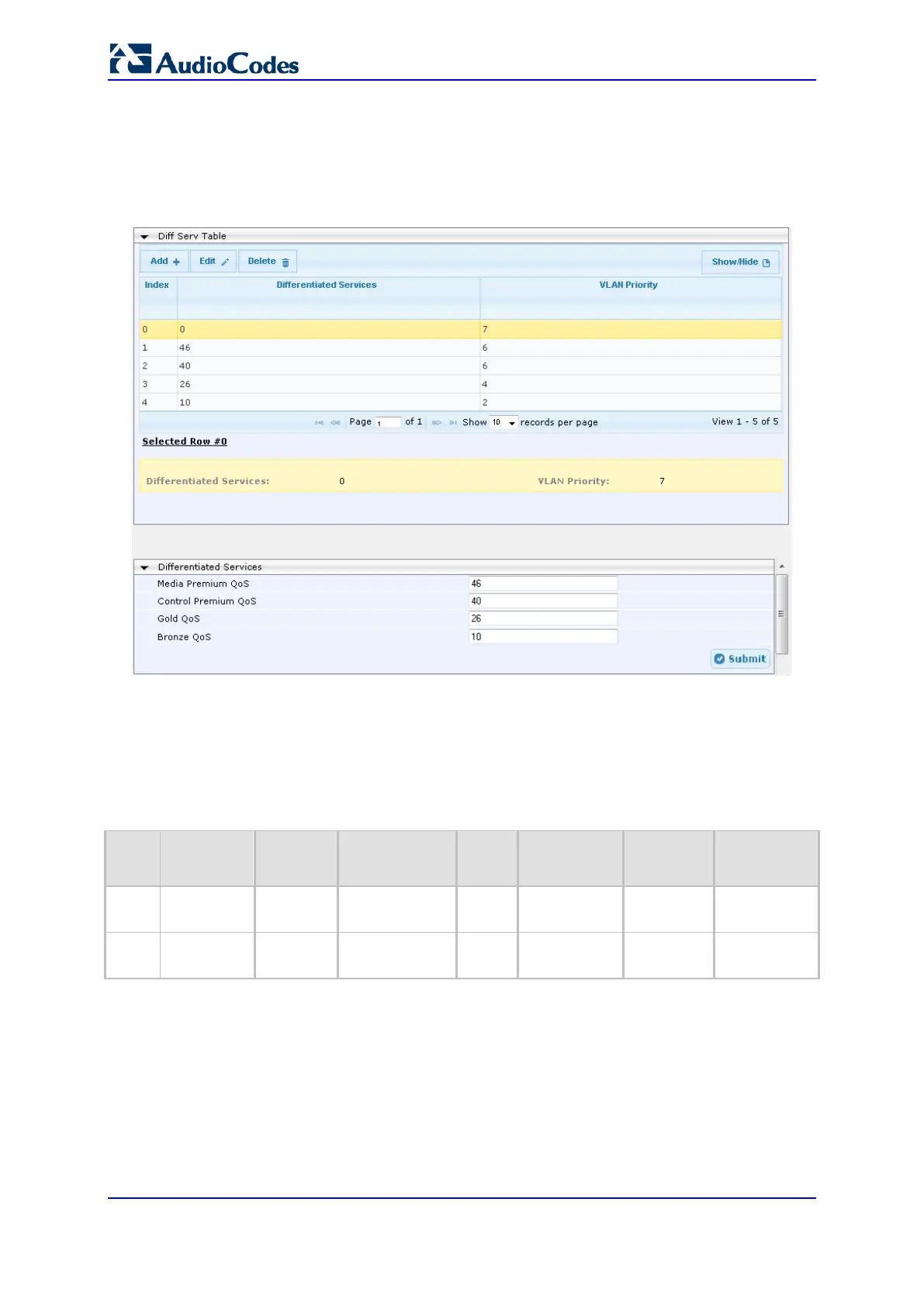

Figure 15-3: Example of Layer-2 QoS in DiffServ Table
15.2.3.4 VoIP Interfaces with Multiple Default Gateways
Below is a configuration example using default gateways per IP network interface. In this
example, the default gateway for OAMP is 192.168.0.1 and for Media and Control it is
200.200.85.1.
Table 15-9: Configured Default Gateway Example
Index
Type
Interface
Mode
IP Address
Prefix
Length
Default
Gateway
Device
Interface
Name
0 OAMP
IPv4
Manual
192.168.0.2 16 192.168.0.1 100 Mgmt
1
Media &
Control
IPv4
Manual
200.200.85.14 24 200.200.85.1 200 CntrlMedia
A separate Static Route table lets you configure static routing rules. Configuring the
following static routing rules enables OAMP applications to access peers on subnet
17.17.0.0 through the gateway 192.168.10.1 (which is not the default gateway of the
interface), and Media & Control applications to access peers on subnet 171.79.39.0
through the gateway 200.200.85.10 (which is not the default gateway of the interface).
