Application Traffic / Network Types Class-of-Service (Priority)
Web server (HTTP)
Management Bronze
SNMP GET/SET
Management Bronze
Web server (HTTPS)
Management Bronze
RTP traffic
Media Premium media
RTCP traffic
Media Premium media
T.38 traffic
Media Premium media
SIP
Control Premium control
SIP over TLS (SIPS)
Control Premium control
Syslog
Management Bronze
SNMP Traps
Management Bronze
DNS client
Varies according to DNS settings:
 OAMP
 Control
Depends on traffic type:
 Control: Premium Control
 Management: Bronze
NTP
Varies according to the interface
type associated with NTP (see
''Assigning NTP Services to
Application Types'' on page 143):
 OAMP

Control
Depends on traffic type:
 Control: Premium control
 Management: Bronze
The following procedure describes how to configure DiffServ-to-VLAN priority mapping in
the Web interface. You can also configure this using the table ini file parameter,
DiffServToVlanPriority or CLI command configure voip > qos vlan-mapping.
 To configure QoS:
1. Open the Diff Serv Table page (Configuration tab > VoIP menu > Network > QoS
Settings).
2. Configure DiffServ-to-VLAN priority mapping (Layer-2 QoS):
a. Click Add; the following dialog box appears:

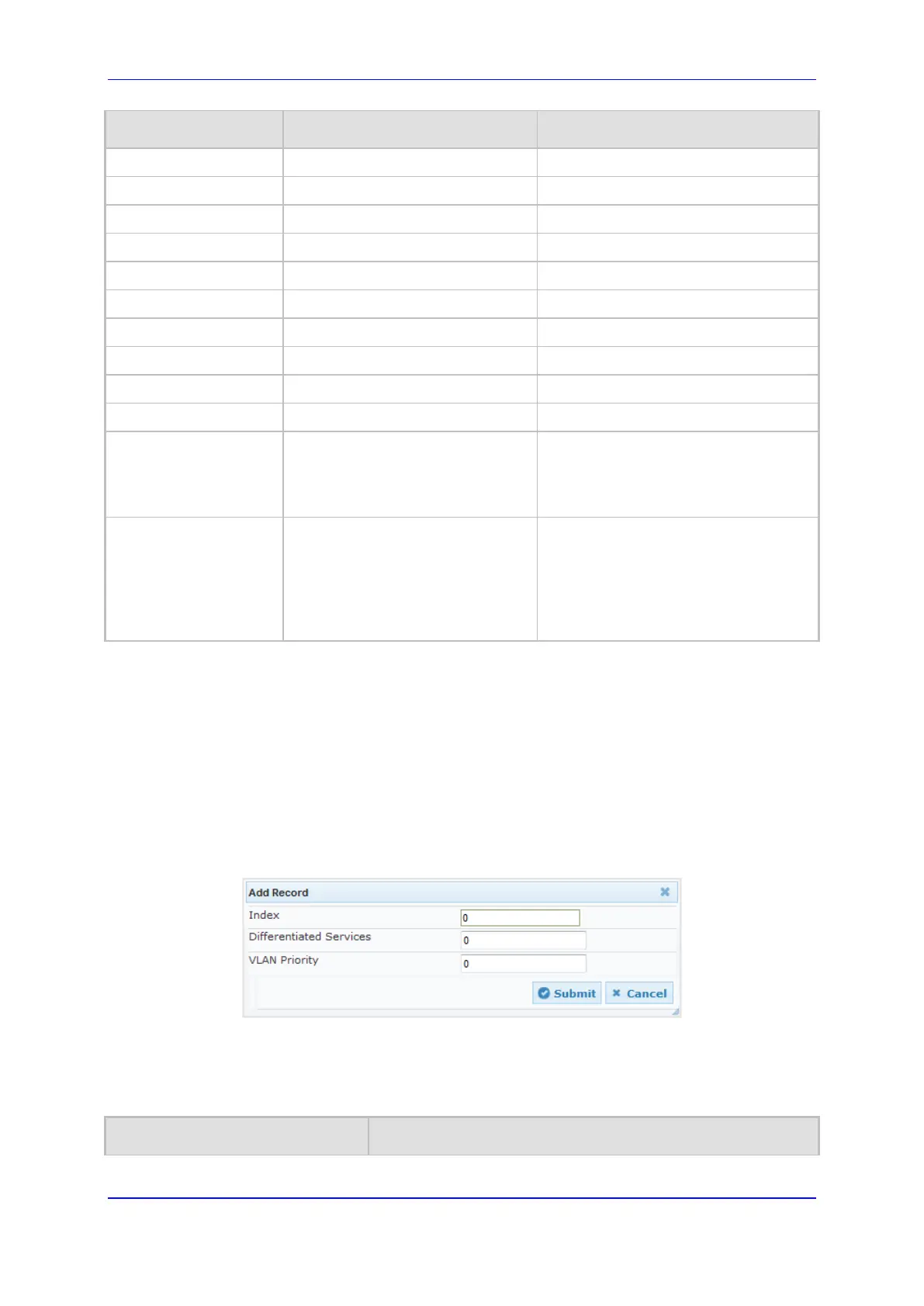

Figure 15-5: DiffServ Table Page - Add Record
b. Configure a DiffServ-to-VLAN priority mapping (Layer-2 QoS) according to the
parameters described in the table below.
c. Click Submit, and then save ("burn") your settings to flash memory.
Table 15-13: DiffServ Table Parameter Descriptions
Parameter Description
