To configure a Media Realm:
1. Open the Media Realm Table page (Configuration tab > VoIP menu > VoIP Network
> Media Realm Configuration).
2. Click Add; the following dialog box appears:

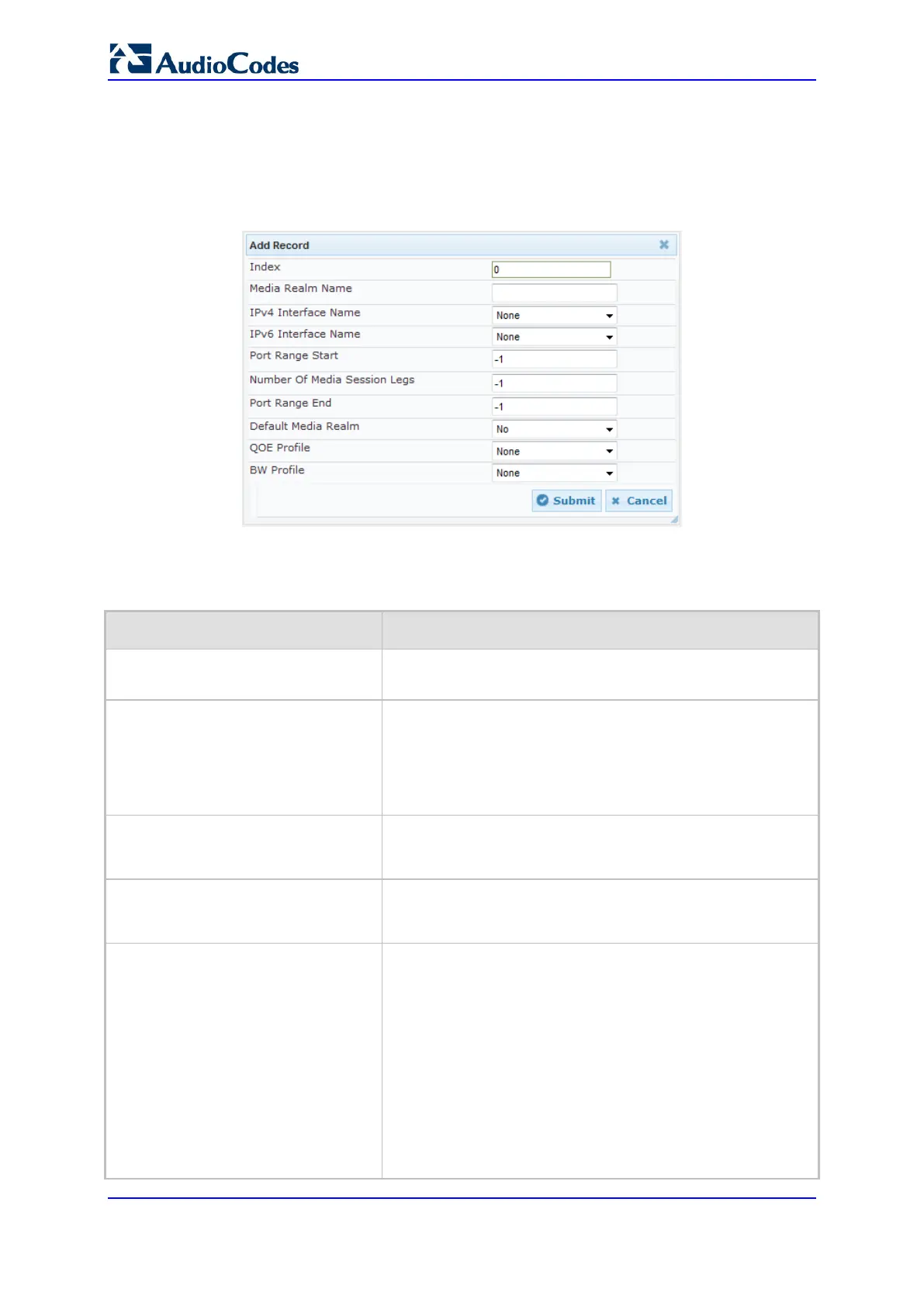

Figure 20-1: Media Realm Page - Add Record Dialog Box
3. Configure the Media Realm according to the parameters described in the table below.
4. Click Submit, and then save ("burn") your settings to flash memory.
Table 20-1: Media Realm Table Parameter Descriptions
Parameter Description
Index
[CpMediaRealm_Index]
Defines an index number for the new table record.
The valid value is 0 to 63.
Media Realm Name
CLI: name
[CpMediaRealm_MediaRealmName]
Defines an arbitrary name to easily identify the Media Realm.
The valid value is a string of up to 40 characters.
Notes:
This parameter is mandatory.
The name assigned to the Media Realm must be unique.
IPv4 Interface Name
CLI: ipv4
[CpMediaRealm_IPv4IF]
Assigns an IPv4 network interface to the Media Realm. This
is the name of the interface as configured in the 'Interface
Name' field of the Interface table.
IPv6 Interface Name
CLI: ipv6if
[CpMediaRealm_IPv6IF]
Assigns an IPv6 network interface to the Media Realm. This
is the name of the interface as configured for the 'Interface
Name' field of the Interface table.
Port Range Start
CLI: port-range-start
[CpMediaRealm_PortRangeStart]
Defines the starting port for the range of Media interface UDP
ports.
Notes:
You must either configure all Media Realms with port
ranges or all without; not some with and some without.
The available UDP port range is according to the
BaseUDPport parameter. For more information, see
''Configuring RTP Base UDP Port'' on page 199.
The base UDP port number (BaseUDPPort parameter)
must be greater than the highest UDP port configured for
a SIP Interface (see Configuring SIP Interfaces on page
283). For example, if your highest configured UDP port for
