User's Manual 10. SNMP-Based Management
Version 6.8 95 Mediant 500L MSBR
To configure SNMP Trusted Managers:
1. Open the SNMP Trusted Managers page (Configuration tab > System menu >
Management > SNMP > SNMP Trusted Managers).

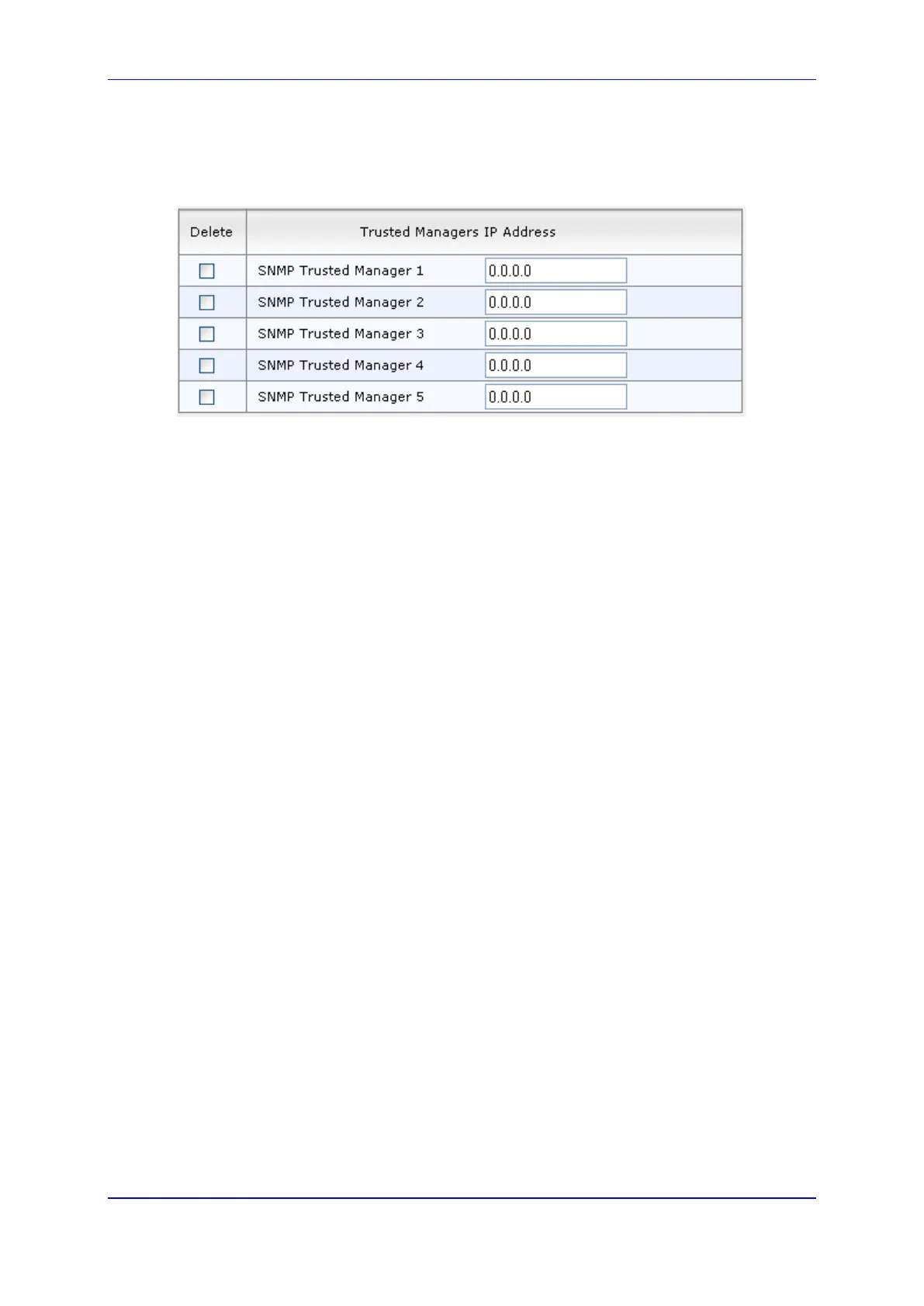

Figure 10-3: SNMP Trusted Managers
2. Select the check box corresponding to the SNMP Trusted Manager that you want to
enable and for whom you want to define an IP address.
3. Define an IP address in dotted-decimal notation.
4. Click Submit, and then save ("burn") your settings to flash memory.
