5. Physical installation top cooler

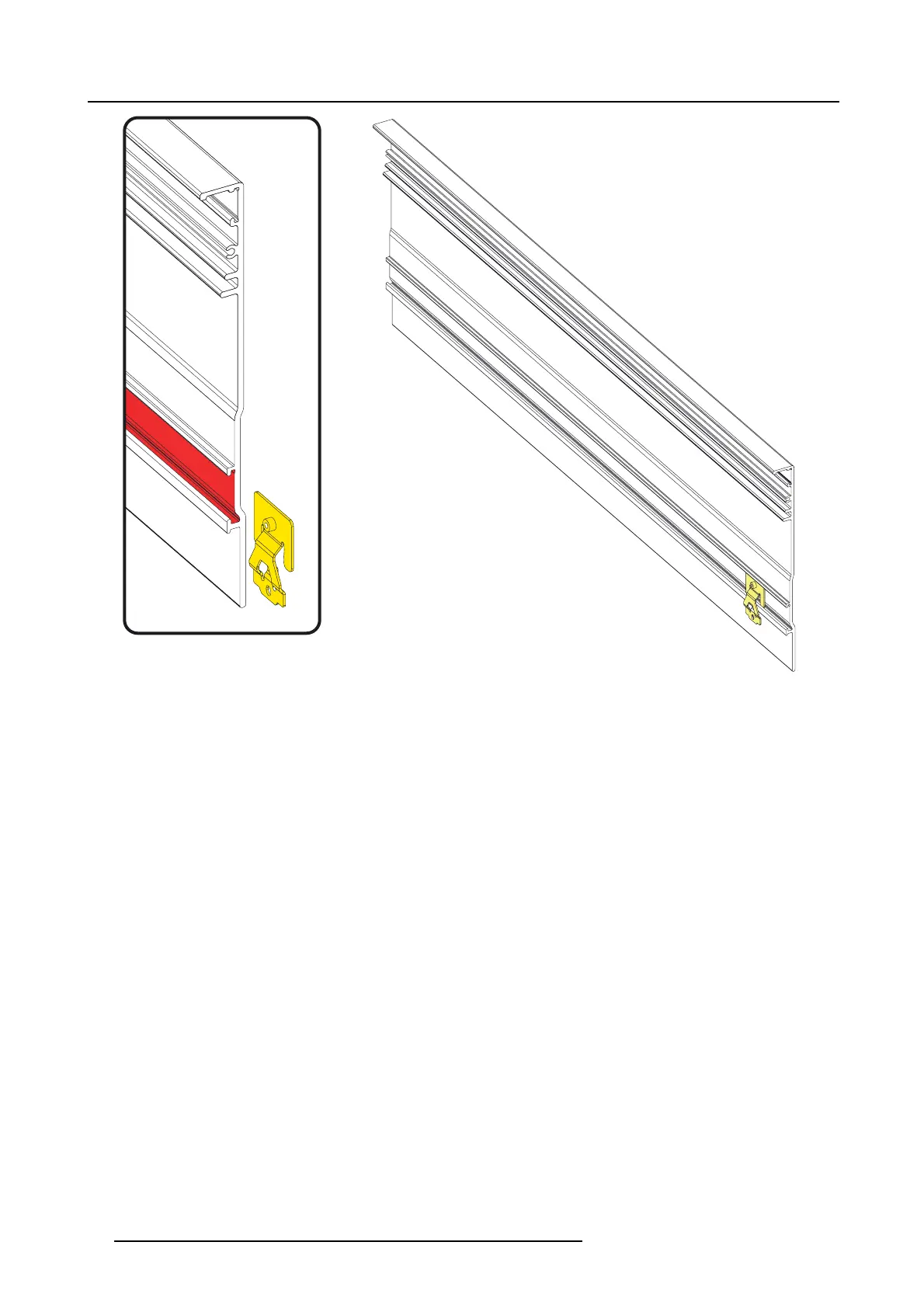

Image 5-4
2. S lide the front plate with b oth fixatio n brackets
fully on both side covers.
Turn in the 4 se t sc rews (M 3) and tighten them fully u ntil the brac kets are pushed strongly against the ribs in the cover.
Note: There m ay be paint job m arkings left on the internal side of the side covers (e.g. in the grooves for the pos itioning pin).
These markings are no thread nor shou ld
they be mistaken for s uch.
40
R5906753 DPXK BLP SERIES 20/11/2017
