5. Physical installation top cooler

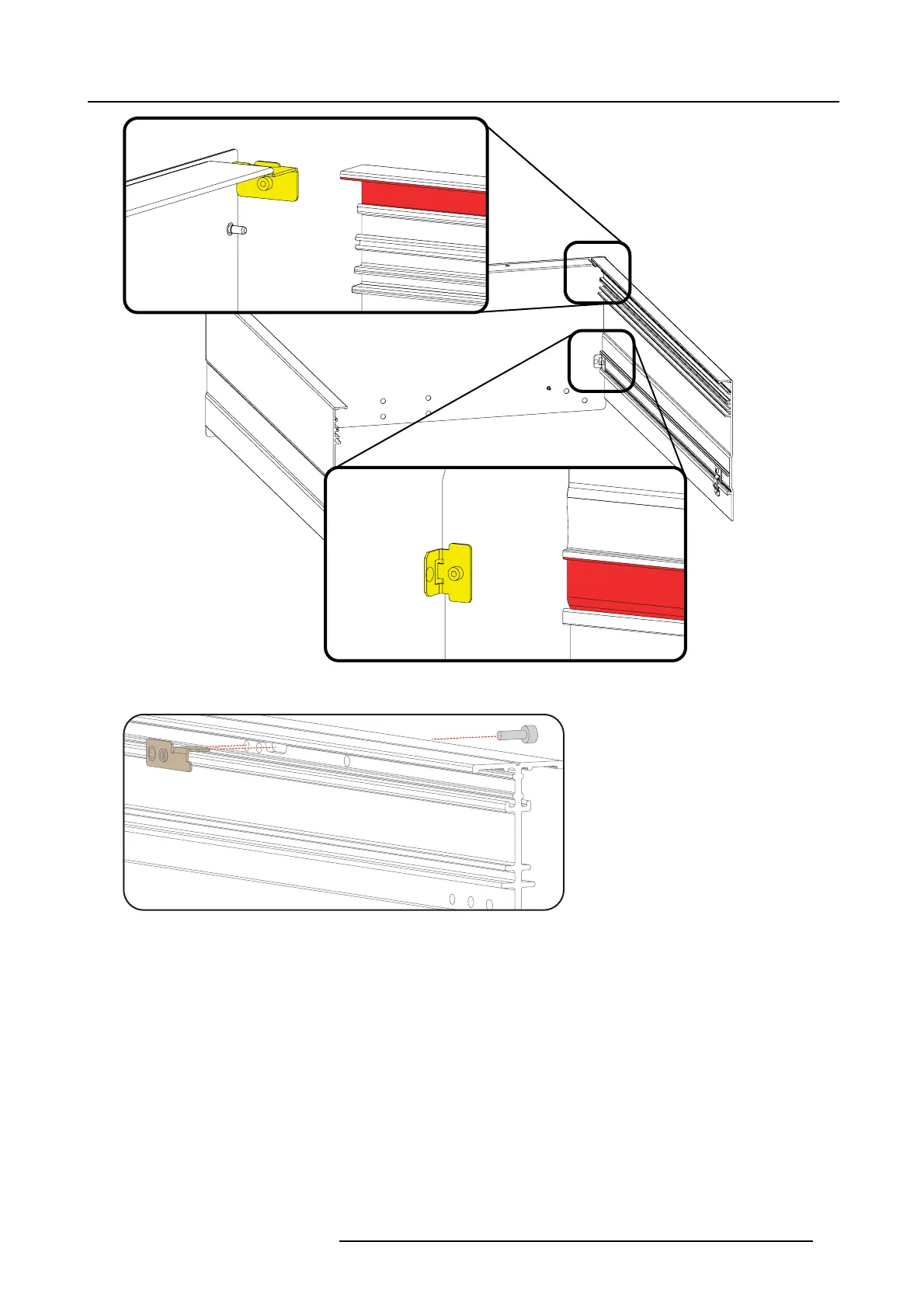

Image 5-5
3. Install the position plate onto the middle brack
et as illustrated. Tighten the plate with an M4 hex screw.
Image 5-6
4. S lide t he middle bracket into the grooves of the front plate. Pay careful to orient the middle bracket like indicated in the dr awing
below (the three holes at the b elow of the bracket m ust be placed at the opposite to th e front plate). Turn in a set screw (M3) as
indicated in reference 1.
Tip: Put in plac e the screws, without tightening them, before slide the middle bracket. It is more eas y to positioning the screws
when the middle bracket is not in p lace.
R5906753 DPXK BLP SERIES 20/11/2017
41
