SECTION 31 - IMPLEMENT POWER TAKE-OFF (PTO) - CHAPTER 4
31-3

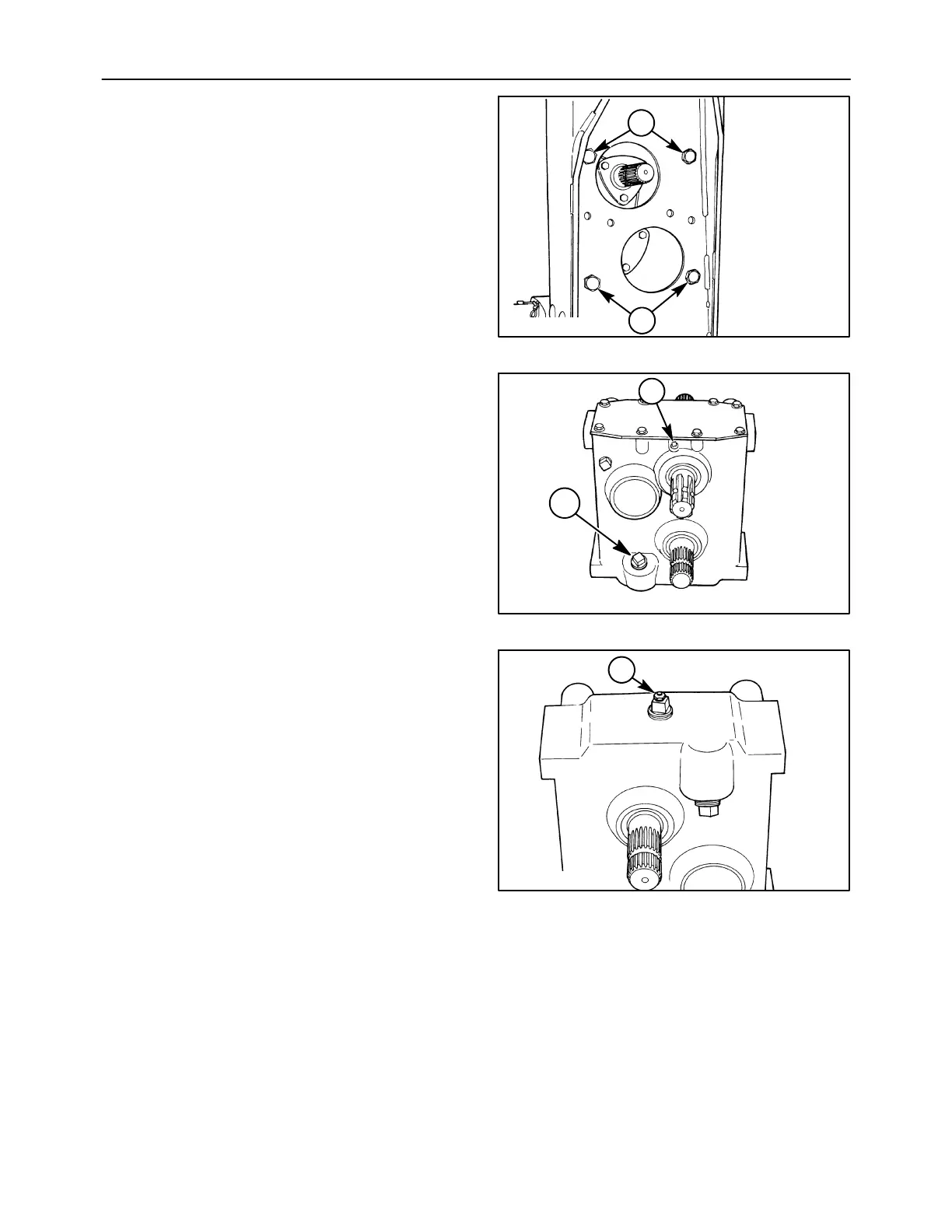

5. Remove the four cap screws and flat washers at
1, which attach the gearbox to the tongue. Tip
gearbox forward, and remove it from the tongue.
IMPORTANT: The step-up gearbox is heavy and
awkward; use caution not to drop the gearbox as
personal injury or damage to the gearbox may result.
A3657-12
1
1
4
6. For 540 RPM Operation: Remove the breather,
1, Figure 6, from the plug on the top of the
gearbox. Lay box on its side, and remove the 1/8″
pipe plug, 2, from below the output shaft bearing
bore. Reinstall the breather into the bearing bore
hole, and the 1/8″ pipe plug into the drain plug.
A3657-12
1
2
5
For 1000 RPM Operation: Remove the
breather, 1, Figure 5, from above the output
shaft. Lay box on its side, and remove the 1/8″
pipe plug, 1, from the center of the drain plug.
Reinstall the breather into the drain plug, and the
1/8″ pipe plug into the breather hole.
A3657-16
1
6
