SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 2
58-4

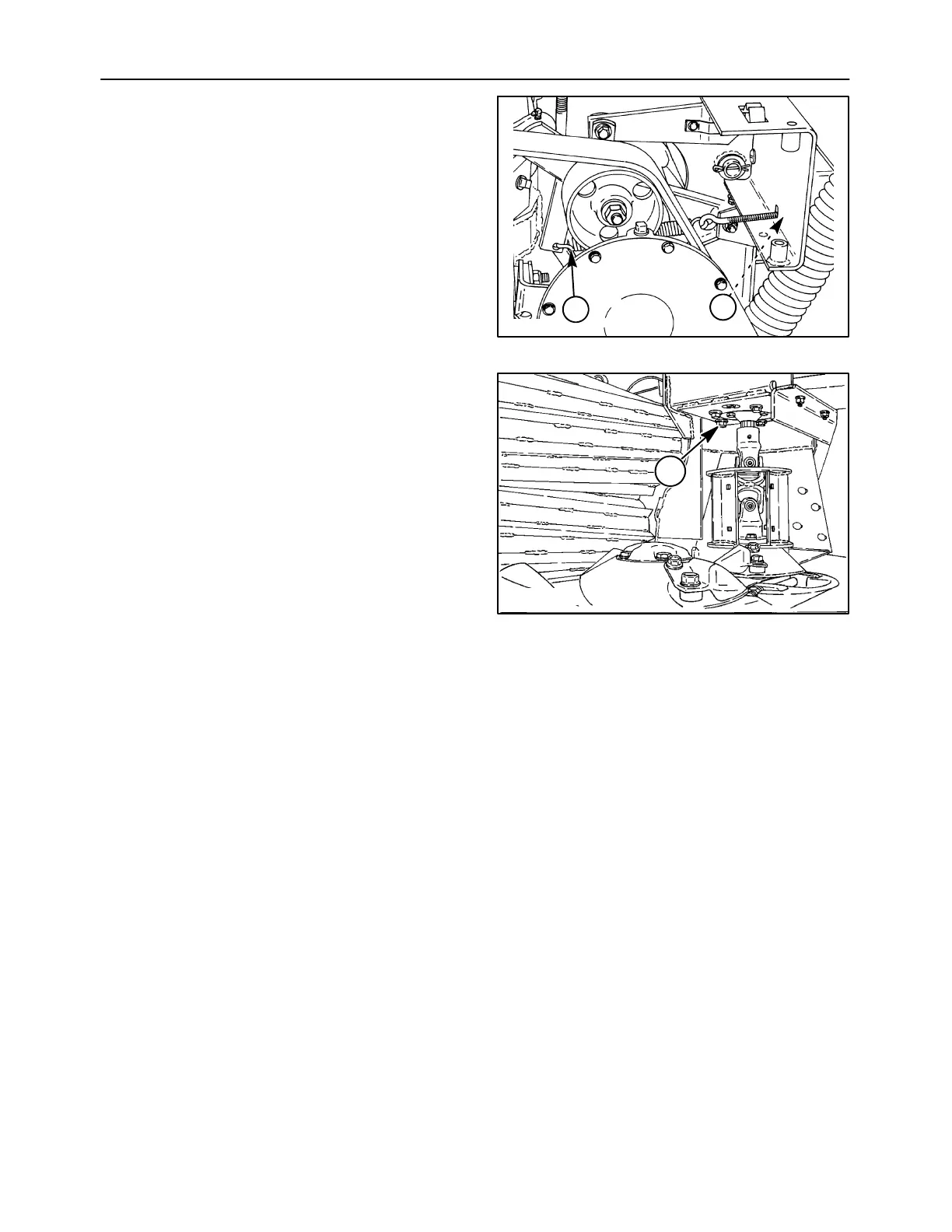

10. Remove the tension on the conditioner roll drive
belt by loosening the nuts, 2, on the spring
tension rod until the belt can be removed from the
upper sheave. Remove the spring, 1, from the
idler arm.
A3994-09
1
2
7
11. Remove the five cap screws, 1, and flat washers
that retain the gearbox to the header frame.
12. Lift the gearbox upwards until the gearbox output
shaft slips out of the cutter bar drive shaft yoke,
and remove it from unit.
IMPORTANT: The bevel gearbox is heavy and
awkward; use caution not to drop the gearbox as
personal injury or damage to the gearbox may result.
20011832
1
8
