SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-15

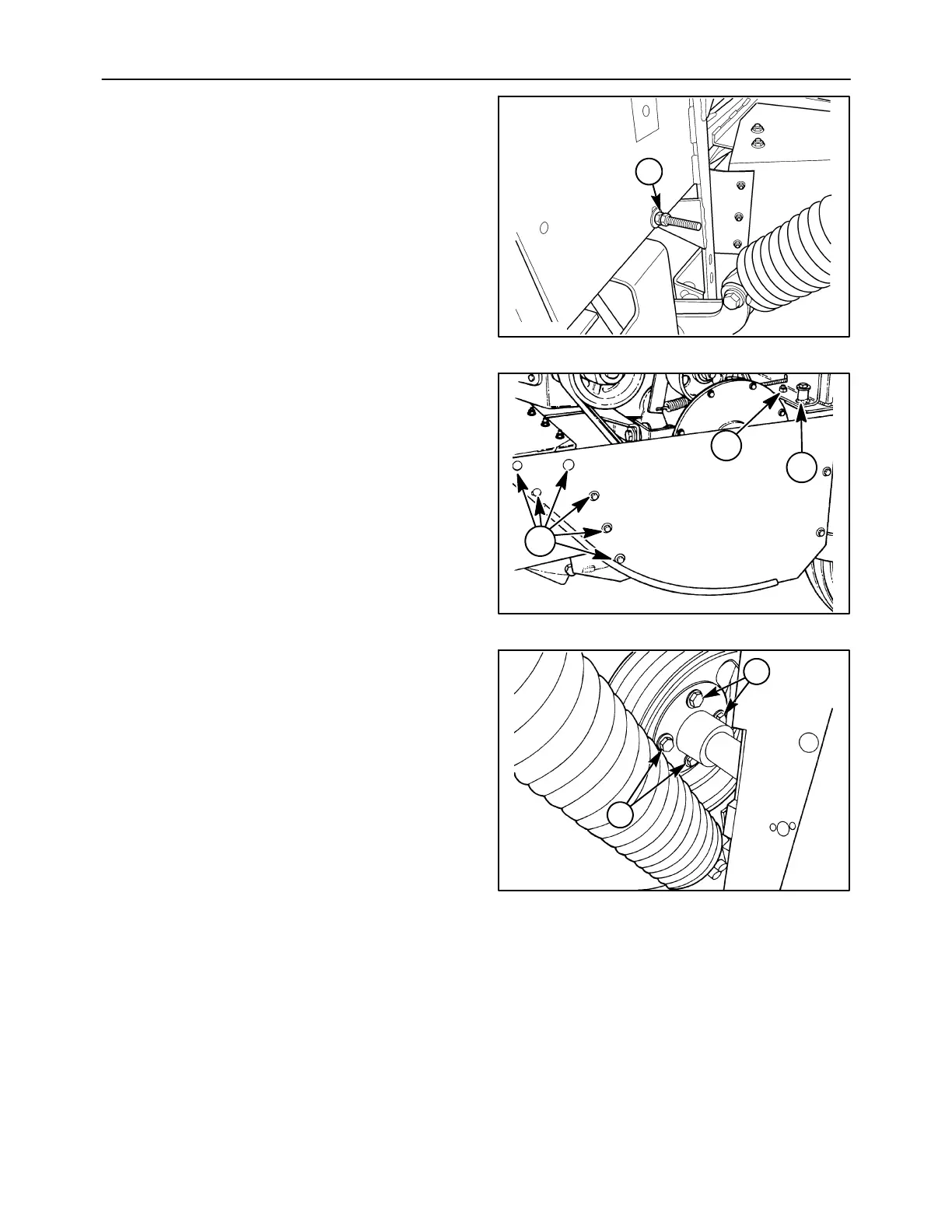

3. Remove the tension on the conditioner roll drive
belt by loosening the nuts, 1, on the spring
tension rod until the belt is loose on the sheaves.
1
10045453
36
4. Remove the divider sheet assembly from the unit
by removing the cap screw and locknut, 1, and
six carriage bolts, lock washers, and nuts, 2.
NOTE: It may be convenient to remove the swing out
shield for better access. To remove the shield,
remove the two cap screws and locknuts, 3, and lift
off the shield.
A3659-25
2
1
3
37
5. Remove the four cap screws, 1, and washers that
retain the gearbox shaft flange to the lower
sheave.
NOTE: Leave one cap screw partially threaded in to
support the bottom of the gearbox.
A3662-4
1
1
38
