SECTION 31 - IMPLEMENT POWER TAKE-OFF (PTO) - CHAPTER 2
31-5

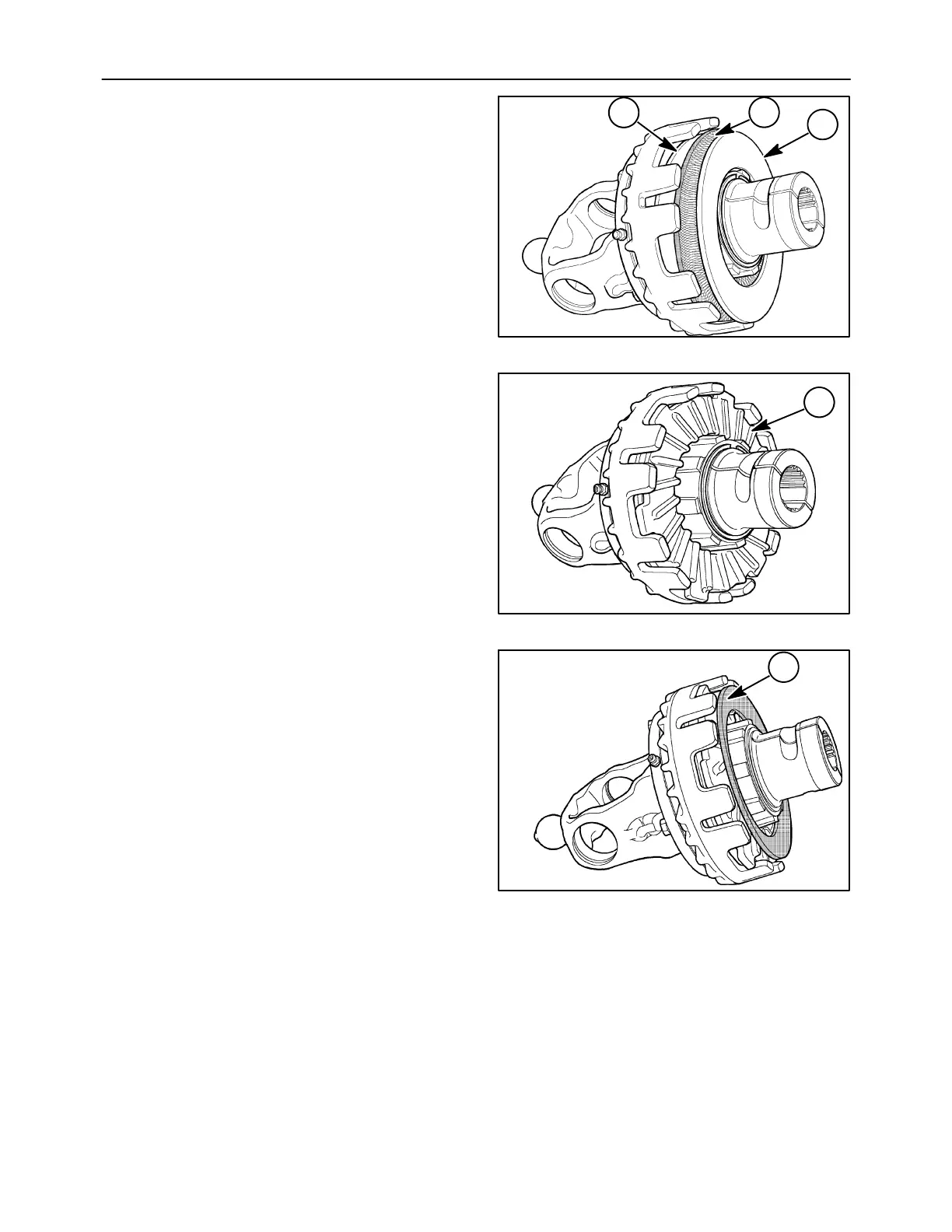

Slip Clutch - Assembly
1. Set a new friction disc, 1, into the clutch housing,
followed by the separator plate, 2, and another
friction disc, 3.
2
50006844
1
3
8
2. Slide the pressure plate, 1, into the housing with
the flat surface facing the friction disc. Align the
tabs on the plate with the relief notches in the
housing.
1
50006845
9
3. Position the disc spring, 1, over the clutch hub so
that the inside diameter of the disc spring
contacts the ribs on the pressure plate.
1
50006846
10
