Codan Envoy Getting Started Guide

INSTALLING THE TRANSCEIVER
OVERVIEW OF MOBILE STATIONS
ENVOY® TRANSCEIVER GETTING STARTED GUIDE 177

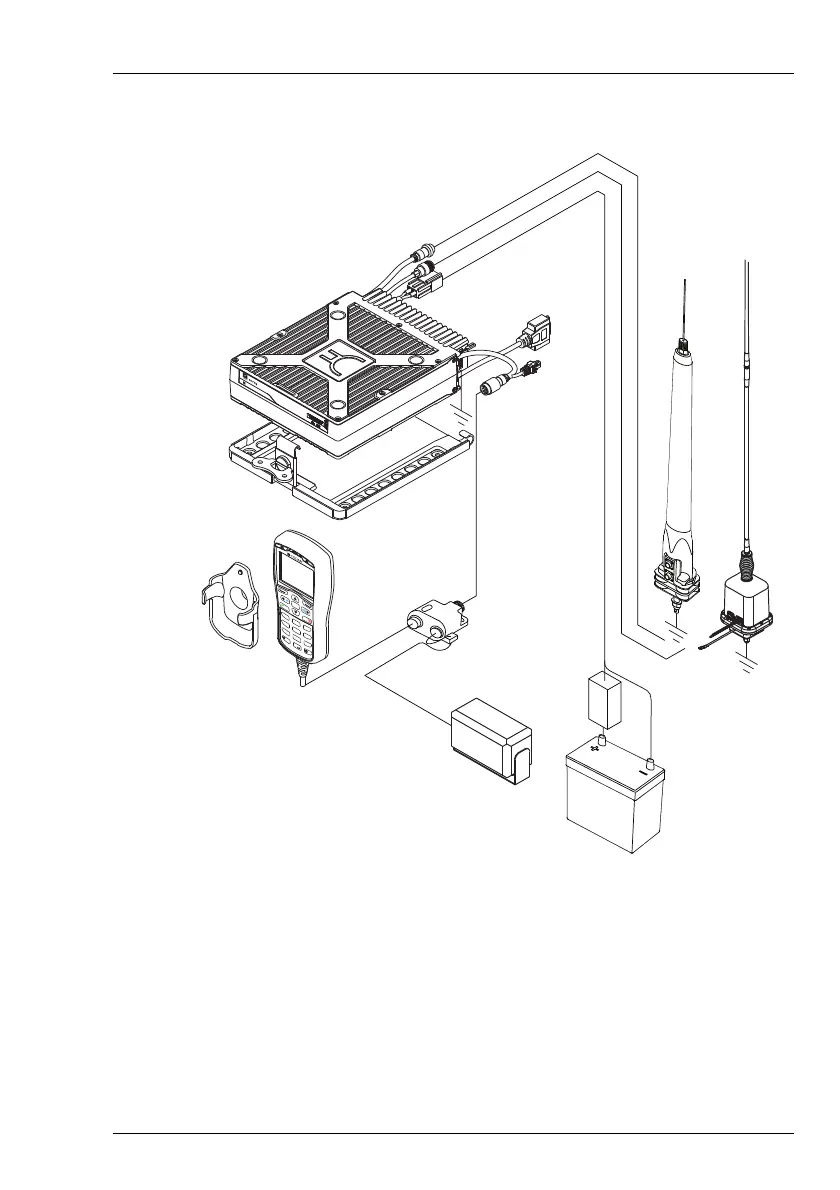

Figure 46: Typical mobile station
NOTE: A range of ancillary equipment may be connected to
the Envoy transceiver using the 6-way and GP port
connectors at the rear of the RFU.
CALL
SCAN
OK
1
TUNE
FUNC
MODE
FREE Rx
SEC
V
S
VIEW
EASI
TALK
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
2
3
4
5
6
7
8
9
0
GPS
RF Unit
™
Type 2210
Serial No.
antenna control
antenna
battery
battery
speaker
handset
handset cradle
RFU
RFU cradle
handset and speaker
connector
10-way
connector
GP port
connector
6-way
connector
93xx
3040
fuse
08-06022-001
08-03255
08-01503-00x
08-05627-00x
