INTRODUCTION
THE 2230 DESK CONSOLE
ENVOY® TRANSCEIVER GETTING STARTED GUIDE 7
The 2230 Desk Console
The 2230 Desk Console is a control point for the Envoy
transceiver. The user interface provides an icon-based menu
structure for easy setup and operation of the transceiver. The desk
console is standard for a fixed station.

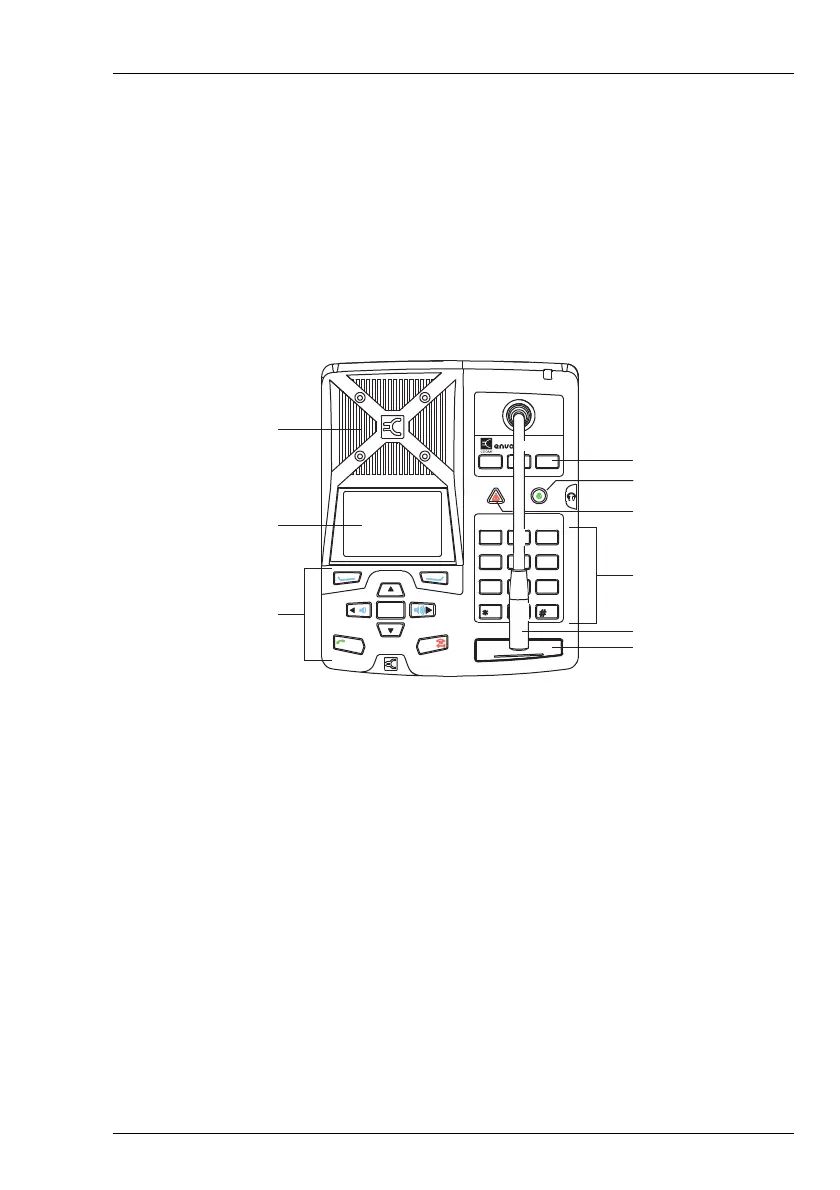

Figure 3: 2230 Desk Console
The 2230 Desk Console has an optional boom microphone, a
built-in speaker, a PTT button, a screen, navigation keys, function
keys, and numeric keys. The desk console also supports the use of
headphones, a foot-switched PTT device, peripherals via GP port,
and a separate hand microphone with PTT. The keypad enables you
to control and configure the transceiver system via the user
interface.
The 2230 Desk Console is shipped from the factory with standard
hot keys programmed to the numeric keys. The function that each
standard hot key performs is written on the numeric key in
BLUE
text. New user-defined functions may be assigned to most of the
keys.
Related links:
Keypad on page 8
Navigating the menu structure on page 141
FUNC
ABC
2
Desk Console
F1 F2 F3
MODE
DEF
31
TUNE
FREE Rx
GHI
4
MNO
6
WXYZ
9
V/S
PQRS
7
EASI
TAL K
VIEW
0
SEC
TUV
8
JKL
5
SCAN
CALL
OK
GPS
speaker
boom microphone
function keys
Power key
Emergency key
numeric keys
PTT
screen
navigation and
software keys
