Codan Envoy - Figure 21: Envoy X2 Transceiver with 2.4 Kbit;S Data Modem

OPERATING THE TRANSCEIVER
DATA OPTIONS
ENVOY® TRANSCEIVER GETTING STARTED GUIDE 87
NOTE: Software that operates on standard telephone
modems should operate over HF via the AT
commands.

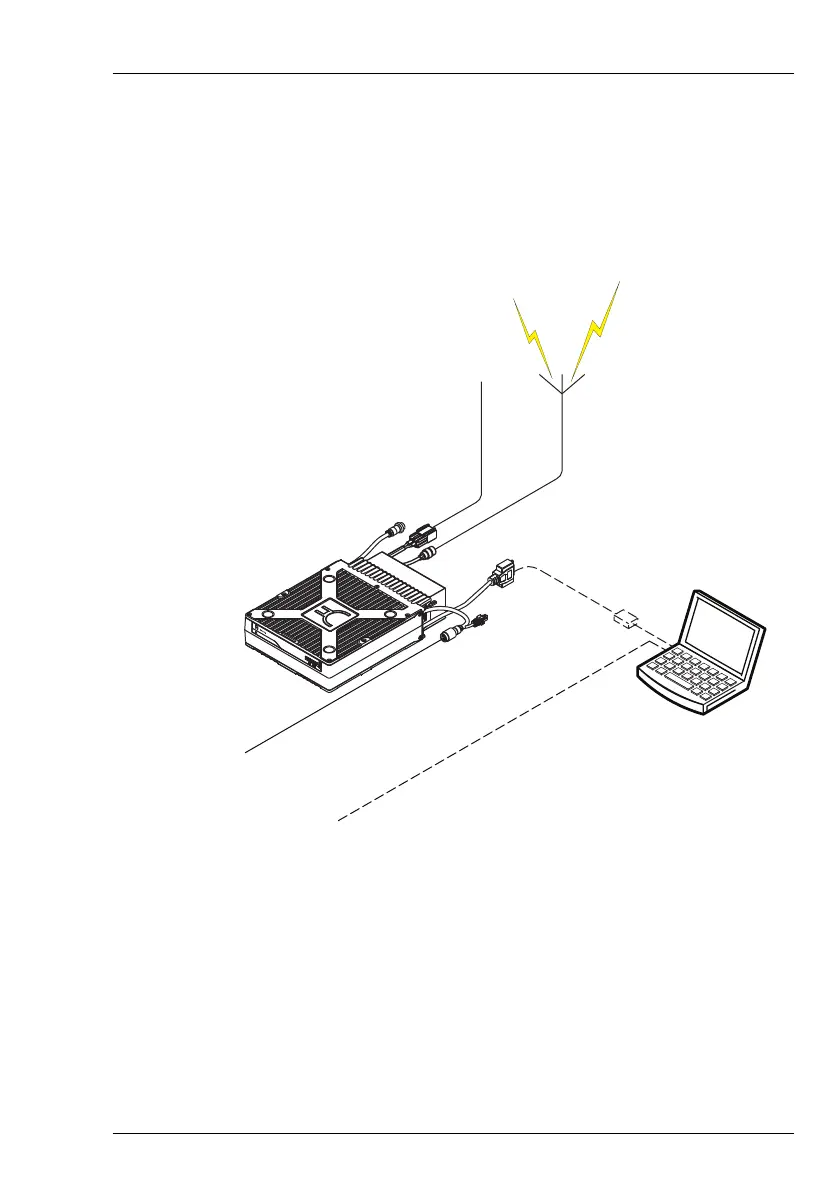

Figure 21: Envoy X2 transceiver with 2.4 kbit/s Data
Modem option and computer
CAUTION: If VCOM is used over a USB–USB connection
between the Envoy Transceiver with the internal
data modem interface and the computer running the
UUPlus/Codan Chat applications, the 2.4 kbit/s
Modem Interface peripheral device must not be
selected on the RFU GP port.
08-06952-00x
(USB A to GP port serial)
(alternative)
computer with
UUPlus©/Codan Chat©
software
antenna
system
to power supply
2210 RFU with
2.4 kbit/s Data Modem
RF Unit
™
Type 2210
Serial No.
to USB connector
on handset or
desk console
08-07214-001
(USB A to micro USB)
(alternative)
see CAUTION
to control point
08-06022-00x (handset)
08-07205-00x (desk console)
