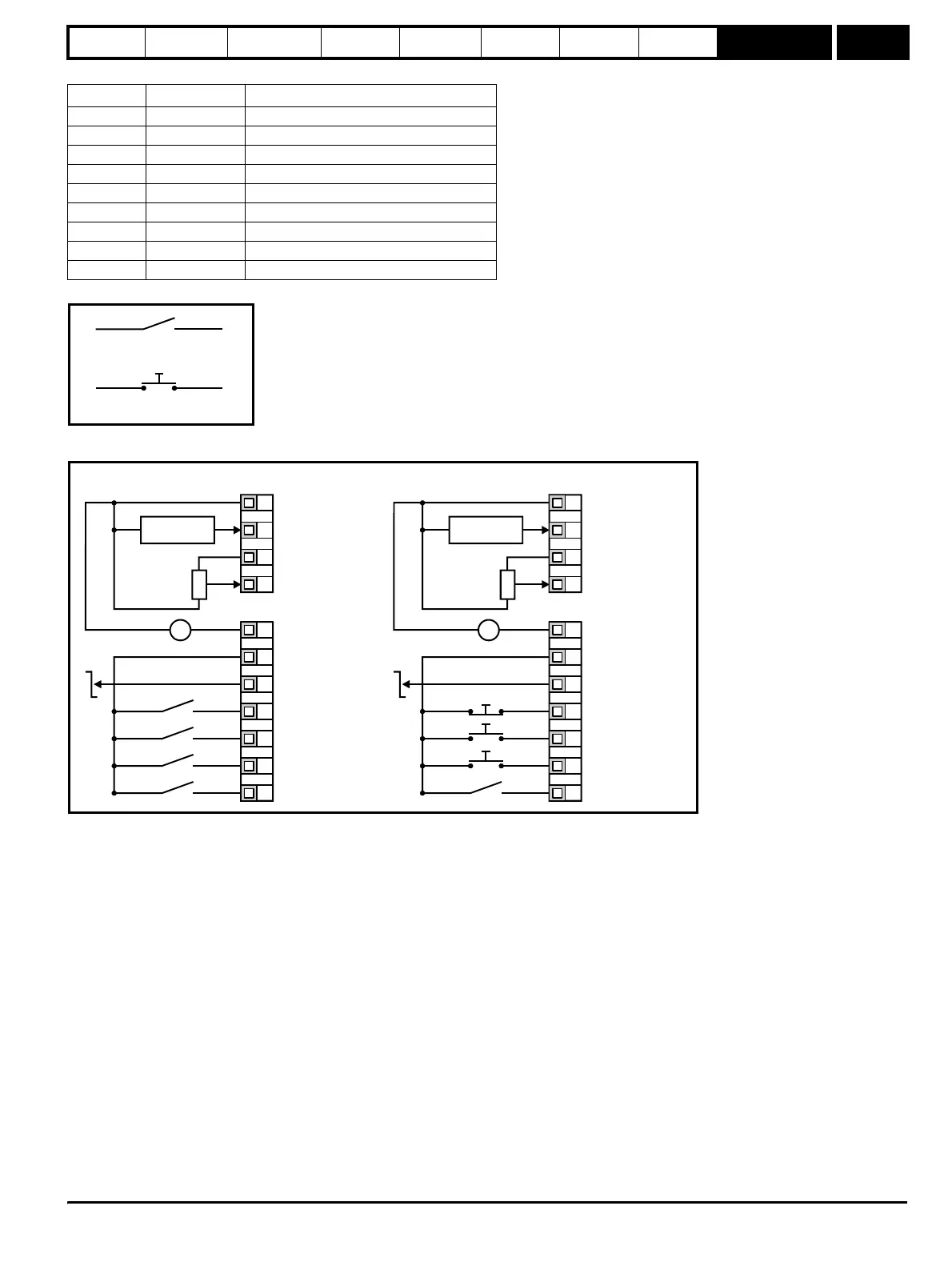

Figure 9-25 Key to switches
Figure 9-26 Pr 11.27 = AI.AV
Terminal B7 open: Local voltage speed reference input (A2) selected.
Terminal B7 closed: Remote current speed reference input (A1) selected.
Pr 11.27 Configuration Description
0 AI.AV Voltage and current input
1 AV.Pr Voltage input and 3 preset speeds
2 AI.Pr Current input and 3 preset speeds
3 Pr 4 preset speeds
4 PAd Keypad control
5 E.Pot Electronic motorised potentiometer control
6 tor Torque control operation
7 Pid PID control
8 HUAC Fan and pump control
Latching switch
Momentar
y
switch
T1
T2
T3
T4
0V
Remote current speed
reference input (A1)
+10V reference output
Local voltage speed
reference input (A2)
B1
B2
B3
B4
B5
B6
B7
+24V output
Drive Enable/Reset
Run Forward
Run Reverse
Local (A2)/Remote (A1)
speed reference select
Remote speed
reference input
V
_
+
10k
(2kmin)
+24V
0V
EUR
0V
Remote current speed
reference input (A1)
+10V reference output
Local voltage speed
reference input (A2)
+24V output
Not stop
Run
Jog
Local (A2)/Remote (A1
)
speed reference select
Remote speed
reference input
V
_
+
10k
(2kmin)
U
S
A
Analog output
(motor speed)
Digital output
(zero speed)
Analog output
(motor speed)
Digital output
(zero speed)
+24V
0V
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
