Control Techniques Commander SK User Manual

Menu 11 Introduction Parameter x.00
Parameter
description format
Keypad and
display
CT Modbus
RTU
User
programming
CT Soft Menu 0
Advanced parameter
descriptions
122 Commander SK Advanced User Guide
www.controltechniques.com Issue Number: 2

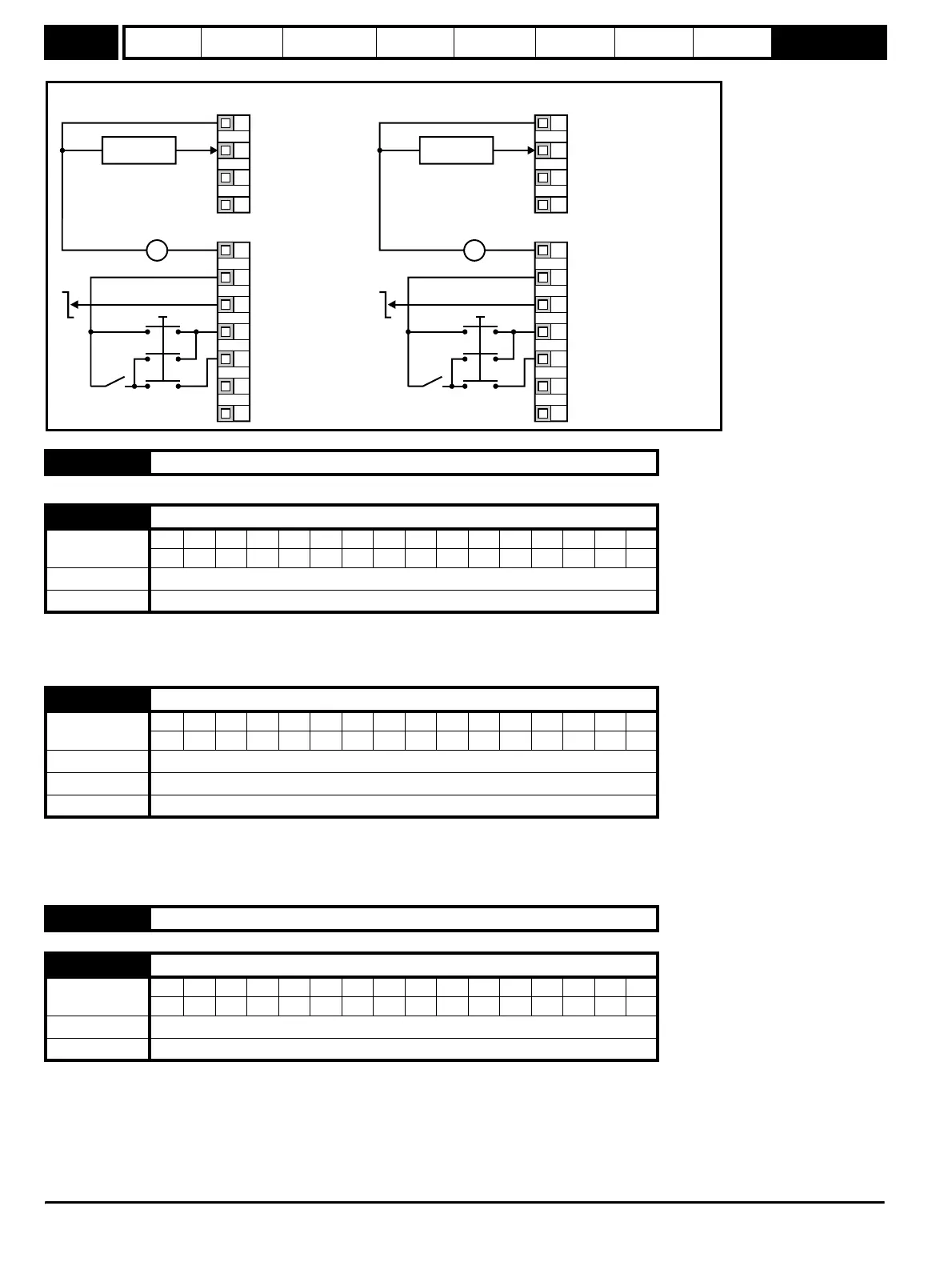

Figure 9-35 Pr 11.27 = HUAC
The drive software version consists of three numbers xx.yy.zz. xx.yy is displayed in this parameter and zz is displayed in Pr 11.34. Where xx specifies
a change that affects hardware compatibility, yy specifies a change that affects product documentation, and zz specifies a change that does not affect
the product documentation.
If any number, other than 0 is programmed into this parameter the user security is applied so that no parameters except Pr 11.44 can be adjusted with
the LED keypad. When this parameter is read via an LED keypad and security is locked it appears as zero. The security code can be modified via
serial comms etc. by setting this parameter to the required value, setting Pr 11.44 to 3 and initiating a reset by setting Pr 10.38 to 100. However
security can only be cleared via the LED keypad.
This parameter indicates the continuous industrial current rating of the drive for heavy-duty operation. If this parameter is programmed into the level
two area, the decimal place on the drives four digit display will be adjusted to 1 for drive sizes with current ratings greater than 99.99A.
11.28 Unused parameter
11.29 Software version
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
2111 1
Range 0.00 to 99.99
Update rate N/A
11.30 User security code
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
1 1111
Range 0 to 999
Default 0
Update rate Background
11.31 Unused parameter
11.32 Maximum heavy duty drive current rating
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
2111 1
Range 0.00 to 290.00 A
Update rate N/A
0V
Remote current speed
reference input (A1)
+10V reference output
Not used
+24V output
Not stop
Jog
Not used
Remote speed
reference input
V
_
+
USA
Analog output
(motor speed)
Digital output
(zero speed)
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
+24V
0V
Auto
run
Hand/Off/Auto
switch
H
A
A
Run
H: Contacts made
in 'hand' position
A: Contacts made
in 'auto' position
0V
Remote current speed
reference input (A1)
+10V reference output
Not used
+24V output
Drive enable / reset
Run reverse
Not used
Remote speed
reference input
V
_
+
EUR
Analog output
(motor speed)
Digital output
(zero speed)
T1
T2
T3
T4
B1
B2
B3
B4
B5
B6
B7
+24V
0V
Auto
run
Hand/Off/Auto
switch
H
A
A
Run forward
