Control Techniques Commander SK User Manual

Introduction Parameter x.00
Parameter
description format
Keypad and
display
CT Modbus
RTU
User
programming
CT Soft Menu 0
Advanced parameter
descriptions
Menu 5
Commander SK Advanced User Guide 59
Issue Number: 2 www.controltechniques.com

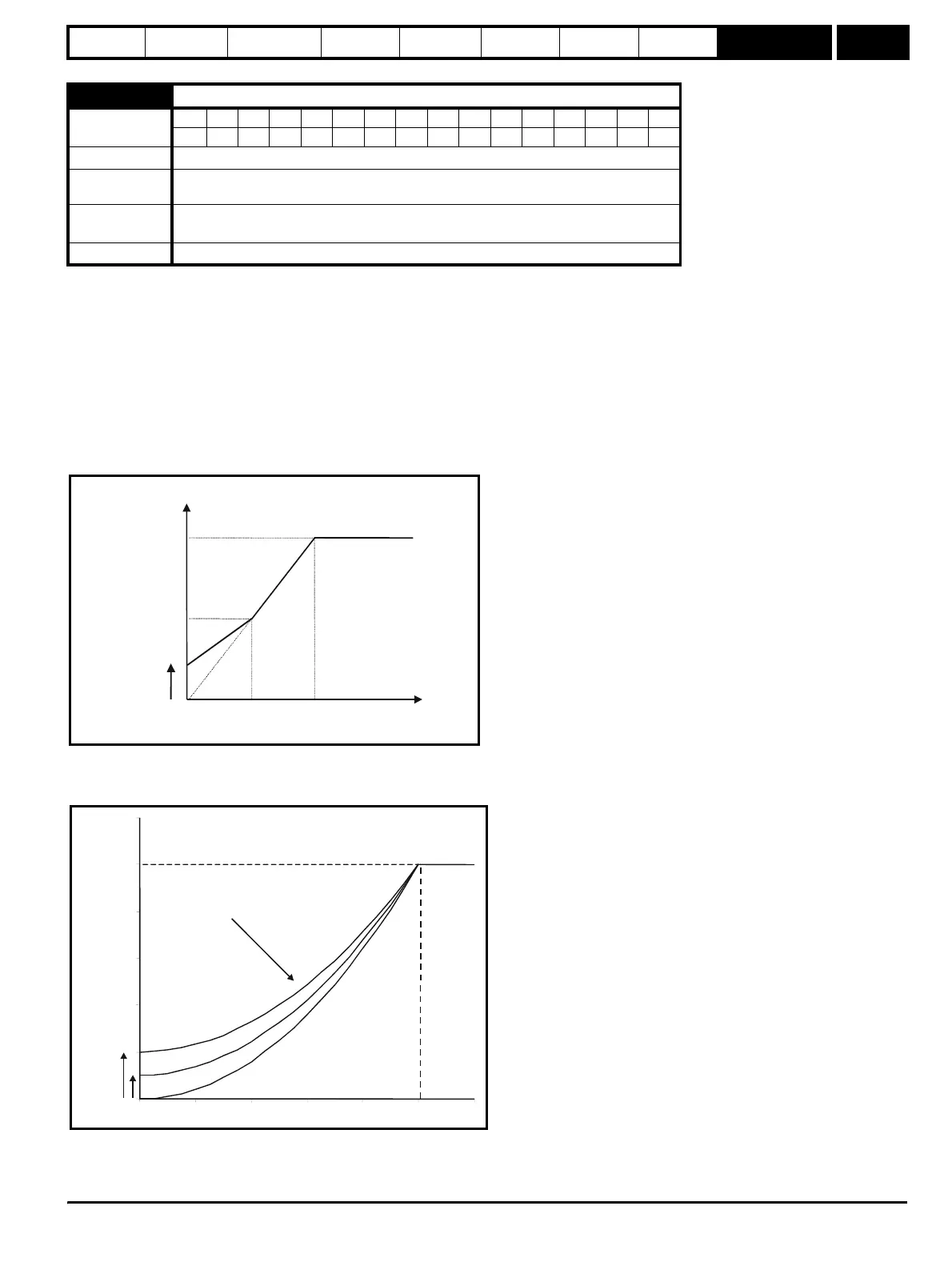

The rated voltage is used in conjunction with the motor rated frequency (Pr 5.06) to define the voltage to frequency characteristic applied to the motor.
The following operating methods selected by Pr 5.14 are used to define the drive frequency to voltage characteristic.
Open-loop vector mode: Ur S, Ur A, Ur or Ur I
A linear characteristic is used from 0Hz to rated frequency, and then a constant voltage above rated frequency. When the drive operates between
rated frequency/50 and rated frequency/4, full vector based stator resistance (Rs) compensation is applied. However there is a delay of 0.5s when the
drive is enabled during which only partial vector based compensation is applied to allow the machine flux to build up. When the drive operates
between rated frequency/4 and rated frequency/2 the Rs compensation is gradually reduced to zero as the frequency increases. For the vector
modes to operate correctly the stator resistance (Pr 5.17), motor rated power factor (Pr 5.10) and voltage offset (Pr 5.24) are all required to be set-up
accurately.
Fixed boost mode: Fd
A linear characteristic is used from 0Hz to rated frequency, and then constant voltage above rated frequency. Low frequency voltage boost as defined
by Pr 5.15 is applied as shown below.
Square law mode: SrE
A square law characteristic is used from 0Hz to rated frequency, and then constant voltage above rated frequency. Low frequency voltage boost
raises the start point of the square law characteristic as shown below.
5.09 Motor rated voltage
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
1 1 111
Range 0 to AC_VOLTAGE_SET_MAX V
Default
200V rating drive: 230V
400V rating drive: EUR: 400V, USA: 460V
Second motor
parameter
Pr 21.09
Update rate 128ms
Voltage
boost Pr
5.15
Output
voltage
Pr
5.09
Pr / 2 5.09
Pr / 2 5.06 Pr 5.06 Output
frequenc
y
O
utput voltage characteristic
Pr 5.09
Pr 5.15
Pr
5
.
06
Pr + [(freq/Pr ) x (Pr - Pr )] 5.15 5.06 5.09 5.15
2
