Setting this parameter and Pr 9.17 to a 1 causes the input sense of the logic functions to be inverted.
Setting this parameter and Pr 9.18 to a 1 causes the output sense from the logic functions to be inverted.

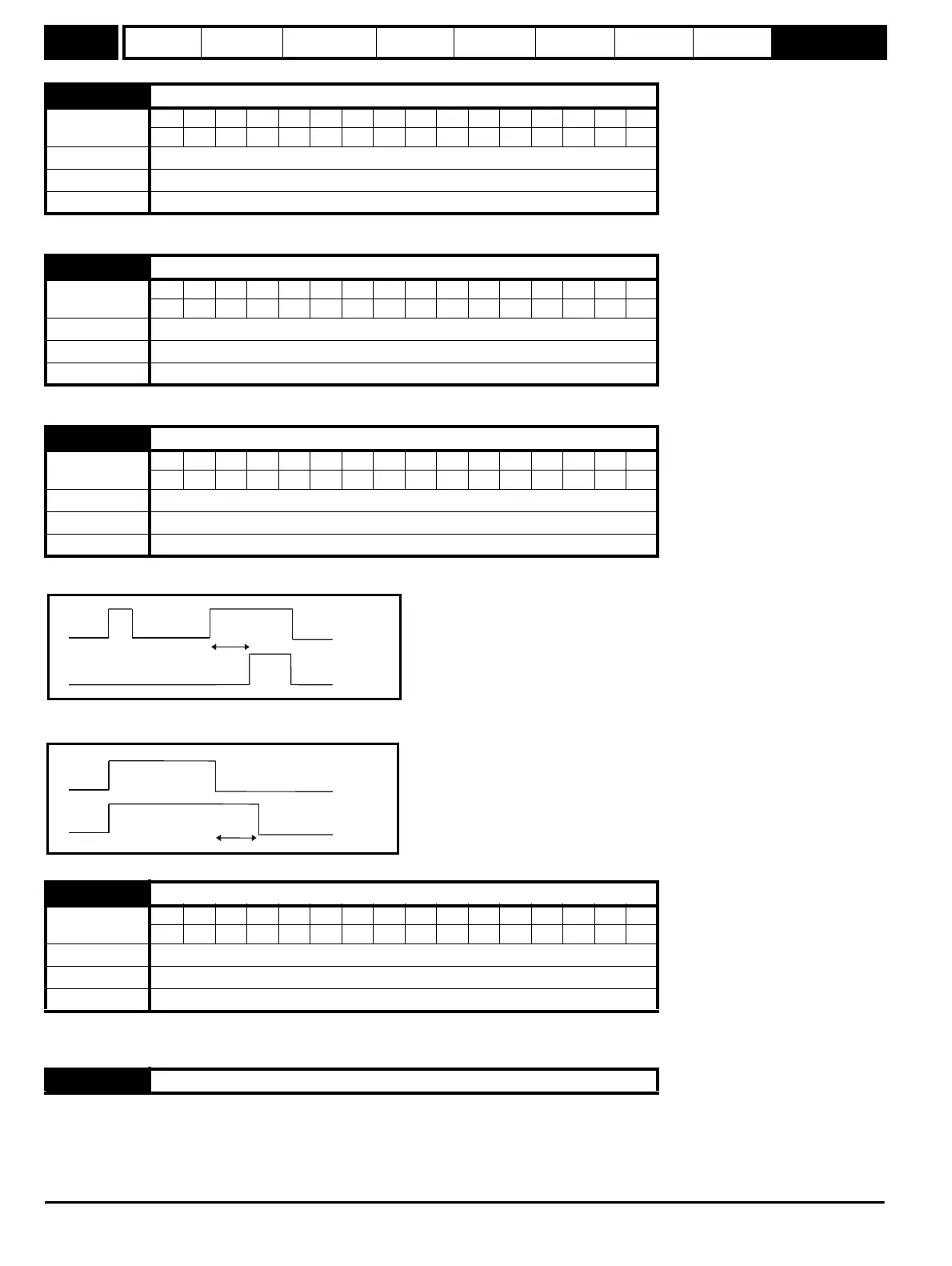

If the delay parameter is positive, the delay ensures that the output does not become active until an active condition has been present at the input for
the delay time as shown below.
If the delay parameter is negative, the delay holds the output active for the delay period after the active condition has been removed as shown below.
Therefore an active input that lasts for as long as the sample time or more will produce an output that lasts at least as long as the delay time.
This destination parameter and Pr 9.20 define the parameters to be controlled by the logic function. Only non-protected bit parameters can be
programmed as a destination. If a invalid parameter is programmed, the output is not routed anywhere.
9.07 Logic function 1 source 2 invert
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range 0 or 1
Default 0
Update rate 21 ms
9.08 Logic function 1 output invert
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range 0 or 1
Default 0
Update rate 21 ms
9.09 Logic function 1 delay
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
111
Range ±25.0 s
Default 0.0
Update rate 21 ms
9.10 Logic function 1 destination
Coding
Bit SP FI DE Txt VM DP ND RA NC NV PT US RW BU PS
2 1111
Range Pr 1.01 to Pr 21.51
Default Pr 0.00
Update rate Read on drive reset
9.11 to 9.13 Unused parameters
Delay
Input
Output
Delay
Input
Output
