138 • SMP Gateway User Manual

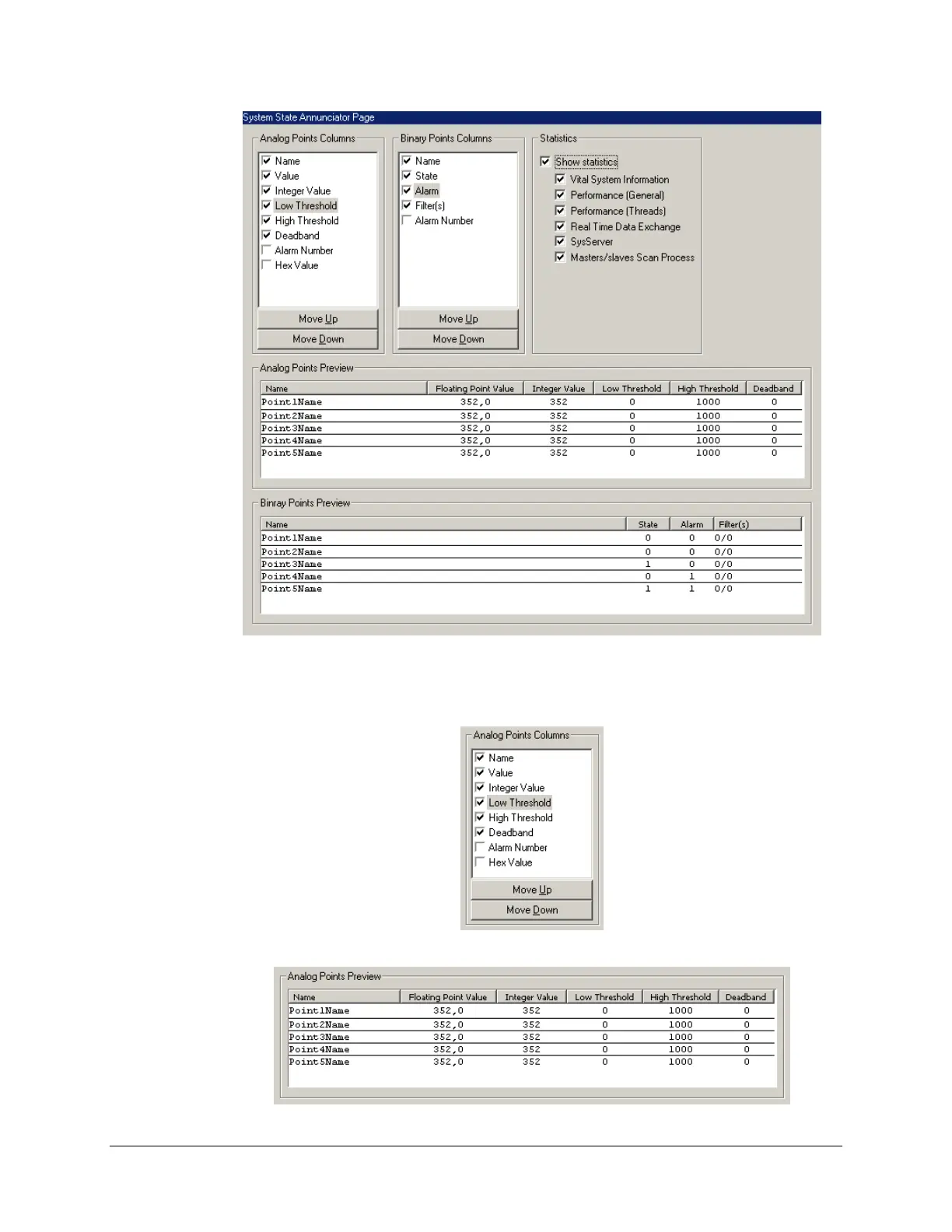

 Under Analog Points Columns, select which columns should be displayed in analog

inputs/outputs lists. You can see the result of your selection under Analog Points Preview.
