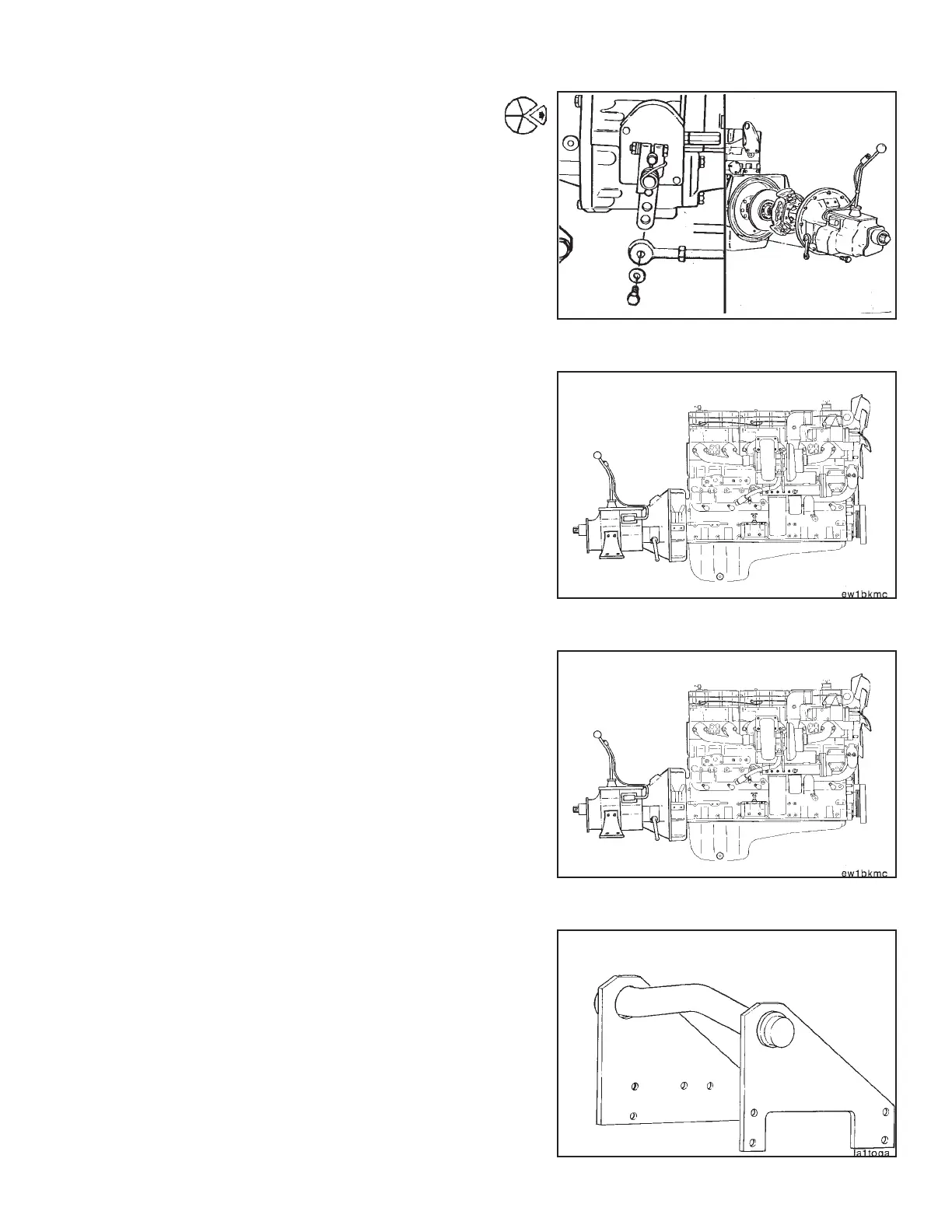

On STC engines, disconnect the throttle linkage from the
fuel pump control lever.
Disconnect the drive units from the flywheel.
NOTE: If the rear engine mounts are attached to the trans-
mission, it may be necessary to remove the engine and the
transmission as an assembly.
Most cab-over configuration vehicles will have the
Cummins factory installed rear engine lifting bracket still
installed.
Installations such as short and medium nose conven-
tional chassis, the factory installed rear engine lifting
bracket are usually removed due to space constraints. In
this case, the service rear engine lifting bracket, Part No.
3823835, will be required to remove the engine from the
chassis.
The service rear engine lifting bracket, Part No. 3823835,
consists of the bracket and eight 3/8-16x1 inch UNC
(Grade 8) mounting capscrews and flat washers.
Use the following steps to install the service rear engine
lifting bracket.
Procedure is also shown in 7-03.
Section 9 - Engine Remove and Install Engine Removal (9-01)
N14 Page 9-5
