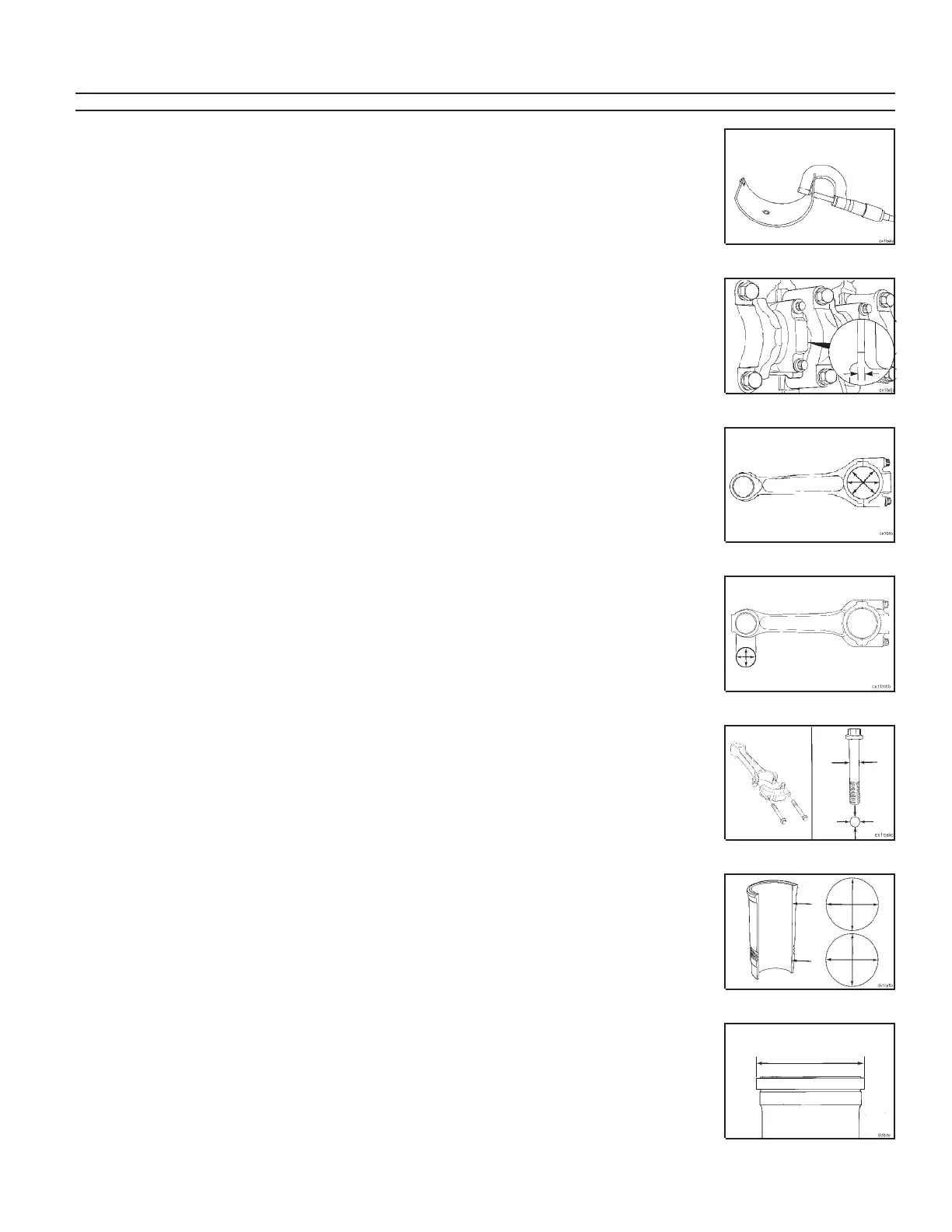

Connecting Rod Bearing Shell Thickness 7-24 2.362 mm MIN 0.0930 in
(Standard Bearings) 2.405 mm MAX 0.0947 in
Connecting Rod Side Clearance 7-26 0.1400 mm MIN 0.0055 in
0.0330 mm MAX 0.0130 in
Connecting Rod Crankshaft Bore Inside 7-26 93.731 mm MIN 3.6902 in
Diameter 93.769 mm MAX 3.6917 in
Connecting Rod Piston Pin Bushing 7-26 63.525 mm MIN 2.5010 in
Inside Diameter 63.556 mm MAX 2.5022 in
Connecting Rod Capscrew Outside
Diameter 7-26 14.50 mm MIN 0.571 in
14.99 mm MAX 0.590 in
Cylinder Liner Inside Diameter 7-27 136.694 mm MIN 5.4998 in
139.827 mm MAX 5.5050 in
Cylinder Liner Flange Outside Diameter 7-27 166.72 mm MIN 6.564 in
(Standard Liner) 166.77 mm MAX 6.566 in
Section V - Engine Component Specifications Component Specifications and Torque Values
N14 Page V-29
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
