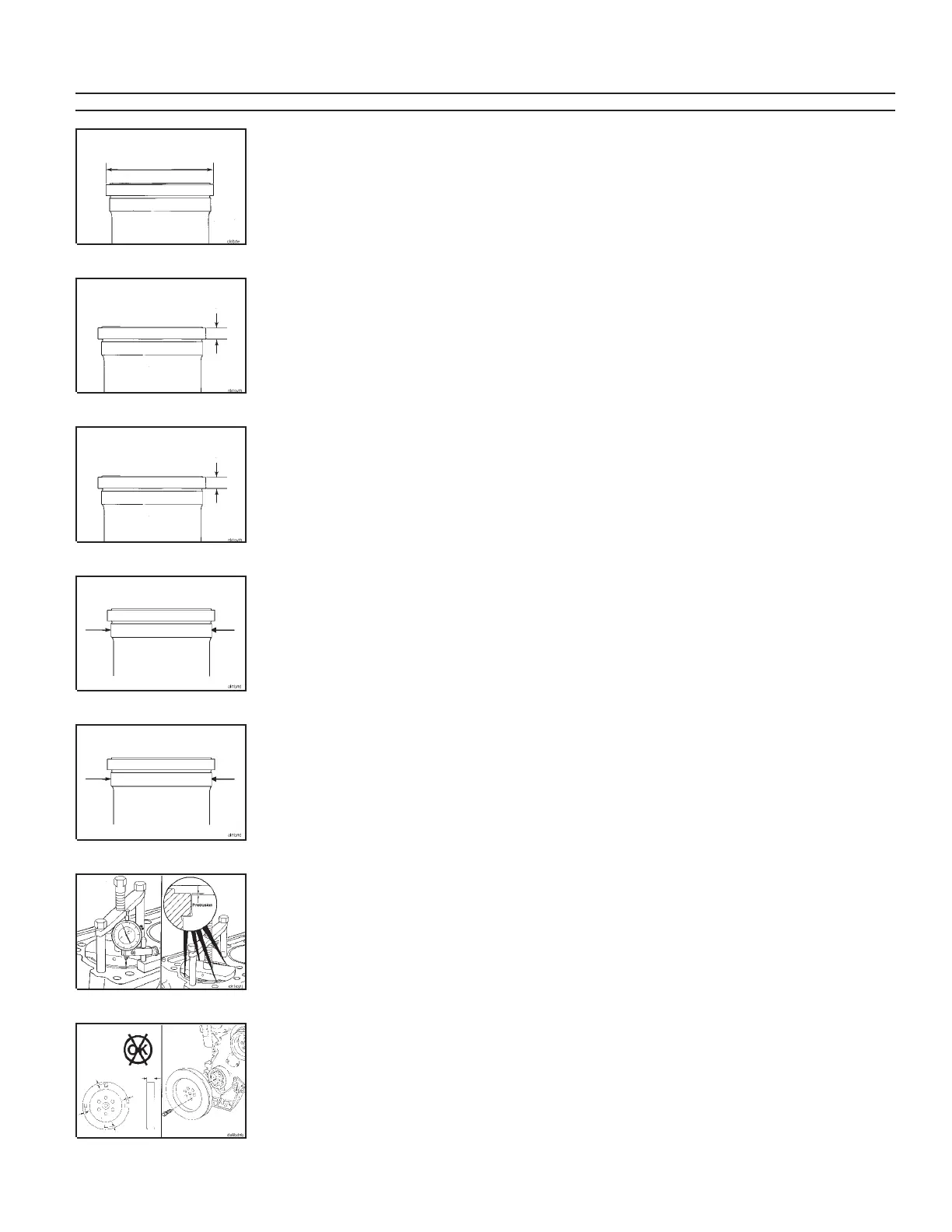

Cylinder Liner Flange Outside Diameter 7-27 167.74 mm MIN 6.584 in
(Oversize Liner) 167.79 mm MAX 6.586 in
Cylinder Liner Flange Thickness 7-27 9.01 mm MIN 0.355 in
(Standard Liner) 9.04 mm MAX 0.356 in
Cylinder Liner Flange Thickness (Oversize
Liner) 7-27 9.52 mm MIN 0.375 in
9.55 mm MAX 0.376 in
Cylinder Liner Lower Press Fit Outside 7-27 159.91 mm MIN 6.296 in
Diameter (Standard Liner) 159.96 mm MAX 6.298 in
Cylinder Liner Lower Press Fit Outside 7-27 160.93 mm MIN 6.336 in
Diameter (Oversize Liner) 160.98 mm MAX 6.338 in
Cylinder Liner Protrusion 7-16 0.10 mm MIN 0.004 in
0.18 mm MAX 0.007 in
Vibration Damper Thickness Variation 7-32 0.25 mm MAX 0.010 in
Component Specifications and Torque Values Section V - Engine Component Specifications
Page V-30 N14
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
