CUMMINS N14 - Page 782

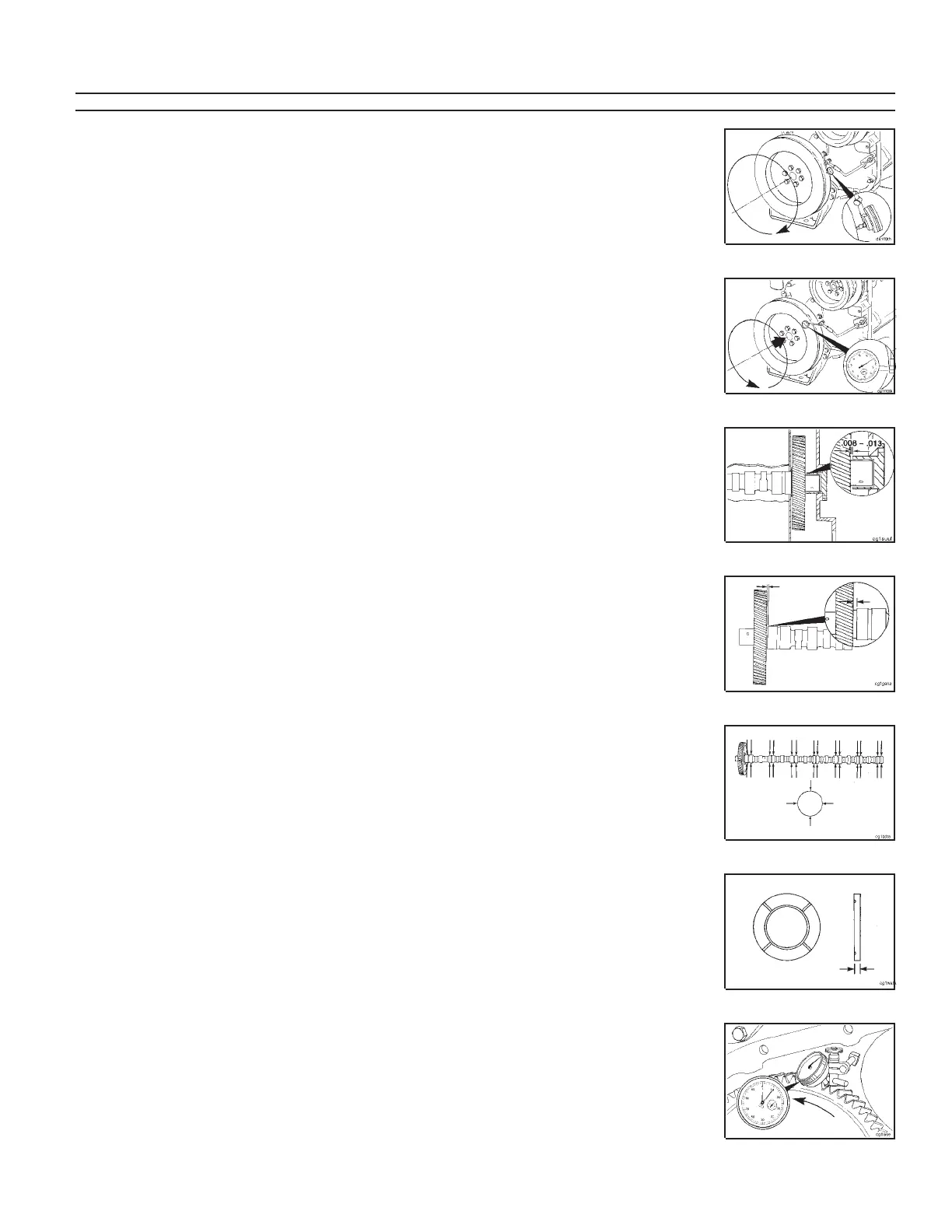

Vibration Damper Eccentricity TIR 7-32 0.10 mm MAX 0.004 in
(Per 25.4 mm [1.0 in] Damper Outside
Diameter)
Vibration Damper Face Alignment
(Wobble) TIR 7-32 0.18 mm MAX 0.007 in
(Per 25.4 mm [1.0 in] Damper Radius)
Camshaft Bearing Support Thrust Face to 7-35 0.20 mm MIN 0.008 in
Camshaft Gear Clearance 0.33 mm MAX 0.013 in
Camshaft Gear to Camshaft Shoulder
Clearance 7-39 0.13 mm MAX 0.005 in
Camshaft Bushing Journal Outside
Diameter 7-39 63.37 mm MIN 2.495 in
63.42 mm MAX 2.497 in
Camshaft Thrust Washer Thickness 7-39 2.29 mm MIN 0.090 in
2.49 mm MAX 0.098 in
Camshaft Gear to Crankshaft Gear
Backlash 7-39 0.05 mm MIN 0.002 in
0.50 mm MAX 0.020 in
Section V - Engine Component Specifications Component Specifications and Torque Values
N14 Page V-31
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
