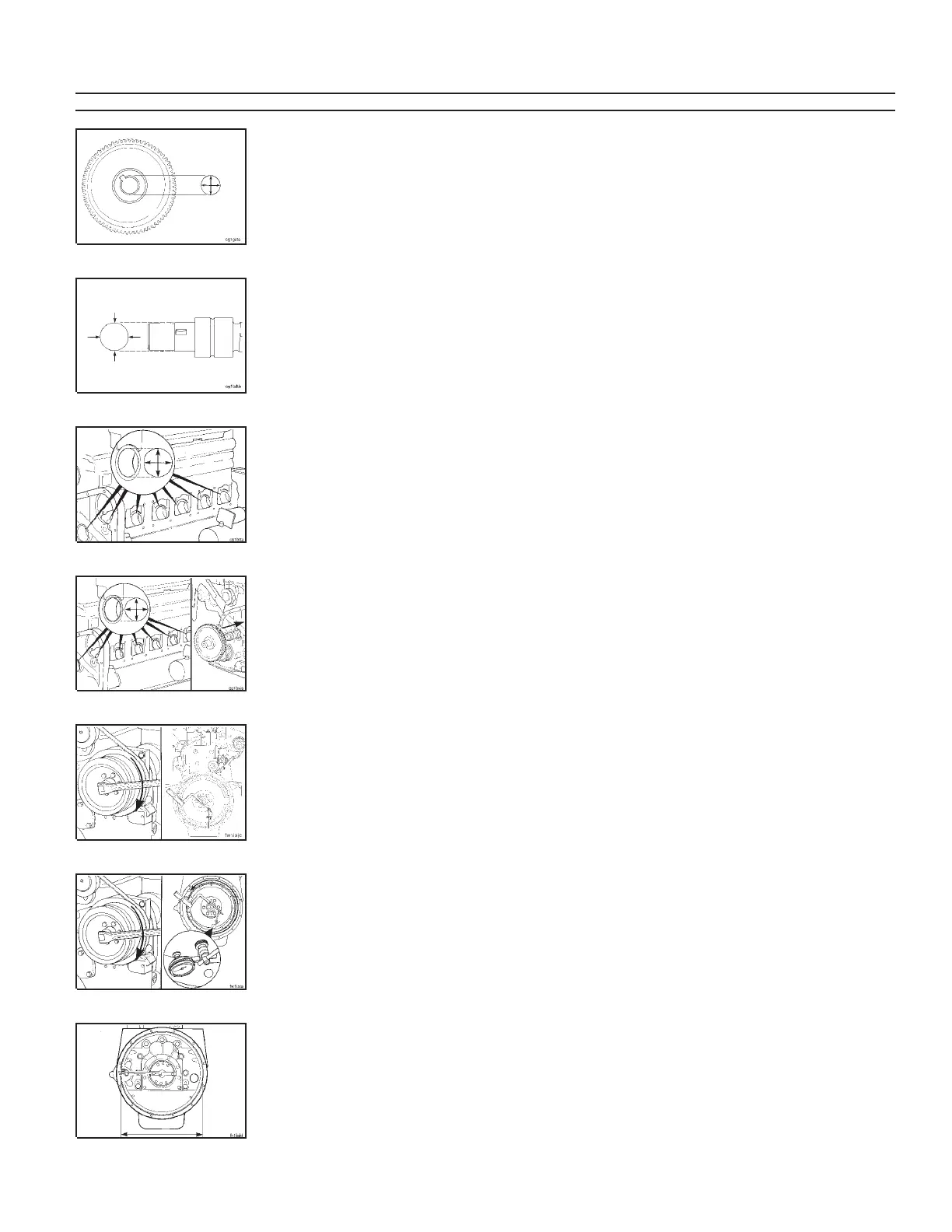

CUMMINS N14 - Page 783

Camshaft Gear Bore Inside Diameter 7-40 45.662 mm MIN 1.7977 in
45.682 mm MAX 1.7985 in
Camshaft Gear Press Fit Area Outside
Diameter 7-40 45.733 mm MIN 1.8005 in
45.745 mm MAX 1.8010 in
Camshaft Bore Inside Diameter 7-41 68.237 mm MIN 2.6865 in
68.262 mm MAX 2.6875 in
Camshaft Bushing Installed Inside
Diameter 7-41 63.457 mm MIN 2.4983 in
63.558 mm MAX 2.5023 in
Flywheel Bore Runout TIR 7-42 0.127 mm MAX 0.005 in
Flywheel Face Runout
203 mm Radius, 8 in Radius 7-42 0.203 mm MAX 0.008 in
254 mm Radius, 10 in Radius 0.254 mm MAX 0.010 in
305 mm Radius, 12 in Radius 0.305 mm MAX 0.012 in
356 mm Radius, 14 in Radius 0.356 mm MAX 0.014 in
406 mm Radius, 16 in Radius 0.406 mm MAX 0.016 in
Flywheel Housing Bore Alignment TIR
SAE 00 7-44 0.30 mm MAX 0.012 in
SAE 0 0.25 mm MAX 0.010 in
SAE 1/2 0.25 mm MAX 0.010 in
SAE 1 0.20 mm MAX 0.008 in
SAE 2 0.20 mm MAX 0.008 in
SAE 3 0.20 mm MAX 0.008 in
Component Specifications and Torque Values Section V - Engine Component Specifications
Page V-32 N14
Component or Assembly (Procedure) Ref.No./Steps Metric U.S.
