Danfoss Turbocor VTT Series - Figure 121 - Stator Temperature Sensor Feed through Connector; Figure 122 - High and Low Pressure;Temperature Sensors; High and Low Pressure Temperature Sensors; Table 27 - Stator Temperature Sensor Feed through Torque Specifications

101 of 165
M-SV-VT-001-EN Rev. A
Compressor Components

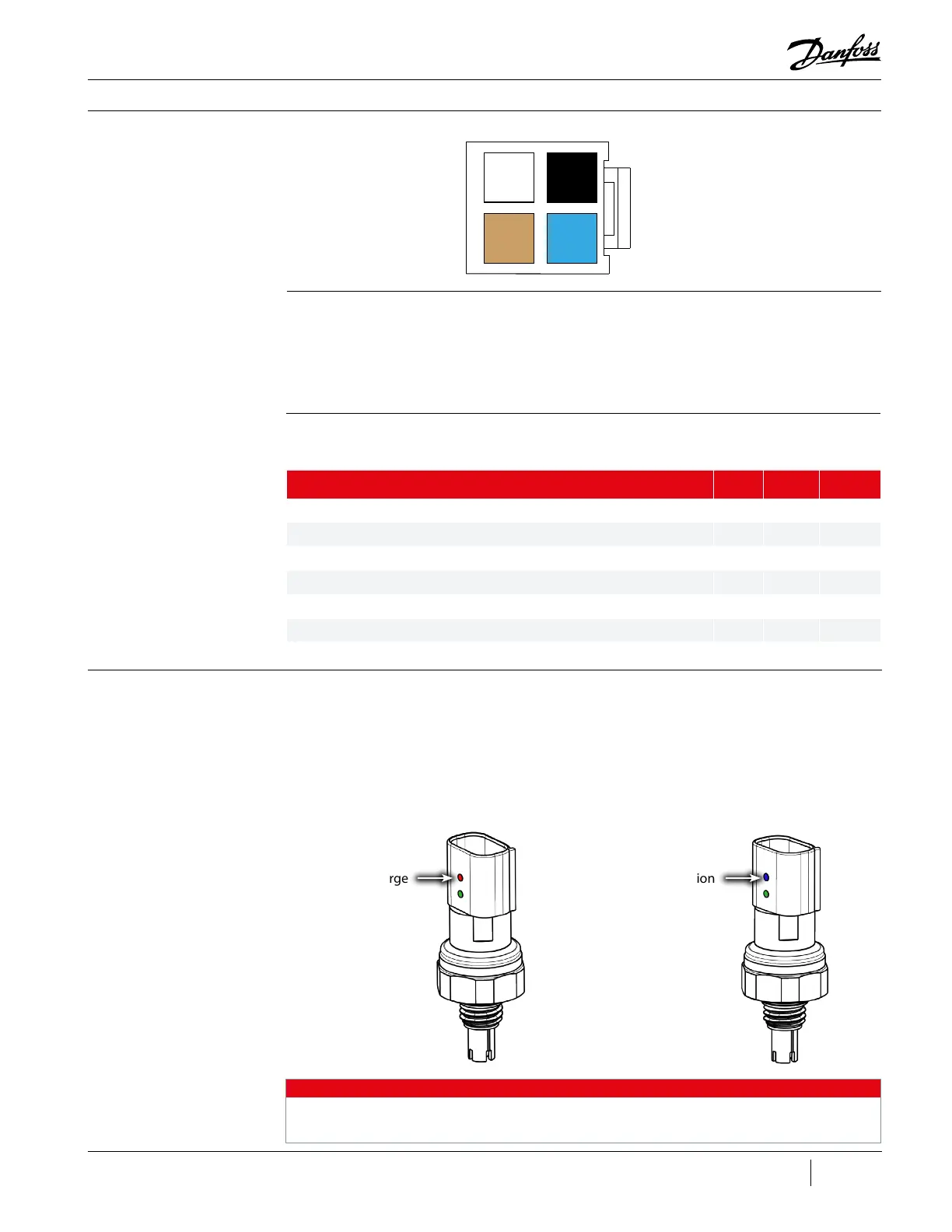

Figure 121 - Stator
Temperature Sensor Feed
Through Connector
2 4
1 3
Running Check
1. Before starting the compressor, with the power on, using the SMT, verify Stator temperature
reading is an acceptable value.
2. While the compressor is running, verify the Stator temperature fluctuates to expected values
during operation.
Table 27 - Stator
Temperature Sensor
Feed Through Torque
Specications
Description Nm Ft.Lb. In.Lb.
Power Cover, SHCS, M5x16 6 - 53
Service Side Cover, SHCS, M5x16 6 - 53
Power Cable Nut, Brass M10x1.5 10 8 89
Service Electronics Assembly fasteners 6 - 53
Service Electronics ground wires at left and 250 VDC ground wire at right 6 - 53
Stator Temperature Sensor Feed Through, SHCS, M5x20 6 - 53
3.7.1.13 High and Low
Pressure Temperature
Sensors
The high and low pressure temperature sensors (Figure 122 (High and Low Pressure Temperature
Sensors)) are used to signal the operating pressures and temperatures at the suction and discharge
ports to the CCM. These values are used to calculate pressure ratios and saturated temperatures. The
high and low pressure temperature sensors are located just behind the suction and discharge anges.
Refer to Figures 123 (Suction Temperature Sensor Location) and 124 (Discharge Temperature Sensor
Location) for further details on the exact locations.
Figure 122 - High and Low
Pressure/Temperature
Sensors
Red Dot = Discharge
Blue Dot = Suction
NOTE
The “green” dot denotes R1234ze compatibility. Early versions of the sensors may contain only the
“red” and “blue” identiers.
3.7.1.12.3 Torque
Specications
