Danfoss Turbocor VTT Series - Figure 100 - Rear Bearing Sensor Connections; Removal and Installation

88 of 165 M-SV-VT-001-EN Rev. A
3.7.1.8.1 Removal and
Installation
Removal:
1. Isolate the Compressor power as described in the “Electrical Isolation of the Compressor/VFD”
section of this manual.
2. Remove the Service Side Cover.
3. Remove the 9-pin connector from J10 on the CCM Board.
4. Remove the Molex connector from J1 on the CCM Board.
5. Twist and pull to remove the sensor cable connection from the feed through.
Compressor Components

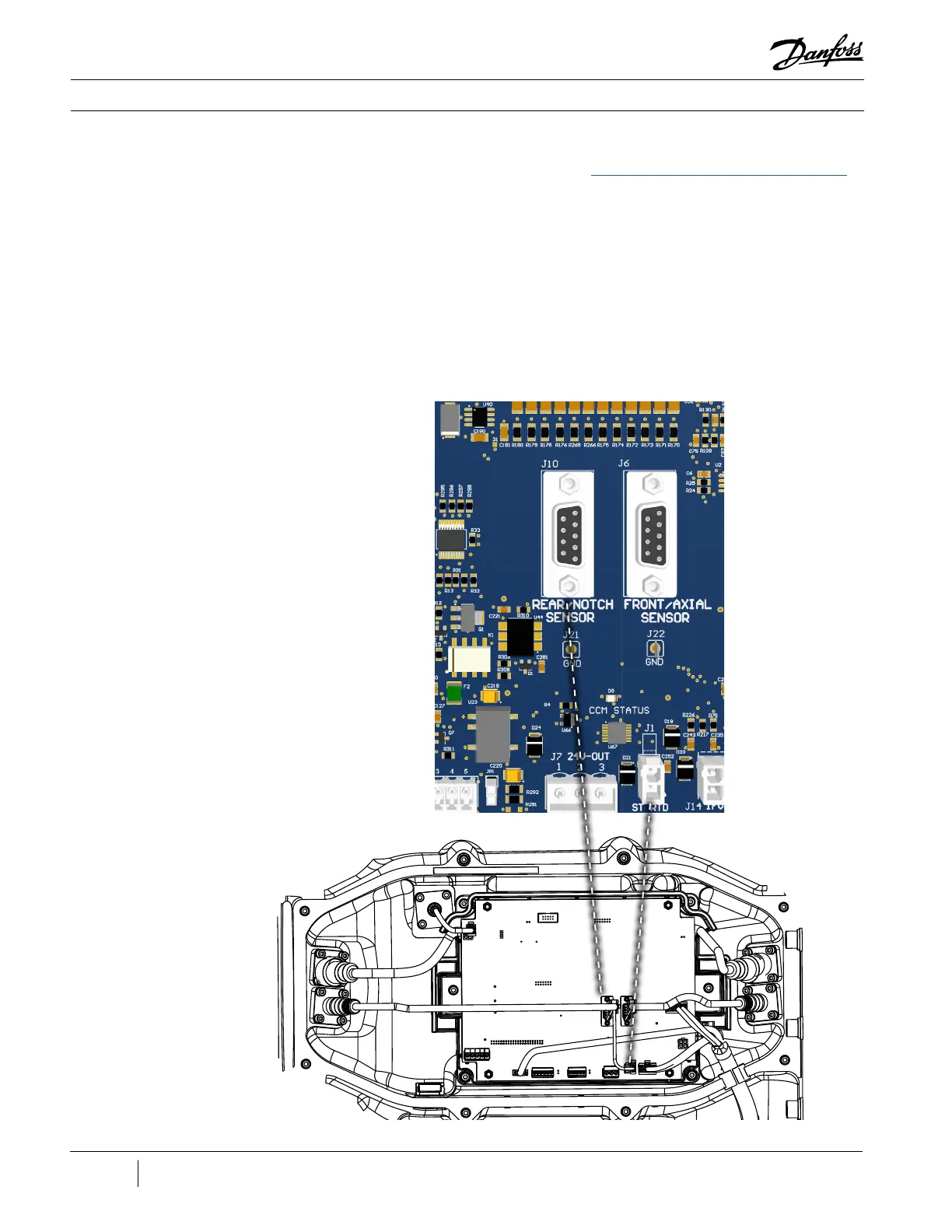

Figure 100 - Rear Bearing
Sensor Connections
