Appendix B: Special Tooling Specications

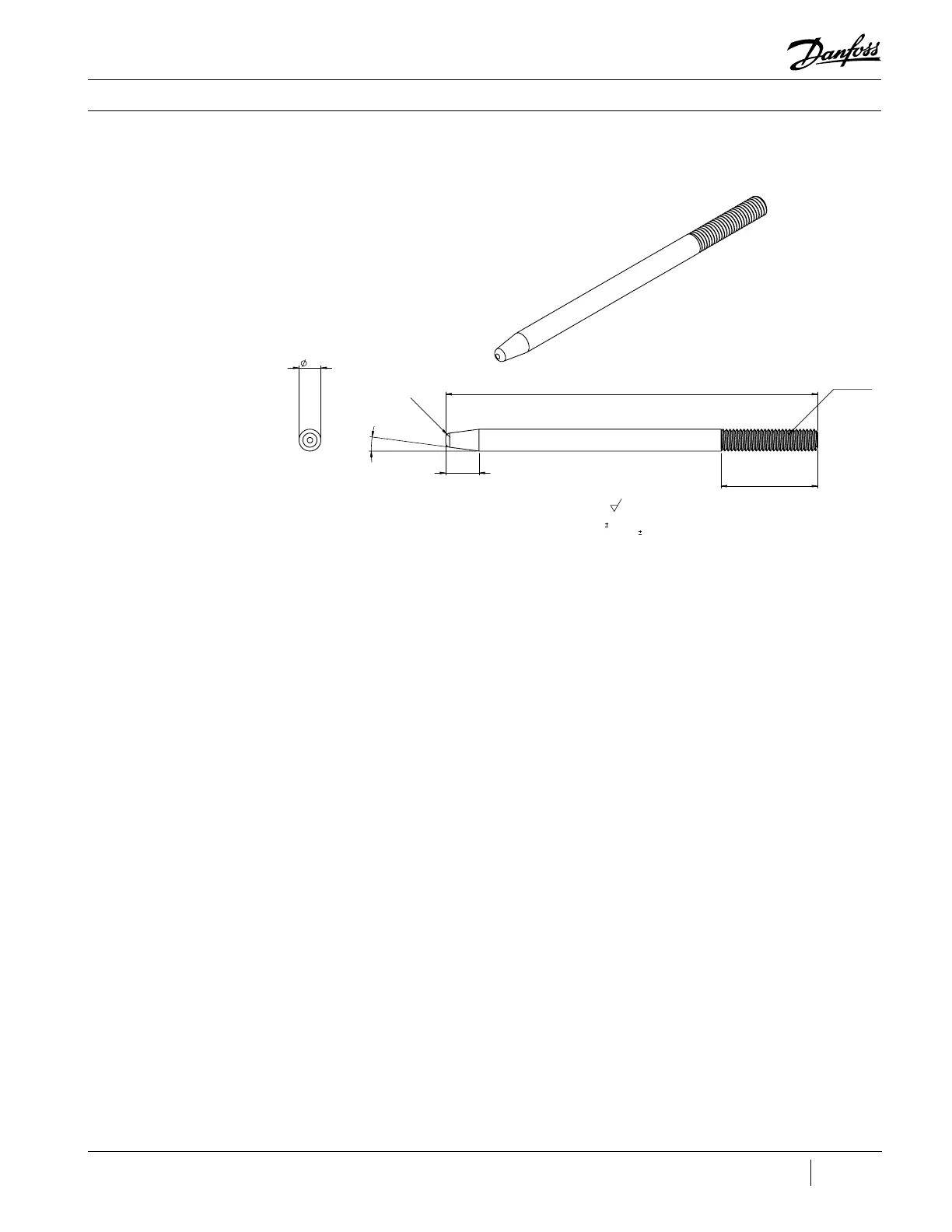

Figure B4 - Thrust Disk Alignment Pin
5.0
85.0
22.1
R1.0
7.5°
7.6 (REF.)
Ø5.0 x 0.8
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
6.4
TOLERANCES:
WHOLE No.s: 0.5
ONE DECIMAL PLACE: 0.1
2 DECIMAL PLACES: 0.05
ANGULAR: 0.5
