Compressor Components
24. Remove the “T”- Spacer.
25. Install a nylon shaft protector and cap over the end of the compressor shaft. Refer to the “Volute
Assembly Sleeve” example in Appendix B. This is also shown in Figure 134 (Nylon Shaft Protector
and Cap).
Figure 136 - Nylon Shaft
Protector and Cap

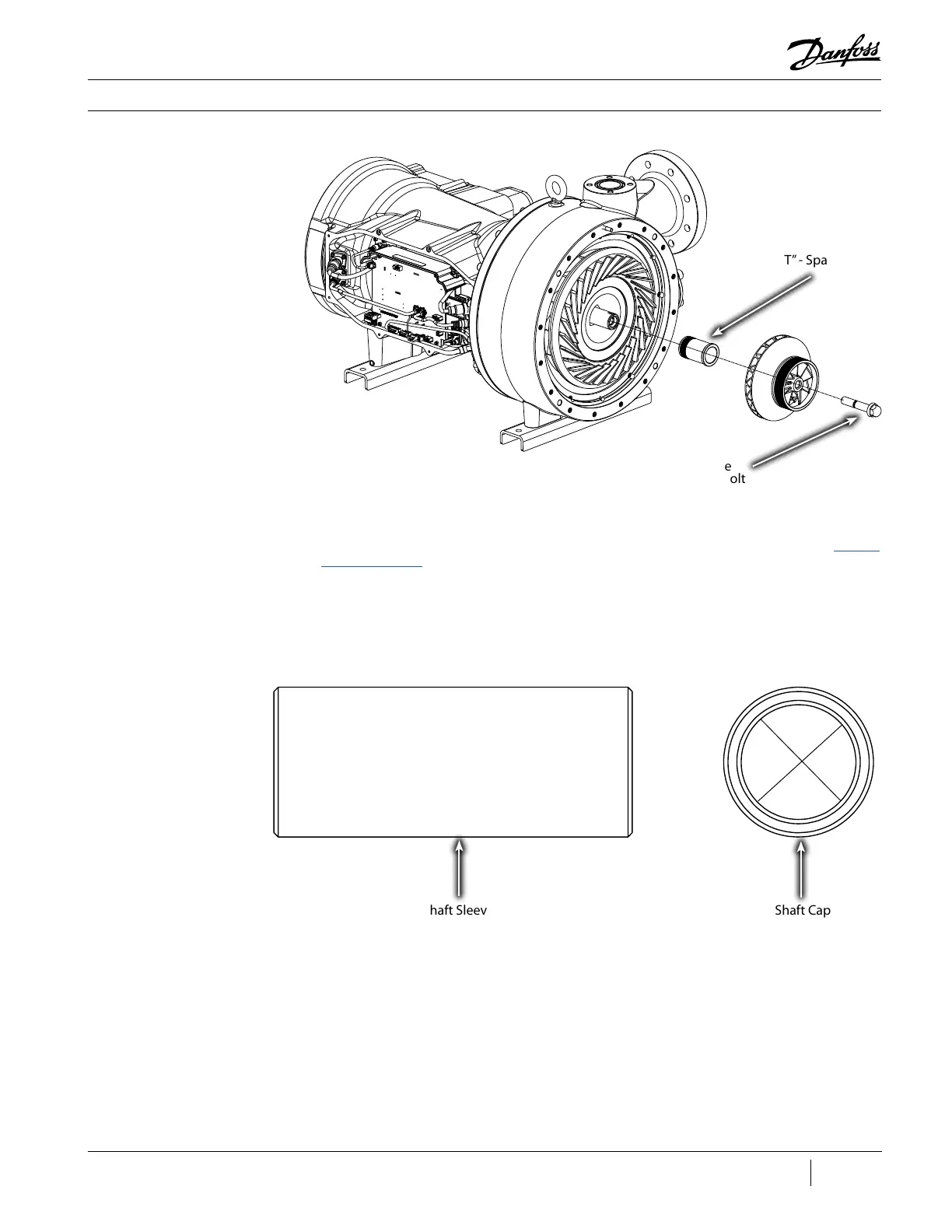

Figure 135 - First Stage
Impeller Removal
“T” - Spacer
First Stage
Impeller Bolt
Shaft CapShaft Sleeve
